How to Fix a Water Valve Failure on a Thetford Aqua Magic Toilet: Step-by-Step Tutorial

How to Fix a Water Valve Failure on a Thetford Aqua Magic Toilet: Step-by-Step Tutorial

Posted by Dave on Sep 12th 2025

Thetford Aqua Magic toilets are reliable and widely used in RVs, but one of the most common issues owners face is a water valve failure. This problem can show up as constant dripping, a bowl that keeps filling, or water that won’t shut off completely. Luckily, fixing it is a straightforward DIY job with a few tools and a replacement valve kit. Here’s how to do it:

Tools & Parts You’ll Need

Step 1: Turn Off the Water Supply

Before you touch anything, shut off your RV’s water pump and disconnect the city water hookup. Flush the toilet to relieve any remaining pressure. Keep a towel nearby to absorb excess water.

Step 2: Access the Valve

The water valve is usually located on the back side of the toilet where the water line connects. You’ll need to:

  1. Remove the water supply line from the toilet using a wrench or pliers.

  2. Depending on your model, you may need to unscrew a cover plate or side panel to expose the valve.

Step 3: Remove the Old Valve

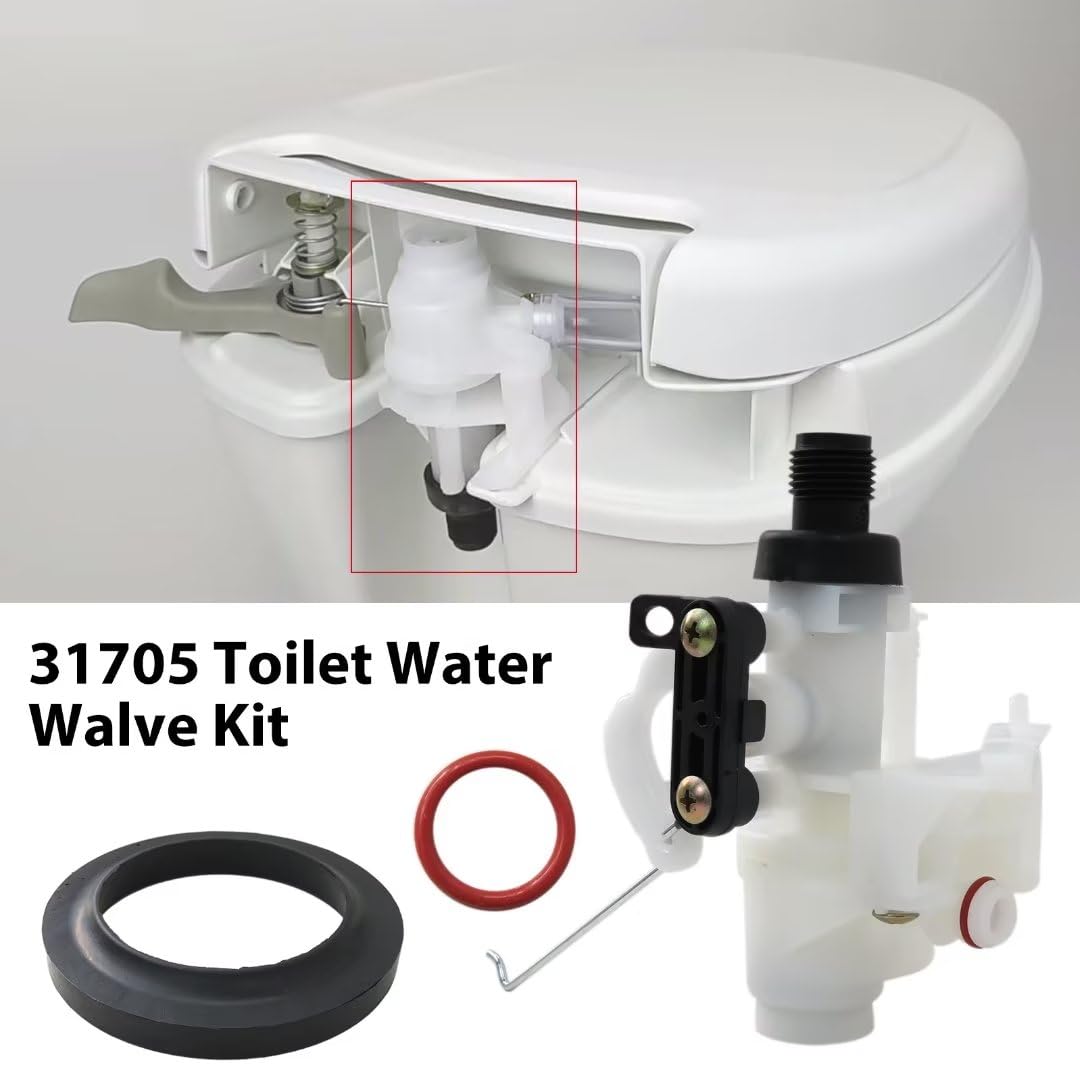

  1. Locate the water valve (a small plastic assembly connected to the flush pedal mechanism).

  2. Carefully disconnect the linkage or spring that connects the flush pedal to the valve.

  3. Unscrew or unclip the valve assembly from the toilet body.

  4. Remove any old seals or washers—inspect for cracks or buildup.

Step 4: Install the New Valve

  1. Position the replacement valve in place of the old one.

  2. Reconnect the flush pedal linkage or spring.

  3. Tighten any screws or clips securely.

  4. Reattach the water supply line to the valve.

Pro Tip: Lubricate the O-rings or seals lightly with plumber’s grease before installation to ensure a good fit.

Step 5: Test the Toilet

  1. Turn the water supply back on.

  2. Flush the toilet several times to check for leaks and smooth operation.

  3. Inspect around the valve and base of the toilet for any signs of dripping.

Step 6: Clean Up & Final Checks

  • Wipe down the area.

  • Make sure the flush pedal feels responsive.

  • Keep an eye on the valve over the next few uses to confirm the issue is resolved.

Final Thoughts

Replacing the water valve on a Thetford Aqua Magic toilet is one of the most effective fixes you can do to keep your RV bathroom trouble-free. The whole repair usually takes less than an hour and can save you from wasting water—or dealing with messy leaks—on the road.

If you notice your toilet still has issues after replacing the valve, the problem may lie with the flush mechanism or the waste ball seal. But in most cases, swapping the valve does the trick.

!
