Dometic 385318162 Flush Ball, Shaft, Cartridge Kit for Traveler Lite 111, Traveler 511H, 510+, 510PS, 511PS, 2010, 2011 and VacuFlush Series

Dometic 385318162 Flush Ball, Shaft & Cartridge Kit

OEM Replacement Kit for Traveler Lite 111, Traveler 500 Series, 2010, 2011 and VacuFlush Series Toilets

Restore smooth, leak-free flushing performance with the Dometic 385318162 Flush Ball, Shaft, and Cartridge Kit—the genuine OEM replacement assembly for Traveler Lite 111 and compatible Dometic VacuFlush toilets. If your toilet bowl won’t hold water, leaks around the flush ball area, or the flush ball no longer moves smoothly, this kit provides the complete fix.

Features & Benefits

• OEM Dometic/Sealand replacement for flush ball, shaft, and cartridge
• Restores proper sealing so the bowl holds water between flushes
• Eliminates odor leaks caused by worn or damaged ball assemblies
• Ensures smooth flush ball movement and correct blade alignment
• Includes preassembled components for easier installation
• Chemical-resistant, long-life construction designed for marine and RV sanitation systems

Fits These Models

Compatible with:

• Dometic Traveler Lite 111
• Dometic Traveler 511H, 510+, 510PS, 511PS, 2010, 2011
• Dometic VacuFlush Series Toilets 168, 506+, 508+, 509+, 547+, 548+, 706, 806, 808, 847, 848, 1006, 1008, 1047, 1048, 1049, 1106

Always verify your model number, as VacuFlush systems use several variations.

Common Issues Solved

Replacing the 385318162 kit can correct:

• Bowl water not holding due to a worn or cracked flush ball
• Odors escaping from the toilet base
• Sticking or grinding flush ball movement
• Water leakage around the blade or ball mechanism
• Cartridge failure or internal wear that prevents proper sealing

Replaces / Also Known As

• Dometic 385318162
• Sealand Flush Ball Cartridge Kit
• RV/Marine Toilet Flush Ball Replacement
• Traveler Lite 111 Ball & Shaft Assembly
• VacuFlush Ball/Cartridge Assembly

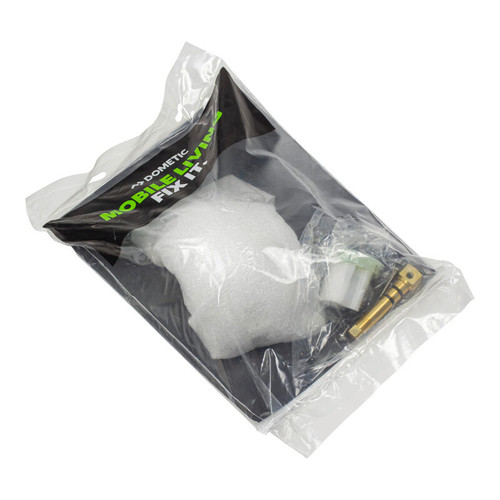

What’s Included

• Flush ball
• Shaft
• Cartridge housing
• Integrated seals (pre-installed)
• Includes 385236096 Spring Cartridge Kit
• Ready-to-install OEM assembly

Installation Overview

1. Turn off water supply and flush the toilet to empty the bowl.
2. Remove the toilet or base assembly for access (varies by model).
3. Remove the old flush ball/cartridge assembly.
4. Clean the sealing surface thoroughly.
5. Install the new cartridge assembly and secure it in place.
6. Reinstall toilet components, reconnect water, and test operation.

Typical installation time: 25–45 minutes, depending on access.

Frequently Asked Questions

Q: My bowl slowly drains water—will this fix it?
Yes. A worn flush ball or cartridge is the most common cause of water not staying in the bowl.

Q: Does this include the bowl seal?
The primary sealing surfaces are included on the cartridge assembly; if your upper bowl seal is worn, you may want to replace that separately.

Q: Does this fit all VacuFlush toilets?
Not all. VacuFlush models use different assemblies—verify your model uses the 385318162 cartridge design.

Q: Is this an OEM part?
Yes, this is the genuine Dometic/Sealand factory replacement.

Q: Do I need to remove the toilet to install this?
Often yes for VacuFlush systems, but Traveler Lite installations may allow access from the base.
