Thetford Aqua-Magic® IV · High & Low, Hand Flush · Fresh Water Flush

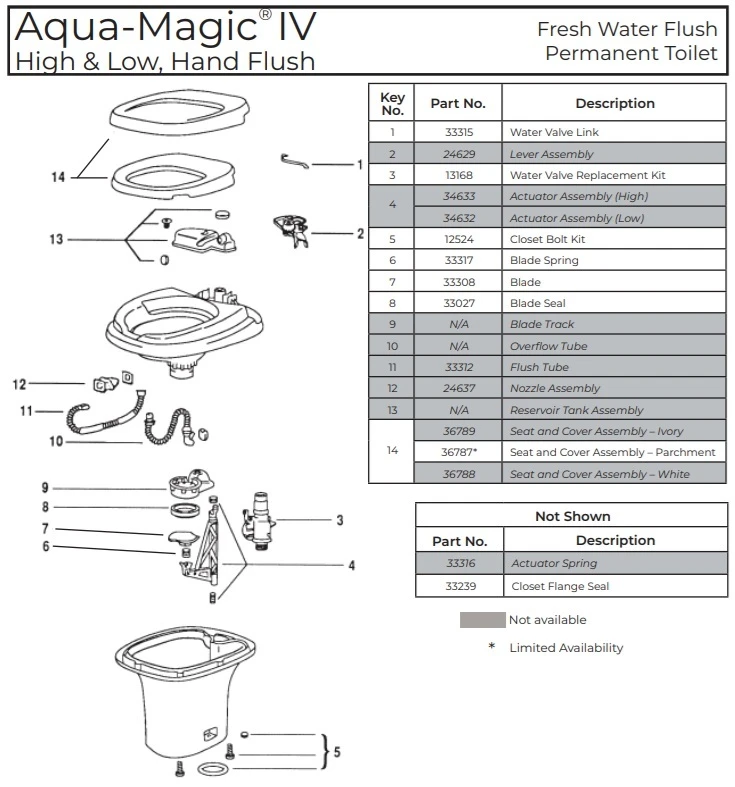

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Every marker matches the Key No. on the original Thetford parts sheet. On a phone, tap "View full-size diagram" to zoom in for a closer look.

View full-size diagram

Shop this part Discontinued

Key No. reference

Matches the table printed on the Thetford diagram.

1

Water Valve Link 33315

Shop →

2

Lever Assembly 24629 — Discontinued

N/A

3

Water Valve Replacement Kit 13168

Shop →

4

Actuator Assembly (High / Low) 34633 / 34632 — Discontinued

N/A

4

Actuator Assembly — High Profile 34633 — Discontinued

N/A

4

Actuator Assembly — Low Profile 34632 — Discontinued

N/A

5

Closet Bolt Kit 12524

Shop →

6

Blade Spring 33317

Shop →

7

Blade 33308 — Discontinued

N/A

8

Blade Seal 33027

Shop →

9

Blade Track N/A — Discontinued

N/A

10

Overflow Tube N/A — Discontinued

N/A

11

Flush Tube 33312

Shop →

12

Nozzle Assembly 24637 — Discontinued

N/A

13

Reservoir Tank Assembly N/A — Discontinued

N/A

14

Seat and Cover Assembly Ivory / Parchment / White — Browse all colors

Shop →

14

Seat and Cover Assembly — Ivory 36789 — Discontinued

N/A

14

Seat and Cover Assembly — Parchment 36787* — Discontinued

N/A

14

Seat and Cover Assembly — White 36788 — Discontinued

N/A

Need help identifying a part? Call 248-993-0724 or email us.
