Thetford Aqua-Magic® Residence · Fresh Water Flush · Permanent Toilet

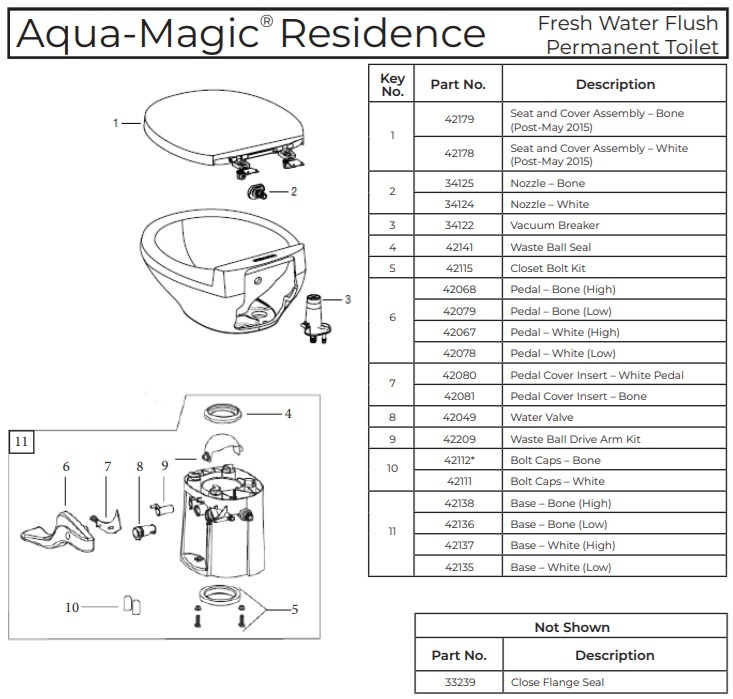

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Every marker matches the Key No. on the original Thetford parts sheet. On a phone, tap "View full-size diagram" to zoom in for a closer look.

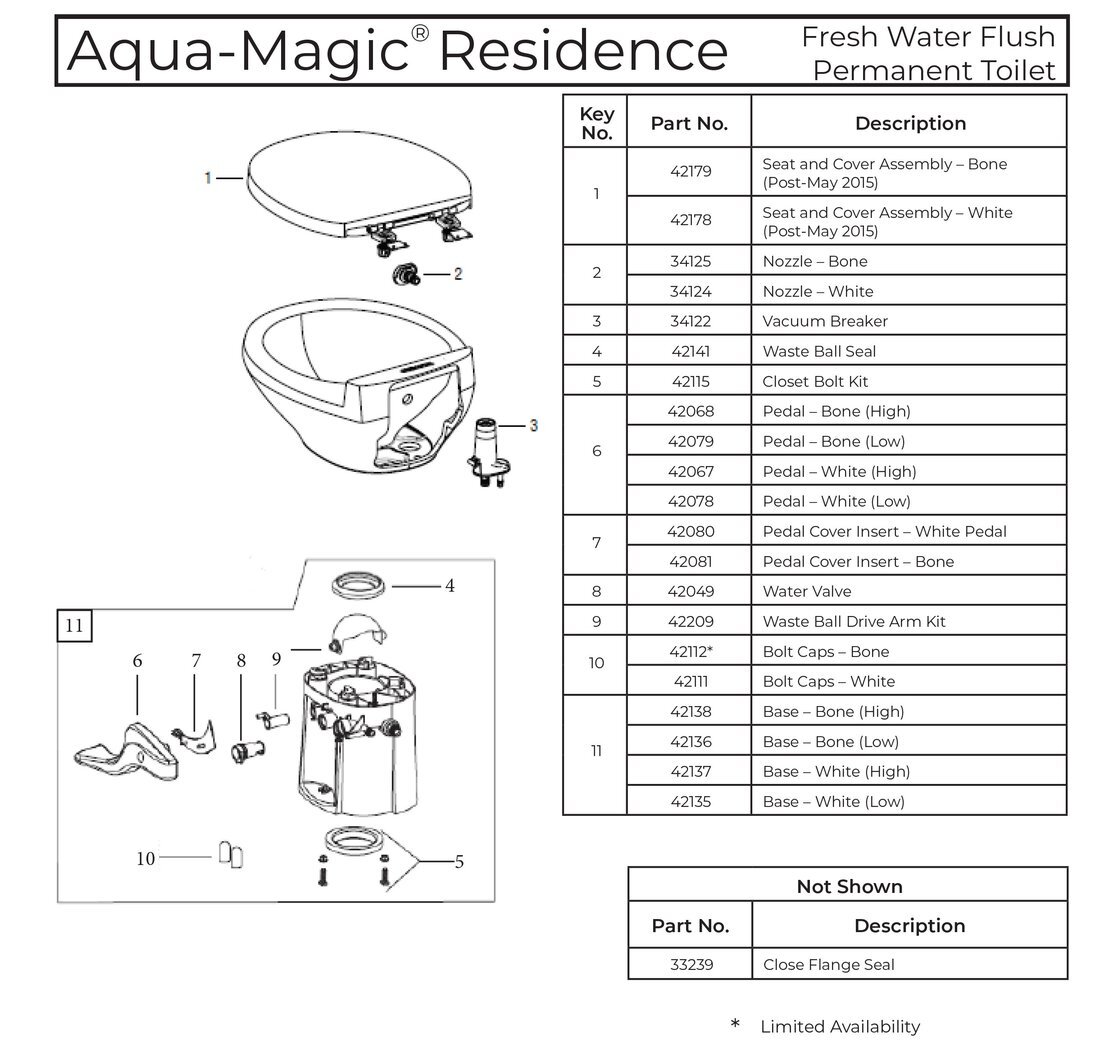

Thetford Aqua-Magic Residence exploded parts diagram
Shop this part Discontinued
Key No. reference
Matches the table printed on the Thetford diagram.
1
Seat and Cover Assembly — Bone (Post-May 2015)
42179
 Shop →
1
Seat and Cover Assembly — White (Post-May 2015)
42178
 Shop →
2
Nozzle — Bone
34125
 Shop →
2
Nozzle — White
34124
 Shop →
3
Vacuum Breaker
34122
 Shop →
4
Waste Ball Seal
42141
 Shop →
5
Closet Bolt Kit
42115
 Shop →
6
Pedal — Bone (High)
42068
 Shop →
6
Pedal — Bone (Low)
42079
 Shop →
6
Pedal — White (High)
42067
 Shop →
6
Pedal — White (Low)
42078
 Shop →
7
Pedal Cover Insert — White Pedal
42080 — Discontinued
 N/A
7
Pedal Cover Insert — Bone
42081 — Discontinued
 N/A
8
Water Valve
42049
 Shop →
9
Waste Ball Drive Arm Kit
42209
 Shop →
10
Bolt Caps — Bone
42112* — Discontinued
 N/A
10
Bolt Caps — White
42111 — Discontinued
 N/A
11
Base — Bone (High)
42138
 Shop →
11
Base — Bone (Low)
42136
 Shop →
11
Base — White (High)
42137
 Shop →
11
Base — White (Low)
42135 — Discontinued
 N/A
Not shown on diagram
NS
Closet Flange Seal
33239
 Shop →

Need help identifying a part? Call 248-993-0724 or email us.

!
