Thetford Aqua-Magic® Style Lite · Fresh Water Flush · Permanent Ceramic Toilet

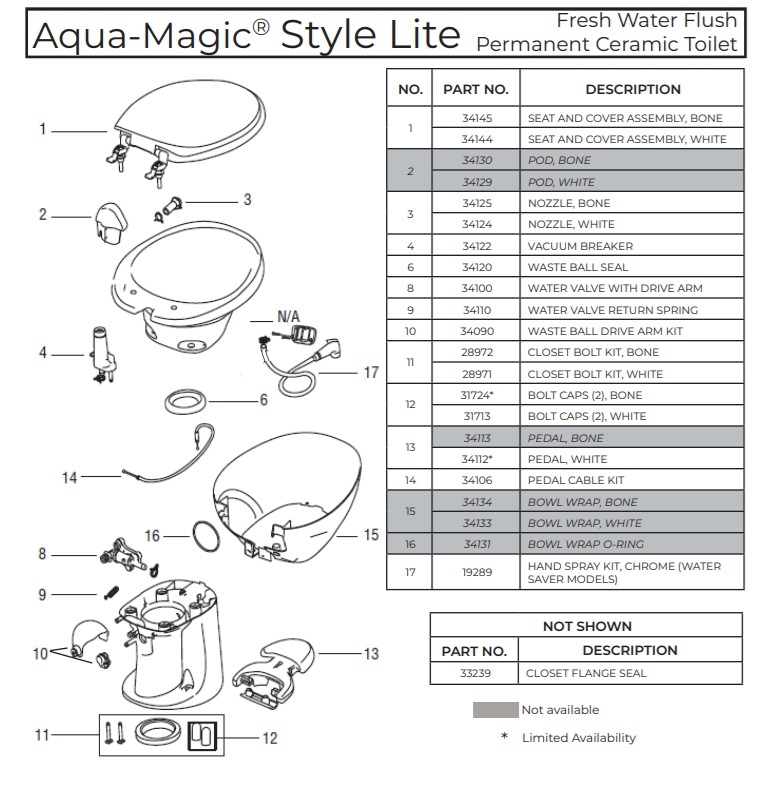

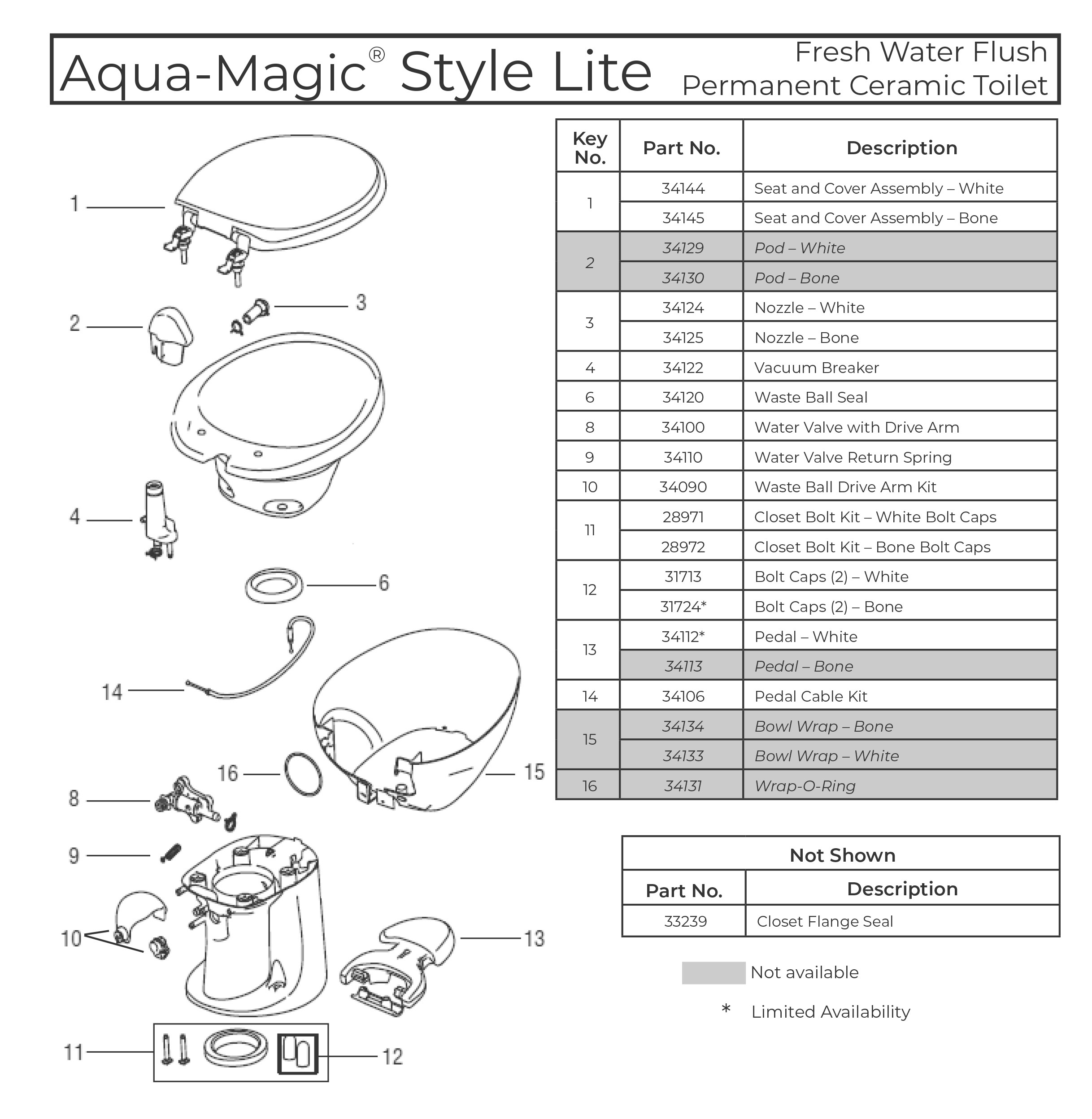

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Every marker matches the Key No. on the original Thetford parts sheet. On a phone, tap "View full-size diagram" to zoom in for a closer look.

View full-size diagram

Shop this part Discontinued

Key No. reference

Matches the table printed on the Thetford diagram.

1

Seat and Cover Assembly — White 34144

Shop →

1

Seat and Cover Assembly — Bone 34145

Shop →

2

Pod — White 34129 — Discontinued

N/A

2

Pod — Bone 34130 — Discontinued

N/A

3

Nozzle — White 34124

Shop →

3

Nozzle — Bone 34125

Shop →

4

Vacuum Breaker 34122

Shop →

6

Waste Ball Seal 34120

Shop →

8

Water Valve with Drive Arm 34100

Shop →

9

Water Valve Return Spring 34110

Shop →

10

Waste Ball Drive Arm Kit 34090

Shop →

11

Closet Bolt Kit — White Bolt Caps 28971

Shop →

11

Closet Bolt Kit — Bone Bolt Caps 28972

Shop →

12

Bolt Caps (2) — White 31713

Shop →

12

Bolt Caps (2) — Bone 31724* — Limited availability

Shop →

13

Pedal — White 34112* — Limited availability

Shop →

13

Pedal — Bone 34113 — Discontinued

N/A

14

Pedal Cable Kit 34106

Shop →

15

Bowl Wrap — Bone 34134 — Discontinued

N/A

15

Bowl Wrap — White 34133 — Discontinued

N/A

16

Wrap-O-Ring 34131 — Discontinued

N/A

Need help identifying a part? Call 248-993-0724 or email us.
