Thetford Aqua-Magic® Style Plus · Fresh Water Flush · Permanent Ceramic Toilet

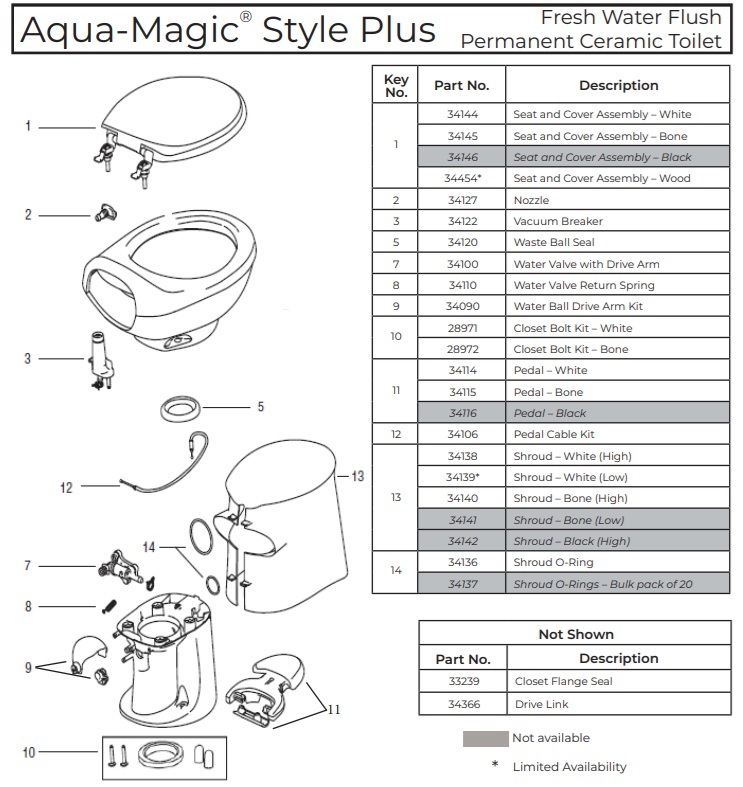

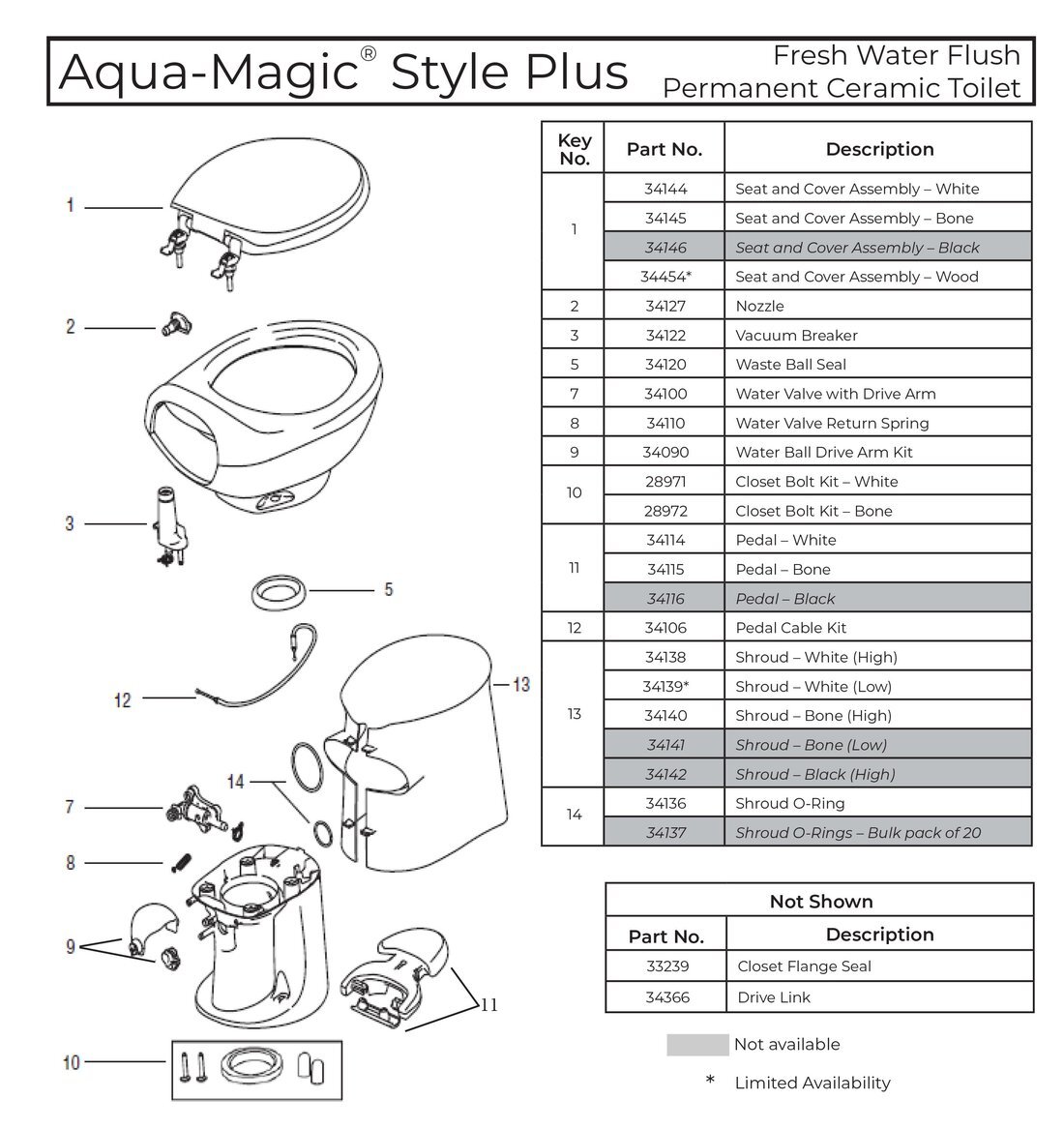

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Every marker matches the Key No. on the original Thetford parts sheet. On a phone, tap "View full-size diagram" to zoom in for a closer look.

View full-size diagram

Shop this part Discontinued

Key No. reference

Matches the table printed on the Thetford diagram.

1

Seat and Cover Assembly — White 34144

Shop →

1

Seat and Cover Assembly — Bone 34145

Shop →

1

Seat and Cover Assembly — Black 34146 — Discontinued

N/A

1

Seat and Cover Assembly — Wood 34454* (supplied as 50567) — Limited availability

Shop →

2

Nozzle 34127

Shop →

3

Vacuum Breaker 34122

Shop →

5

Waste Ball Seal 34120

Shop →

7

Water Valve with Drive Arm 34100

Shop →

8

Water Valve Return Spring 34110

Shop →

9

Water Ball Drive Arm Kit 34090

Shop →

10

Closet Bolt Kit — White 28971

Shop →

10

Closet Bolt Kit — Bone 28972

Shop →

11

Pedal — White 34114

Shop →

11

Pedal — Bone 34115 (supplied as 50232)

Shop →

11

Pedal — Black 34116 — Discontinued

N/A

12

Pedal Cable Kit 34106

Shop →

13

Shroud — Bone (High) 34140 (supplied as 50566)

Shop →

13

Shroud — White (High) 34138 — Discontinued

N/A

13

Shroud — White (Low) 34139* — Discontinued

N/A

13

Shroud — Bone (Low) 34141 — Discontinued

N/A

13

Shroud — Black (High) 34142 — Discontinued

N/A

14

Shroud O-Ring 34136 — Discontinued

N/A

14

Shroud O-Rings — Bulk pack of 20 34137 — Discontinued

N/A

Need help identifying a part? Call 248-993-0724 or email us.
