Parts Diagram - Aqua-Magic® V
Click Here to see all product listings for the Aqua-Magic V
Thetford Aqua-Magic® V · High & Low, Pedal & Hand Flush · Fresh Water Flush

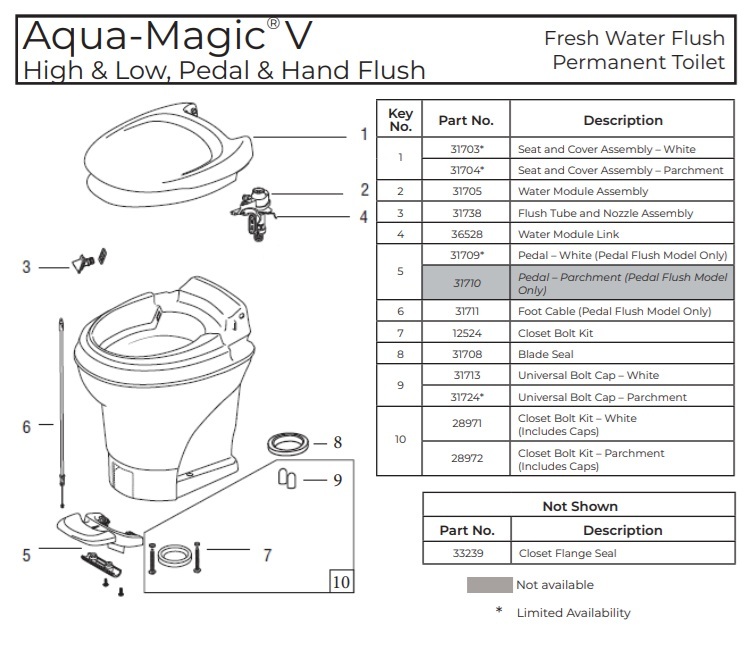

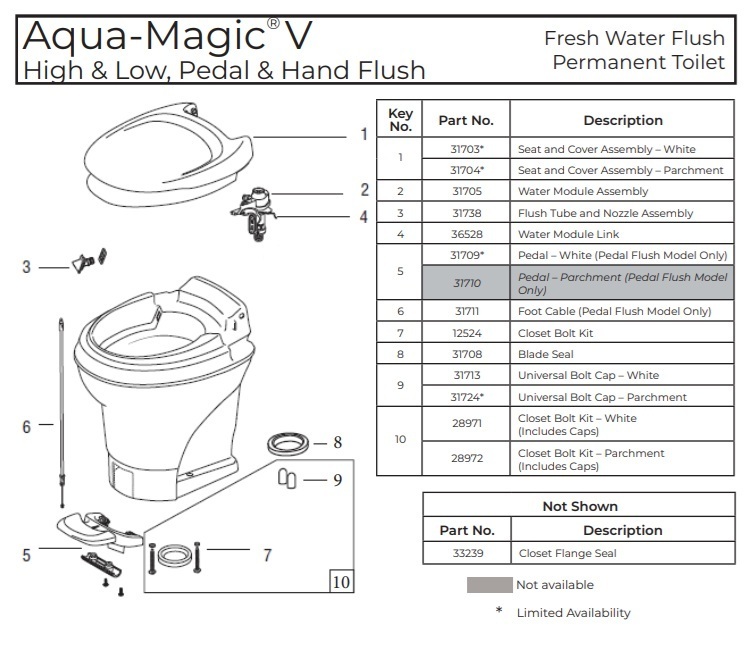

Find your part on the diagram
Click any numbered point on the diagram to jump straight to that part. Every marker matches the Key No. on the original Thetford parts sheet. On a phone, tap "View full-size diagram" to zoom in for a closer look.
Shop this part Discontinued
Key No. reference
Matches the table printed on the Thetford diagram.
|
1
|
Seat and Cover Assembly (White / Parchment)
31703* / 31704* — Select color at right
|
Shop → |
|
1
|
Seat and Cover Assembly — White
31703* — Limited availability
|
Shop → |
|
1
|
Seat and Cover Assembly — Parchment
31704* — Limited availability
|
Shop → |
|
2
|
Water Module Assembly
31705
|
Shop → |
|
3
|
Flush Tube and Nozzle Assembly
31738
|
Shop → |
|
4
|
Water Module Link
36528
|
Shop → |
|
5
|
Pedal (White / Parchment) — Pedal Flush Model Only
31709* / 31710 — Select color at right
|
Shop → |
|
5
|
Pedal — White
31709* (supplied as 50545) — Limited availability
|
Shop → |
|
5
|
Pedal — Parchment
31710 — Discontinued
|
N/A |
|
6
|
Foot Cable — Pedal Flush Model Only
31711
|
Shop → |
|
7
|
Closet Bolt Kit
12524
|
Shop → |
|
8
|
Blade Seal
31708
|
Shop → |
|
9
|
Universal Bolt Cap (White / Parchment)
31713 / 31724* — Select color at right
|
Shop → |
|
9
|
Universal Bolt Cap — White
31713
|
Shop → |
|
9
|
Universal Bolt Cap — Parchment
31724* — Limited availability
|
Shop → |
|
10
|
Closet Bolt Kit — Includes Caps (White / Parchment)
28971 / 28972 — Select color at right
|
Shop → |
|
10
|
Closet Bolt Kit — White (Includes Caps)
28971
|
Shop → |
|
10
|
Closet Bolt Kit — Parchment (Includes Caps)
28972
|
Shop → |
Not shown on diagram
|
NS
|
Closet Flange Seal
33239
|
Shop → |
Need help identifying a part? Call 248-993-0724 or email us.
