Parts Diagram - Aqua-Magic® VI

Parts Diagram - Aqua-Magic® VI

Click Here to see all product listings for the Aqua-Magic VI

Thetford Aqua-Magic® VI · High & Low, Pedal Flush · Fresh Water Flush · Permanent Toilet

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Every marker matches the Key No. on the original Thetford parts sheet. On a phone, tap "View full-size diagram" to zoom in for a closer look.

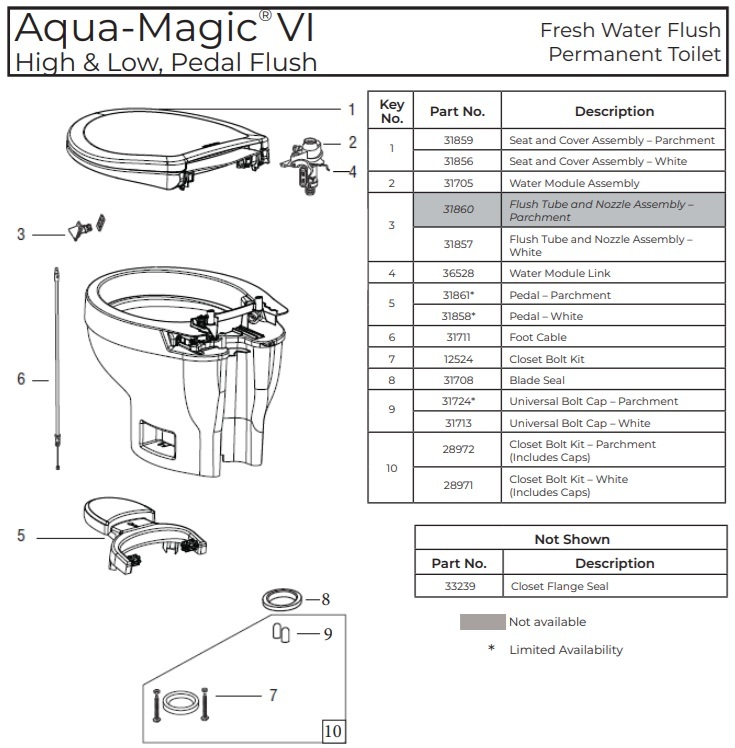

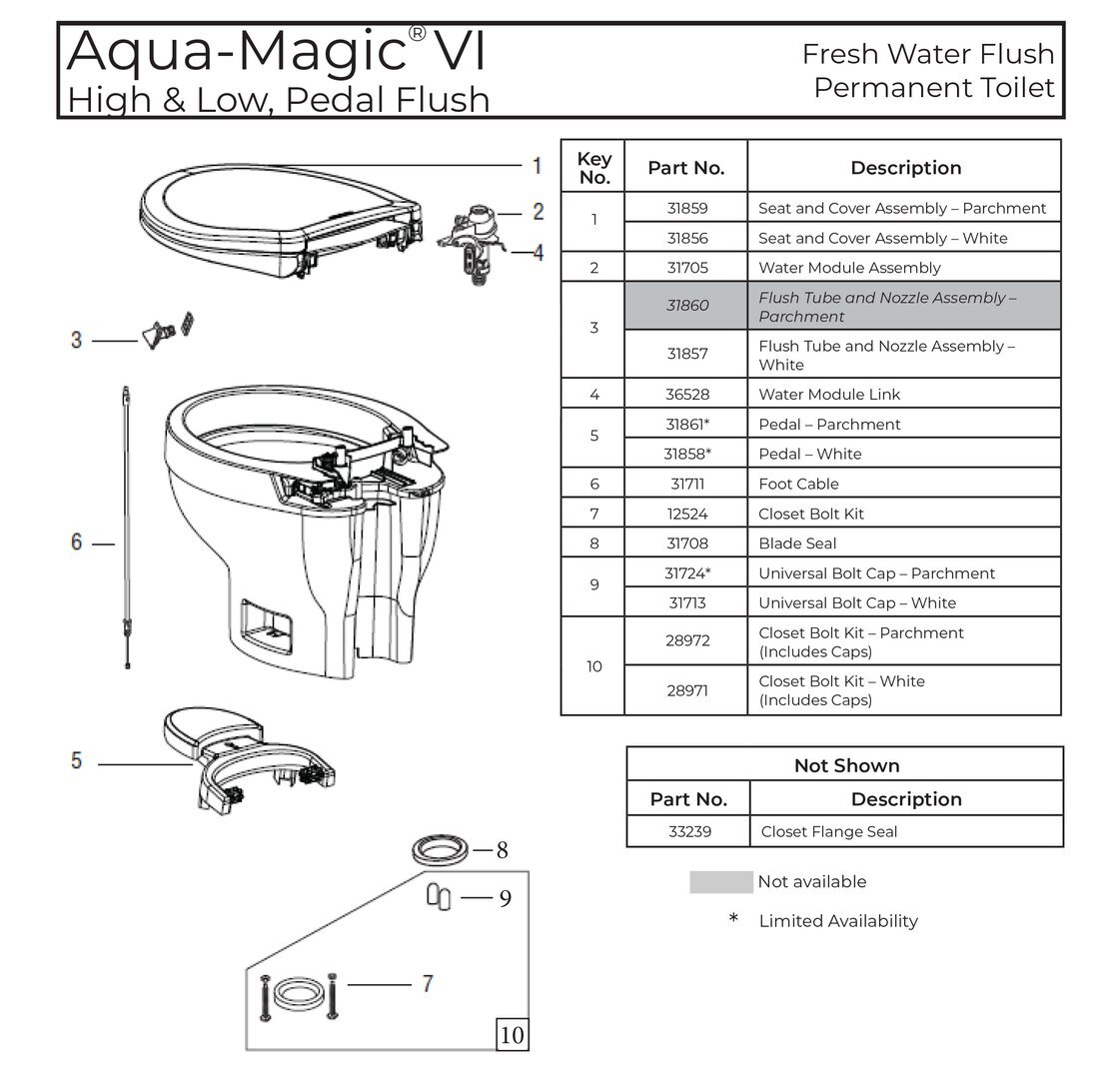

Thetford Aqua-Magic VI exploded parts diagram
Shop this part Discontinued
Key No. reference
Matches the table printed on the Thetford diagram.
1
Seat and Cover Assembly — White
31856
 Shop →
1
Seat and Cover Assembly — Parchment
31859 — Discontinued
 N/A
2
Water Module Assembly
31705
 Shop →
3
Flush Tube and Nozzle Assembly — White
31857 (supplied as 50017)
 Shop →
3
Flush Tube and Nozzle Assembly — Parchment
31860 — Discontinued
 N/A
4
Water Module Link
36528
 Shop →
5
Pedal — White
31858* (supplied as 50211) — Limited availability
 Shop →
5
Pedal — Parchment
31861* — Discontinued
 N/A
6
Foot Cable
31711
 Shop →
7
Closet Bolt Kit
12524
 Shop →
8
Blade Seal
31708
 Shop →
9
Universal Bolt Cap — Parchment
31724* — Limited availability
 Shop →
9
Universal Bolt Cap — White
31713
 Shop →
10
Closet Bolt Kit — Parchment (Includes Caps)
28972
 Shop →
10
Closet Bolt Kit — White (Includes Caps)
28971
 Shop →
Not shown on diagram
NS
Closet Flange Seal
33239
 Shop →

Need help identifying a part? Call 248-993-0724 or email us.

!
