Thetford Cassette® C200 S/CS · Portable Waste Holding Tank · Cassette Toilet

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Six of the ten parts for the C200 are available to order online — call us for help with the rest.

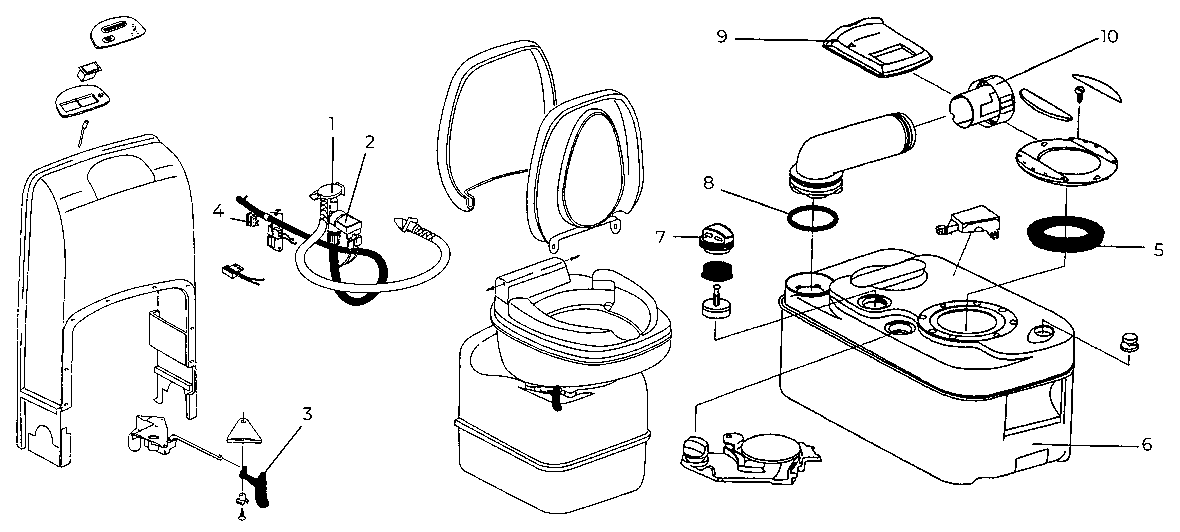

Thetford Cassette C200 S/CS exploded parts diagram
Shop this part Not available online
Key No. reference
Matches the table printed on the Thetford diagram.
1
Vacuum Breaker
16833
 Shop →
2
Electric Valve, Hose Nut & Hose Barb
23709
 Shop →
3
Valve Blade Handle — Moon Gray
2371374 — Discontinued
 N/A
4
3 Amp Fuse
16451 (replaces 33342) — Call for availability
 Call
5
Lip Seal (Post-6/15/00)
23721
 Shop →
6
Holding Tank Complete — Moon Gray
2334174
 Shop →
7
Automatic Vent — Moon Gray
2372274
 Shop →
8
Cap and Spout Seals (Qty 2)
16195 — Call for availability
 Call
9
Sliding Cover — Moon Gray
2133374 — Discontinued
 N/A
10
Measuring Cup / Spout Cap — Yellow
2581078
 Shop →

Need help identifying a part? Call 248-993-0724 or email us.

!
