Parts Diagram - Cassette® C223 CS
Click Here to see all of our Thetford Cassette toilet parts
Thetford Cassette® C223 CS · Cassette Toilet

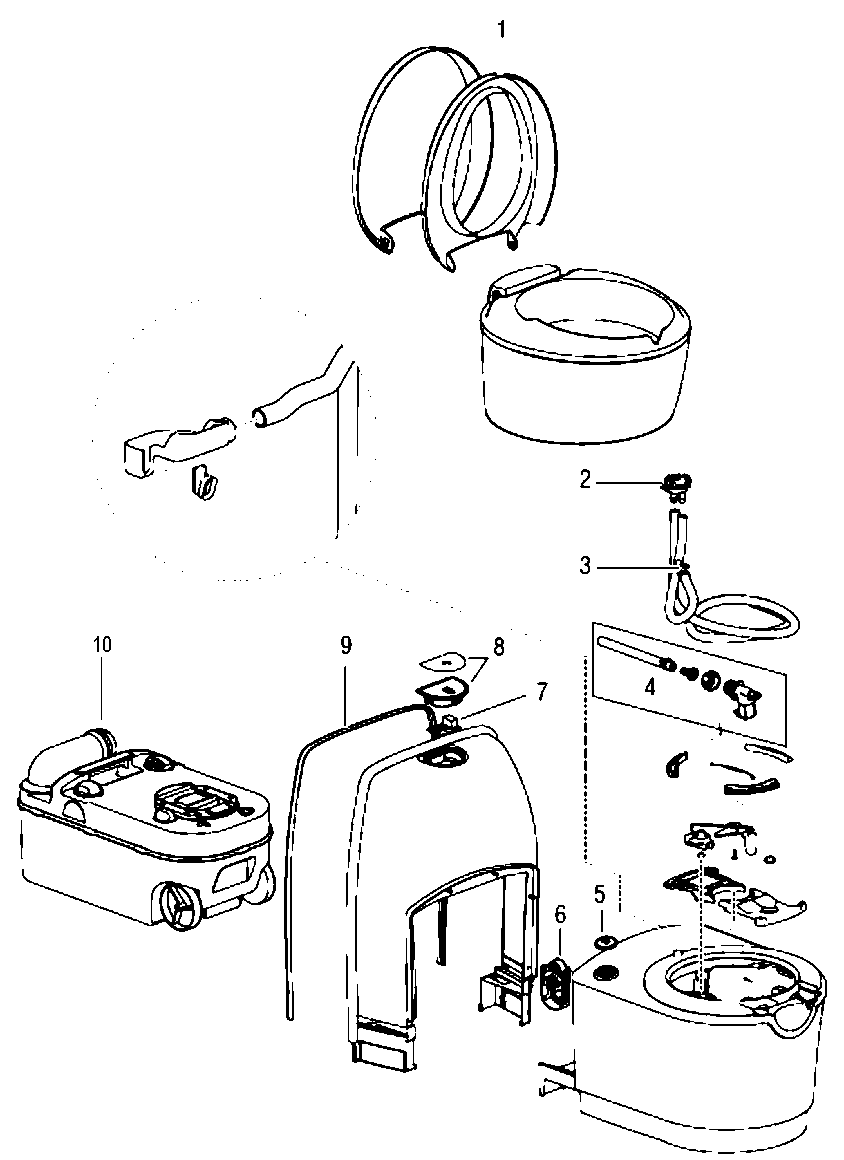

Find your part on the diagram
Click any numbered point on the diagram to jump straight to that part. Four of the ten parts for the C223 CS are available to order online — call us for help with the rest.
Key No. reference
Matches the table printed on the Thetford diagram.
|
1
|
Seat and Cover — White
20095062 — Call for availability
|
Call |
|
3
|
Flush Tube and Nozzle
20095262 — Discontinued
|
N/A |
|
5
|
Level Indicator Lens
200956 — Discontinued
|
N/A |
|
6
|
Level Indicator
200957 — Call for availability
|
Call |
|
8
|
Control Panel and Sticker
20097462 — Call for availability
|
Call |
|
9
|
Base Seal for Wall
200975 — Discontinued
|
N/A |
Need help identifying a part? Call 248-993-0724 or email us.
