Thetford Cassette® C223 S · Cassette Toilet

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Four of the ten parts for the C223 S are available to order online — call us for help with the rest.

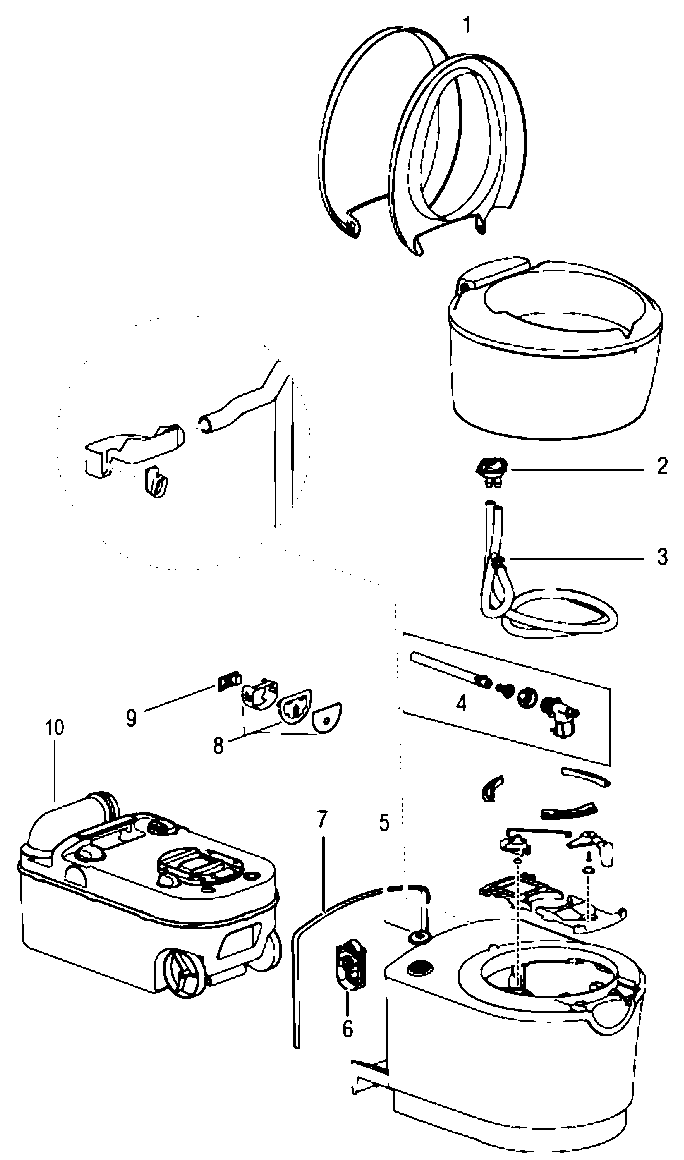

Thetford Cassette C223 S exploded parts diagram
Shop this part Not available online
Key No. reference
Matches the table printed on the Thetford diagram.
1
Seat and Cover — White
20095062 — Call for availability
 Call
2
Vacuum Breaker
16833
 Shop →
3
Flush Tube and Nozzle
20095262 — Discontinued
 N/A
4
Electric Valve, Hose Nut & Hose Barb
23709
 Shop →
5
Level Indicator Lens
200956 — Discontinued
 N/A
6
Level Indicator
200957 — Call for availability
 Call
7
Base Seal for Wall
200958 — Discontinued
 N/A
8
Sticker, Control Panel & Wall Interface
20096162 — Call for availability
 Call
9
Power Control Board
200962
 Shop →
10
C220 Series Holding Tank Complete
20097706
 Shop →

Need help identifying a part? Call 248-993-0724 or email us.

!
