Dometic® 320 & 320S Model

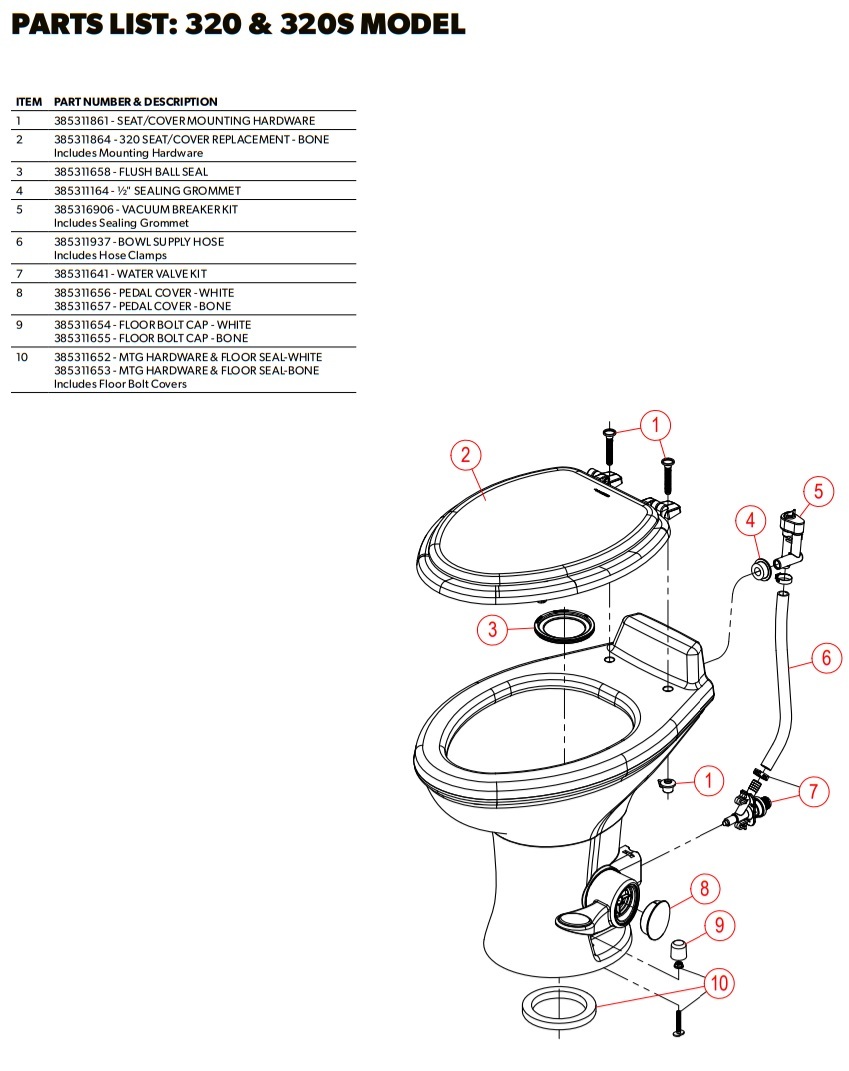

Find your part on the diagram
Click any numbered point on the diagram to jump straight to that part. On a phone, tap "View full-size diagram" to zoom in for a closer look.
Item No. reference
Matches the table printed on the Dometic parts list.
|
1
|
Seat/Cover Mounting Hardware
385311861 — Included with 320 Seat/Cover Replacement (Item 2)
|
Shop → |
|
2
|
320 Seat/Cover Replacement — White (Includes Mounting Hardware)
385311863
|
Shop → |
|
2
|
320 Seat/Cover Replacement — Bone (Includes Mounting Hardware)
385311864
|
Shop → |
|
3
|
Flush Ball Seal
385311658
|
Shop → |
|
4
|
1/2" Sealing Grommet
385311164
|
Shop → |
|
5
|
Vacuum Breaker Kit (Includes Sealing Grommet)
385316906
|
Shop → |
|
6
|
Bowl Supply Hose (Includes Hose Clamps)
385311937
|
Shop → |
|
7
|
Water Valve Kit
385311641
|
Shop → |
|
8
|
Pedal Cover — White
385311656
|
Shop → |
|
8
|
Pedal Cover — Bone
385311657
|
Shop → |
|
9
|
Floor Bolt Cap — White
385311654
|
Shop → |
|
9
|
Floor Bolt Cap — Bone
385311655
|
Shop → |
|
10
|
Mtg Hardware & Floor Seal — White (Includes Floor Bolt Covers)
385311652
|
Shop → |
|
10
|
Mtg Hardware & Floor Seal — Bone (Includes Floor Bolt Covers)
385311653
|
Shop → |
Not shown on diagram
|
NS
|
Vacuum Breaker Kit (For Sprayer Option)
385230335 — Optional accessory
|
Shop → |
|
NS
|
Hand Sprayer — White (Includes Mounting Bracket)
385311124 — Optional accessory
|
Shop → |
|
NS
|
Hand Spray Kit w/ Vac Breaker — White
385319054 — Optional accessory
|
Shop → |
Need help identifying a part? Call 248-993-0724 or email us.
