Thetford Electra Magic® · Model 80 RV & Marine · Recirculating Toilet

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. Every marker matches the No. on the original Thetford parts sheet. On a phone, tap "View full-size diagram" to zoom in for a closer look.

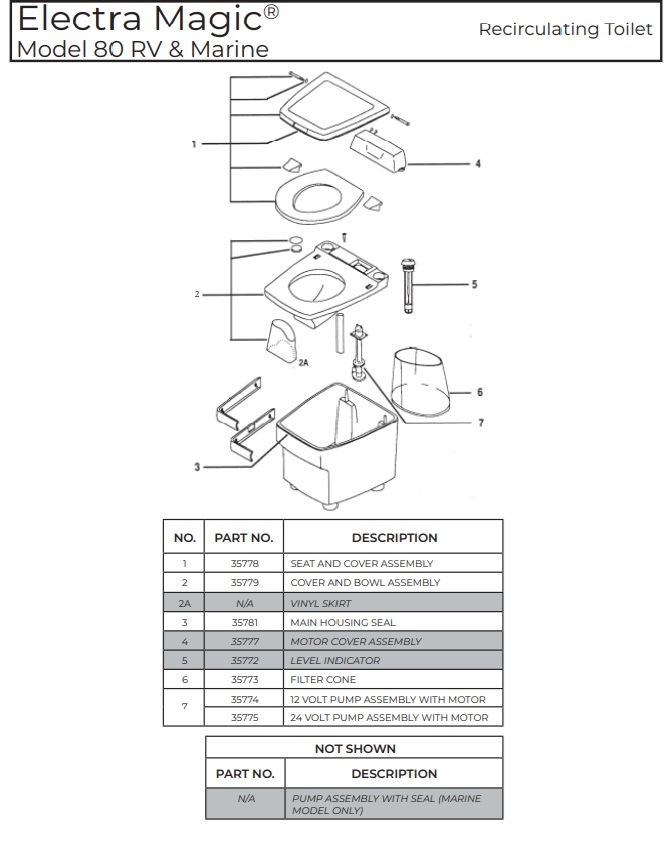

Thetford Electra Magic 80 exploded parts diagram
Shop this part Discontinued
No. reference
Matches the table printed on the Thetford diagram.
1
Seat and Cover Assembly
35778
 Shop →
2
Cover and Bowl Assembly
35779
 Shop →
2A
Vinyl Skirt
N/A — Discontinued
 N/A
3
Main Housing Seal
35781
 Shop →
4
Motor Cover Assembly
35777 — Discontinued
 N/A
5
Level Indicator
35772 — Discontinued
 N/A
6
Filter Cone
35773 — Discontinued
 N/A
7
12 Volt Pump Assembly with Motor
35774
 Shop →
7
24 Volt Pump Assembly with Motor
35775
 Shop →
Not shown on diagram
NS
Pump Assembly with Seal (Marine Model Only)
N/A — Not available
 N/A

Need help identifying a part? Call 248-993-0724 or email us.

!
