Parts Diagram - Tecma® Silence Plus 2G
Click Here to see all product listings for the Tecma Silence Plus 2G
Tecma® Silence Plus 2G · RV Fresh Water Flush · Permanent Ceramic Toilet

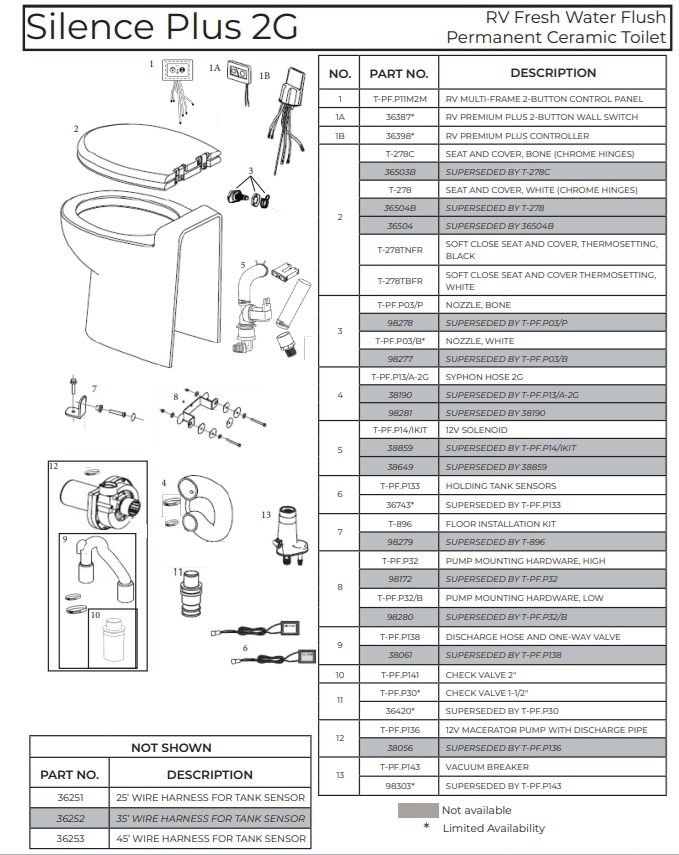

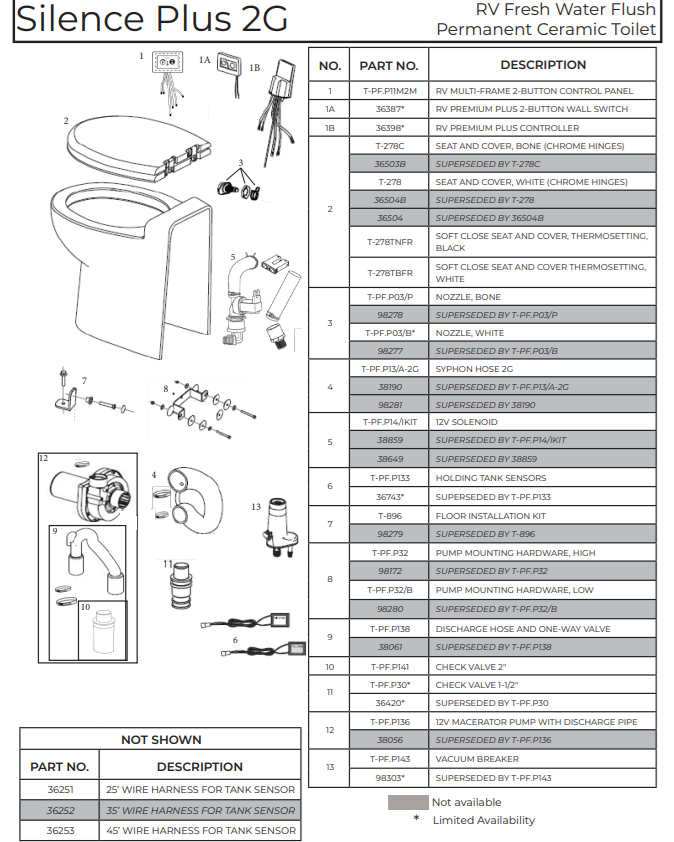

Find your part on the diagram
Click any numbered point on the diagram to jump straight to that part.
Shop this part Discontinued
No. reference
Matches the table printed on the Tecma diagram, updated to current part numbers.
|
1
|
RV Multi-Frame 2-Button Control Panel
50118
|
Shop → |
|
1A
|
RV Premium Plus 2-Button Wall Switch
50007
|
Shop → |
|
1B
|
RV Premium Plus Controller — RV Version
50241
|
Shop → |
|
1B
|
RV Premium Plus Controller — Marine Version
50578
|
Shop → |
|
2
|
Seat and Cover, Bone (Chrome Hinges)
50000
|
Shop → |
|
2
|
Seat and Cover, White (Chrome Hinges)
50186
|
Shop → |
|
2
|
Soft Close Seat and Cover, Thermosetting, Black
50111
|
Shop → |
|
2
|
Soft Close Seat and Cover, Thermosetting, White
51182
|
Shop → |
|
3
|
Nozzle, White
51195
|
Shop → |
|
3
|
Nozzle, Bone
51196
|
Shop → |
|
4
|
Syphon Hose 2G
51199
|
Shop → |
|
5
|
12V Solenoid Kit
50250
|
Shop → |
|
5
|
12V Solenoid (valve only)
50252
|
Shop → |
|
6
|
Holding Tank Sensors
50120
|
Shop → |
|
7
|
Floor Installation Kit
50113
|
Shop → |
|
8
|
Pump Mounting Hardware
51210
|
Shop → |
|
9
|
Discharge Hose and One-Way Valve
50248
|
Shop → |
|
10
|
Check Valve 2"
51206
|
Shop → |
|
11
|
Check Valve 1-1/2"
T-PF.P30* — Discontinued
|
N/A |
|
12
|
12V Macerator Pump with Discharge Pipe
50121
|
Shop → |
|
13
|
Vacuum Breaker
50299
|
Shop → |
Not shown on diagram
|
NS
|
25' Wire Harness for Tank Sensor
50006
|
Shop → |
|
NS
|
35' Wire Harness for Tank Sensor
36252 — Discontinued
|
N/A |
|
NS
|
45' Wire Harness for Tank Sensor
36253
|
Shop → |
Need help identifying a part? Call 248-993-0724 or email us.
