Parts Diagram - Traveler 500 Series

Dometic® Traveler 510H & 510H-PS Tall Gravity Toilet

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. On a phone, tap "View full-size diagram" to zoom in for a closer look.

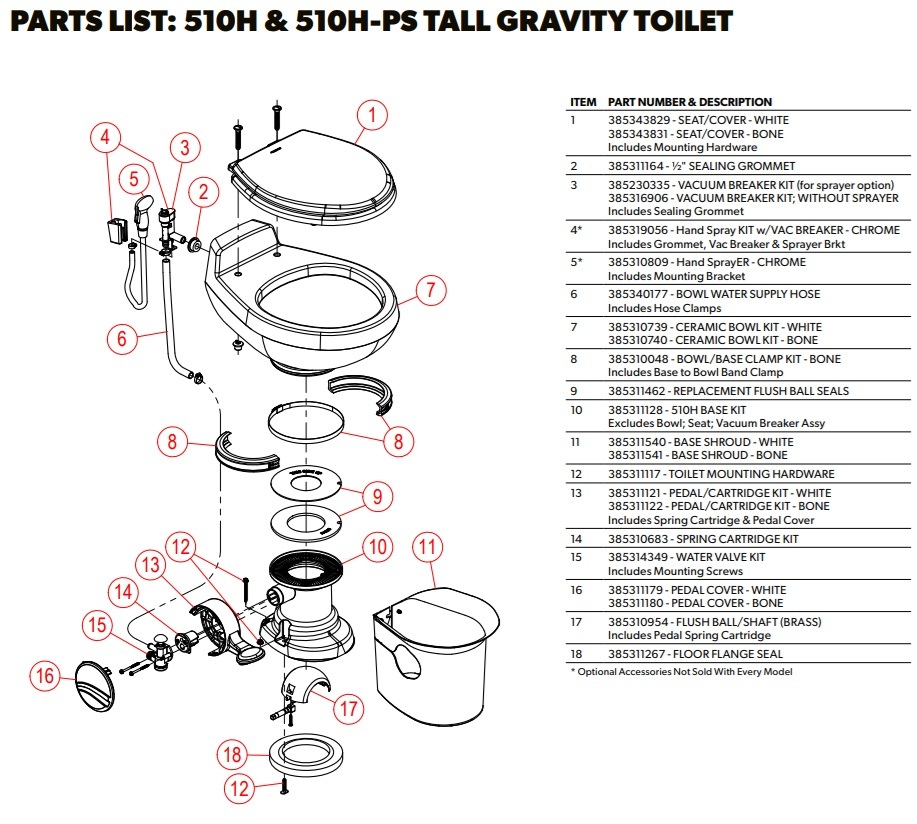

Dometic Traveler 510H exploded parts diagram
Shop this part Unavailable
Item No. reference
Matches the table printed on the diagram. Items 4 & 5 are optional accessories, not sold with every model.
1
Seat/Cover — White (Includes Mounting Hardware)
385343829
 Shop →
1
Seat/Cover — Bone (Includes Mounting Hardware)
385343831
 Shop →
2
1/2" Sealing Grommet
385311164
 Shop →
3
Vacuum Breaker Kit (for sprayer option)
385230335
 Shop →
3
Vacuum Breaker Kit; Without Sprayer (Includes Sealing Grommet)
385316906
 Shop →
4
Hand Spray Kit w/ Vac Breaker — Chrome (Includes Grommet, Vac Breaker & Sprayer Brkt)
385319056* — Optional accessory
 Shop →
5
Hand Sprayer — Chrome (Includes Mounting Bracket)
385310809* — Optional accessory — Unavailable
 Unavailable
6
Bowl Water Supply Hose (Includes Hose Clamps)
385340177 — Listed on-site as Bone
 Shop →
7
Ceramic Bowl Kit — White
385310739 — Unavailable
 Unavailable
7
Ceramic Bowl Kit — Bone
385310740 — Unavailable
 Unavailable
8
Bowl/Base Clamp Kit — Bone (Includes Base to Bowl Band Clamp)
385310048
 Shop →
9
Replacement Flush Ball Seals
385311462
 Shop →
10
510H Base Kit (Excludes Bowl; Seat; Vacuum Breaker Assy)
385311128
 Shop →
11
Base Shroud — White
385311540 — Unavailable
 Unavailable
11
Base Shroud — Bone
385311541 — Unavailable
 Unavailable
12
Toilet Mounting Hardware
385311117 — Unavailable
 Unavailable
13
Pedal/Cartridge Kit — White (Includes Spring Cartridge & Pedal Cover)
385311121
 Shop →
13
Pedal/Cartridge Kit — Bone (Includes Spring Cartridge & Pedal Cover)
385311122
 Shop →
14
Spring Cartridge Kit
385310683
 Shop →
15
Water Valve Kit (Includes Mounting Screws)
385314349
 Shop →
16
Pedal Cover — White
385311179
 Shop →
16
Pedal Cover — Bone
385311180
 Shop →
17
Flush Ball/Shaft (Brass) (Includes Pedal Spring Cartridge)
385310954 — Unavailable
 Unavailable
18
Floor Flange Seal
385311267
 Shop →

Dometic® Traveler 510+ Model

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. On a phone, tap "View full-size diagram" to zoom in for a closer look.

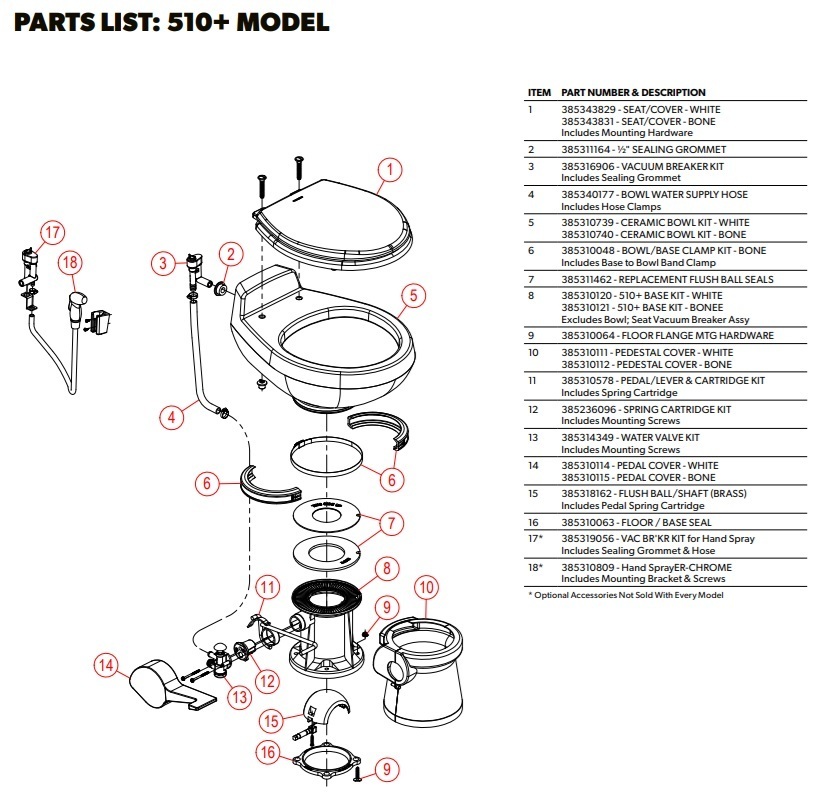

Dometic Traveler 510+ exploded parts diagram
Shop this part Unavailable
Item No. reference
Matches the table printed on the diagram. Items 17 & 18 are optional accessories, not sold with every model.
1
Seat/Cover — White (Includes Mounting Hardware)
385343829
 Shop →
1
Seat/Cover — Bone (Includes Mounting Hardware)
385343831
 Shop →
2
1/2" Sealing Grommet
385311164
 Shop →
3
Vacuum Breaker Kit (Includes Sealing Grommet)
385316906
 Shop →
4
Bowl Water Supply Hose (Includes Hose Clamps)
385340177 — Listed on-site as Bone
 Shop →
5
Ceramic Bowl Kit — White
385310739 — Unavailable
 Unavailable
5
Ceramic Bowl Kit — Bone
385310740 — Unavailable
 Unavailable
6
Bowl/Base Clamp Kit (Includes Base to Bowl Band Clamp)
385310048
 Shop →
7
Replacement Flush Ball Seals
385311462
 Shop →
8
510+ Base Kit — White (Excludes Bowl; Seat Vacuum Breaker Assy)
385310120
 Shop →
8
510+ Base Kit — Bone (Excludes Bowl; Seat Vacuum Breaker Assy)
385310121
 Shop →
9
Floor Flange Mtg Hardware
385310064
 Shop →
10
Pedestal Cover — White
385310111 — Unavailable
 Unavailable
10
Pedestal Cover — Bone
385310112 — Unavailable
 Unavailable
11
Pedal/Lever & Cartridge Kit (Includes Spring Cartridge)
385310578
 Shop →
12
Spring Cartridge Kit (Includes Mounting Screws)
385236096
 Shop →
13
Water Valve Kit (Includes Mounting Screws)
385314349
 Shop →
14
Pedal Cover — White
385310114 — Unavailable
 Unavailable
14
Pedal Cover — Bone
385310115 — Unavailable
 Unavailable
15
Flush Ball/Shaft (Brass) (Includes Pedal Spring Cartridge)
385318162
 Shop →
16
Floor / Base Seal
385310063
 Shop →
17
Vac Br'kr Kit for Hand Spray (Includes Sealing Grommet & Hose)
385319056* — Optional accessory
 Shop →
18
Hand Sprayer — Chrome (Includes Mounting Bracket & Screws)
385310809* — Optional accessory — Unavailable
 Unavailable

Dometic® Traveler 511H Tall Gravity Toilet

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. On a phone, tap "View full-size diagram" to zoom in for a closer look.

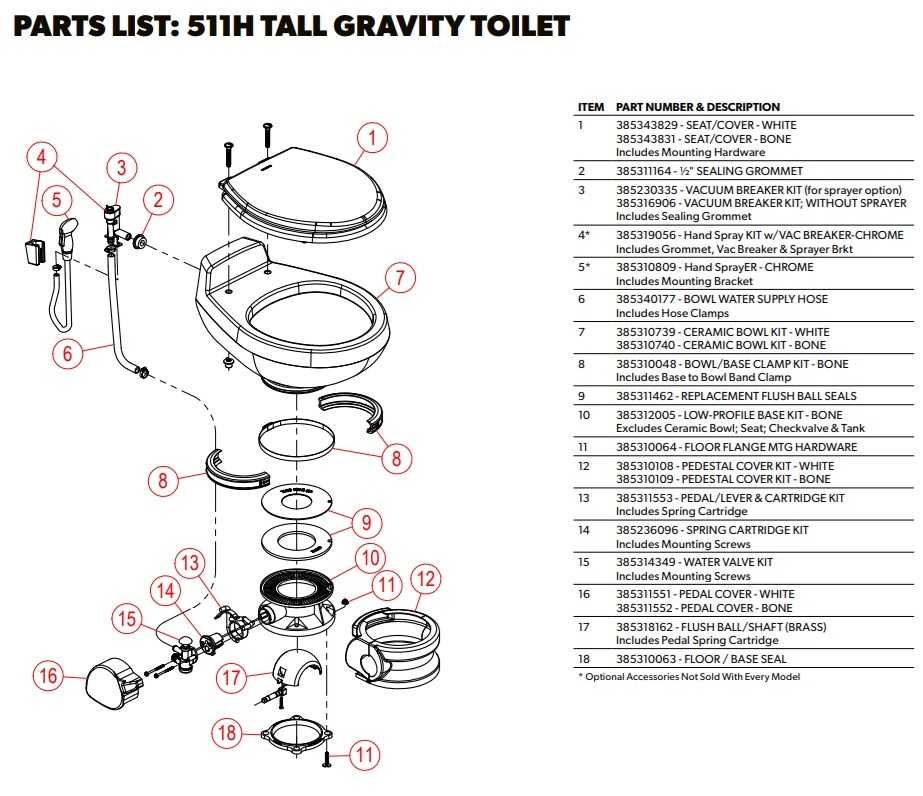

Dometic Traveler 511H exploded parts diagram
Shop this part Unavailable
Item No. reference
Matches the table printed on the diagram. Items 4 & 5 are optional accessories, not sold with every model.
1
Seat/Cover — White (Includes Mounting Hardware)
385343829
 Shop →
1
Seat/Cover — Bone (Includes Mounting Hardware)
385343831
 Shop →
2
1/2" Sealing Grommet
385311164
 Shop →
3
Vacuum Breaker Kit (for sprayer option)
385230335
 Shop →
3
Vacuum Breaker Kit; Without Sprayer (Includes Sealing Grommet)
385316906
 Shop →
4
Hand Spray Kit w/ Vac Breaker — Chrome (Includes Grommet, Vac Breaker & Sprayer Brkt)
385319056* — Optional accessory
 Shop →
5
Hand Sprayer — Chrome (Includes Mounting Bracket)
385310809* — Optional accessory — Unavailable
 Unavailable
6
Bowl Water Supply Hose (Includes Hose Clamps)
385340177 — Listed on-site as Bone
 Shop →
7
Ceramic Bowl Kit — White
385310739
 Shop →
7
Ceramic Bowl Kit — Bone
385310740 — Unavailable
 Unavailable
8
Bowl/Base Clamp Kit — Bone (Includes Base to Bowl Band Clamp)
385310048
 Shop →
9
Replacement Flush Ball Seals
385311462
 Shop →
10
Low-Profile Base Kit — Bone (Excludes Ceramic Bowl; Seat; Checkvalve & Tank)
385312005 — Unavailable
 Unavailable
11
Floor Flange Mtg Hardware
385310064
 Shop →
12
Pedestal Cover Kit — White
385310108
 Shop →
12
Pedestal Cover Kit — Bone
385310109
 Shop →
13
Pedal/Lever & Cartridge Kit (Includes Spring Cartridge)
385311553 — Unavailable
 Unavailable
14
Spring Cartridge Kit (Includes Mounting Screws)
385236096
 Shop →
15
Water Valve Kit (Includes Mounting Screws)
385314349
 Shop →
16
Pedal Cover — White
385311551 — Unavailable
 Unavailable
16
Pedal Cover — Bone
385311552 — Unavailable
 Unavailable
17
Flush Ball/Shaft (Brass) (Includes Pedal Spring Cartridge)
385318162
 Shop →
18
Floor / Base Seal
385310063
 Shop →

Need help identifying a part? Call 248-993-0724 or email us.

!
