Parts Diagram - Traveler 900 Series

Dometic® Traveler 910 Model

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part.

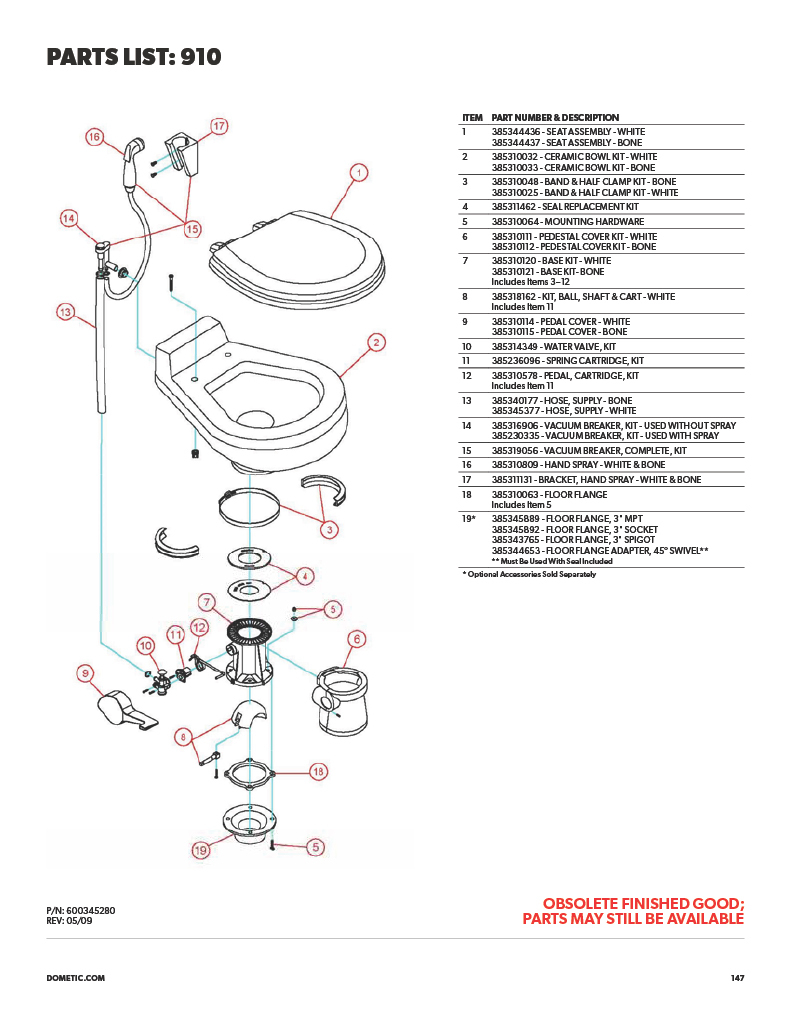

Dometic Traveler 910 exploded parts diagram
Shop this part Unavailable
Item No. reference
Matches the table printed on the diagram. Item 19 variants are optional accessories sold separately.
1
Seat Assembly — White
385344436
 Shop →
1
Seat Assembly — Bone
385344437
 Shop →
2
Ceramic Bowl Kit — White
385310032 — Unavailable
 Unavailable
2
Ceramic Bowl Kit — Bone
385310033 — Unavailable
 Unavailable
3
Band & Half Clamp Kit — Bone
385310048
 Shop →
3
Band & Half Clamp Kit — White
385310025
 Shop →
4
Seal Replacement Kit
385311462
 Shop →
5
Mounting Hardware
385310064
 Shop →
6
Pedestal Cover Kit — White
385310111 — Unavailable
 Unavailable
6
Pedestal Cover Kit — Bone
385310112 — Unavailable
 Unavailable
7
Base Kit — White (Includes Items 3–12)
385310120
 Shop →
7
Base Kit — Bone (Includes Items 3–12)
385310121
 Shop →
8
Kit, Ball, Shaft & Cart — White (Includes Item 11)
385318162
 Shop →
9
Pedal Cover — White
385310114
 Shop →
9
Pedal Cover — Bone
385310115 — Unavailable
 Unavailable
10
Water Valve, Kit
385314349
 Shop →
11
Spring Cartridge, Kit
385236096
 Shop →
12
Pedal, Cartridge, Kit (Includes Item 11)
385310578
 Shop →
13
Hose, Supply — Bone
385340177 — Listed on-site as Bone
 Shop →
13
Hose, Supply — White
385345377 — Unavailable
 Unavailable
14
Vacuum Breaker, Kit — Used Without Spray
385316906
 Shop →
14
Vacuum Breaker, Kit — Used With Spray
385230335
 Shop →
15
Vacuum Breaker, Complete, Kit
385319056
 Shop →
16
Hand Spray — White & Bone
385310809 — Unavailable
 Unavailable
17
Bracket, Hand Spray — White & Bone
385311131 — Unavailable
 Unavailable
18
Floor Flange (Includes Item 5)
385310063
 Shop →
19
Floor Flange — 3" MPT
385345889* — Optional accessory
 Shop →
19
Floor Flange — 3" Socket
385345892* — Optional accessory
 Shop →
19
Floor Flange — 3" Spigot
385343765* — Optional accessory
 Shop →
19
Floor Flange Adapter, 45° Swivel** (Must Be Used With Seal Included)
385344653* — Optional accessory — Unavailable
 Unavailable

Need help identifying a part? Call 248-993-0724 or email us.

Dometic® Traveler 911 Model

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part.

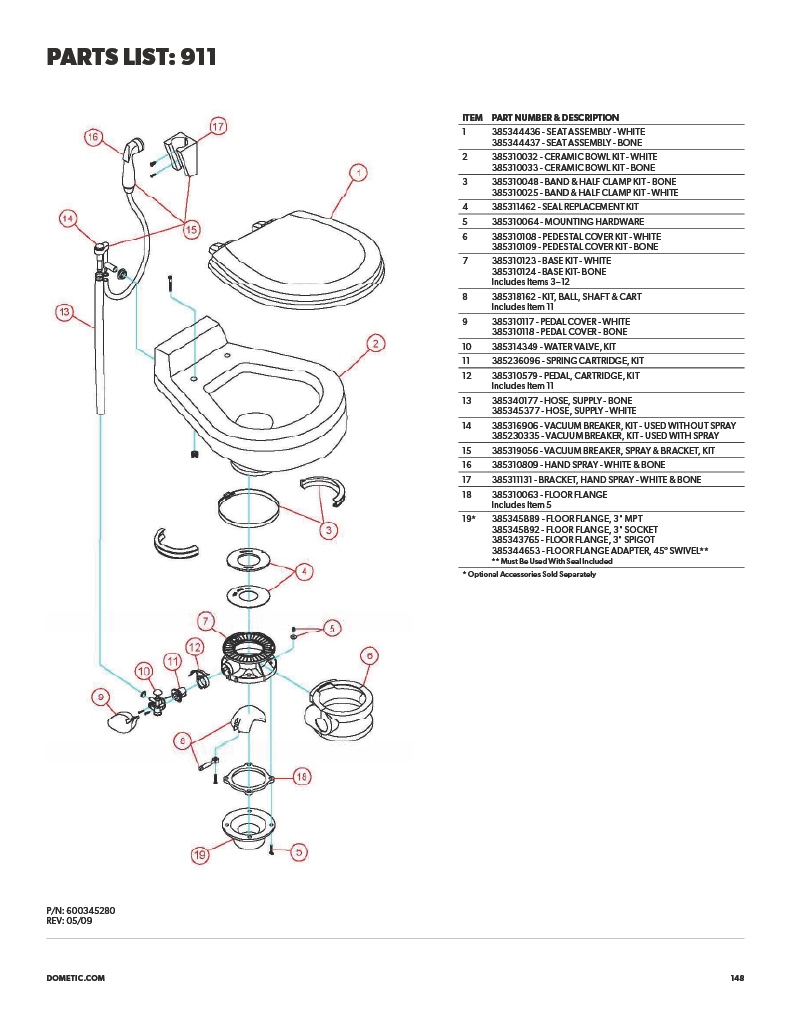

Dometic Traveler 911 exploded parts diagram
Shop this part Unavailable
Item No. reference
Matches the table printed on the diagram. Item 19 variants are optional accessories sold separately.
1
Seat Assembly — White
385344436
 Shop →
1
Seat Assembly — Bone
385344437
 Shop →
2
Ceramic Bowl Kit — White
385310032 — Unavailable
 Unavailable
2
Ceramic Bowl Kit — Bone
385310033 — Unavailable
 Unavailable
3
Band & Half Clamp Kit — Bone
385310048
 Shop →
3
Band & Half Clamp Kit — White
385310025
 Shop →
4
Seal Replacement Kit
385311462
 Shop →
5
Mounting Hardware
385310064
 Shop →
6
Pedestal Cover Kit — White
385310108
 Shop →
6
Pedestal Cover Kit — Bone
385310109
 Shop →
7
Base Kit — White (Includes Items 3–12)
385310123
 Shop →
7
Base Kit — Bone (Includes Items 3–12)
385310124 — Unavailable
 Unavailable
8
Kit, Ball, Shaft & Cart — White (Includes Item 11)
385318162
 Shop →
9
Pedal Cover — White
385310117 — Unavailable
 Unavailable
9
Pedal Cover — Bone
385310118 — Unavailable
 Unavailable
10
Water Valve, Kit
385314349
 Shop →
11
Spring Cartridge, Kit
385236096
 Shop →
12
Pedal, Cartridge, Kit (Includes Item 11)
385310579
 Shop →
13
Hose, Supply — Bone
385340177 — Listed on-site as Bone
 Shop →
13
Hose, Supply — White
385345377 — Unavailable
 Unavailable
14
Vacuum Breaker, Kit — Used Without Spray
385316906
 Shop →
14
Vacuum Breaker, Kit — Used With Spray
385230335
 Shop →
15
Vacuum Breaker, Spray & Bracket, Kit
385319056
 Shop →
16
Hand Spray — White & Bone
385310809 — Unavailable
 Unavailable
17
Bracket, Hand Spray — White & Bone
385311131 — Unavailable
 Unavailable
18
Floor Flange (Includes Item 5)
385310063
 Shop →
19
Floor Flange — 3" MPT
385345889* — Optional accessory
 Shop →
19
Floor Flange — 3" Socket
385345892* — Optional accessory
 Shop →
19
Floor Flange — 3" Spigot
385343765* — Optional accessory
 Shop →
19
Floor Flange Adapter, 45° Swivel** (Must Be Used With Seal Included)
385344653* — Optional accessory — Unavailable
 Unavailable

Need help identifying a part? Call 248-993-0724 or email us.

!
