Parts Diagram - Traveler Lite 111

Click Here to see all product listings for Dometic Traveler Lite 111 Toilets

Dometic® Traveler Lite 111 Model

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. On a phone, tap "View full-size diagram" to zoom in for a closer look.

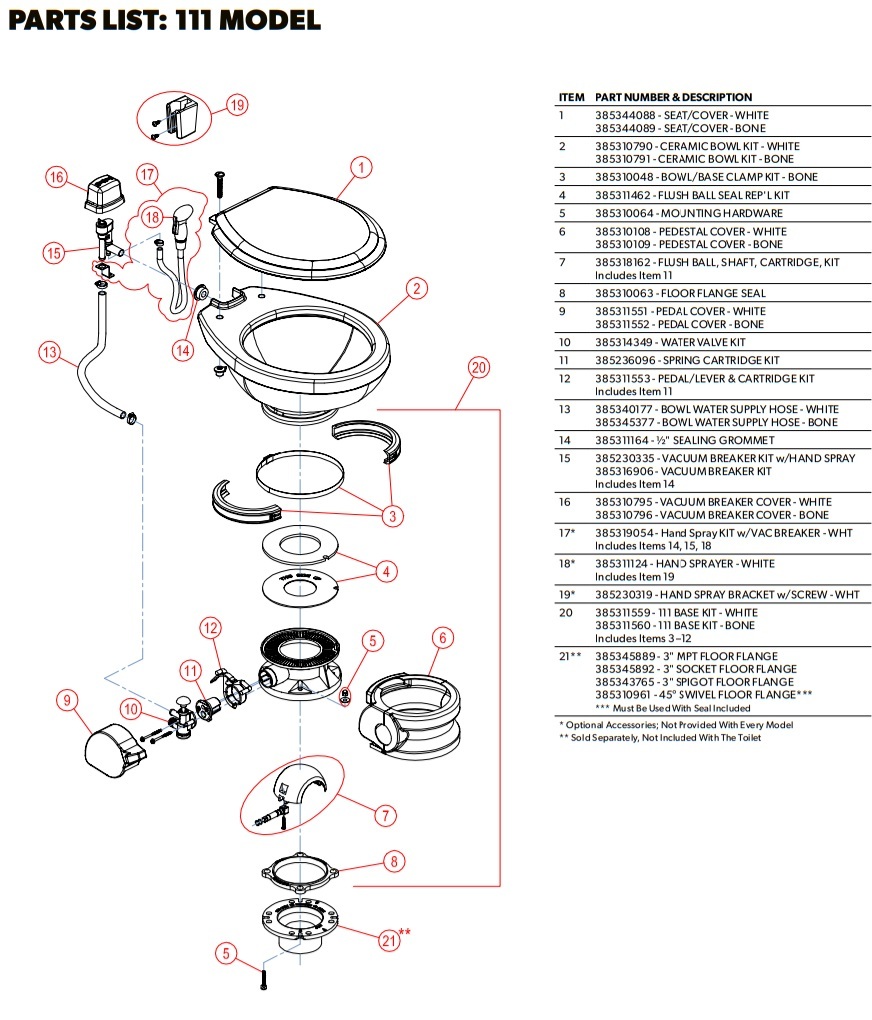

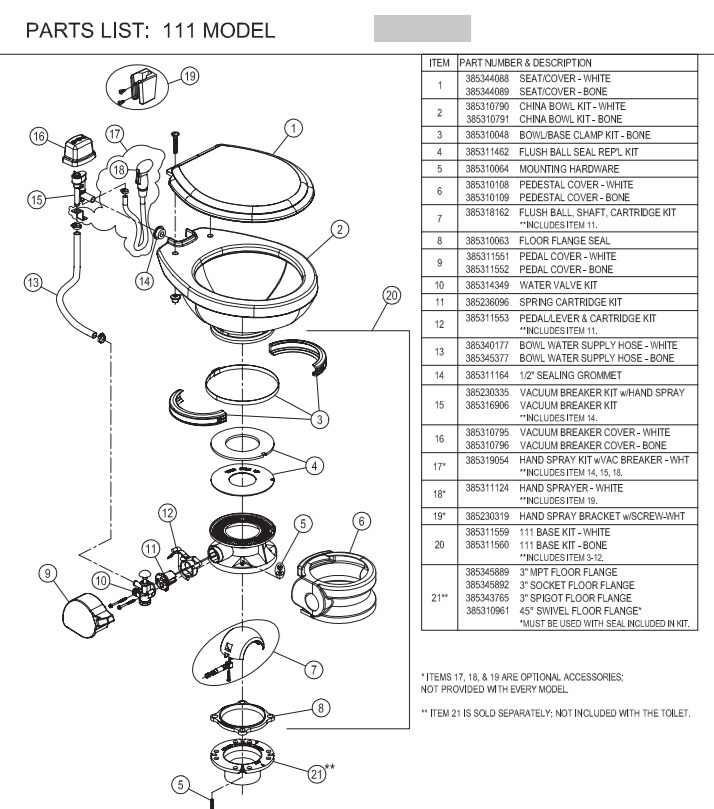

Dometic Traveler Lite 111 exploded parts diagram
Shop this part Unavailable
Item No. reference
Matches the table printed on the diagram. Items 17–19 are optional accessories, not provided with every model. Item 21 variants are sold separately, not included with the toilet.
1
Seat/Cover — White
385344088 (supplied as 385312113)
 Shop →
1
Seat/Cover — Bone
385344089 (supplied as 385312114)
 Shop →
2
Ceramic Bowl Kit — White
385310790 — Unavailable
 Unavailable
2
Ceramic Bowl Kit — Bone
385310791 — Unavailable
 Unavailable
3
Bowl/Base Clamp Kit — Bone
385310048
 Shop →
4
Flush Ball Seal Rep'l Kit
385311462
 Shop →
5
Mounting Hardware
385310064
 Shop →
6
Pedestal Cover — White
385310108 — Unavailable
 Unavailable
6
Pedestal Cover — Bone
385310109 — Unavailable
 Unavailable
7
Flush Ball, Shaft, Cartridge Kit (Includes Item 11)
385318162
 Shop →
8
Floor Flange Seal
385310063
 Shop →
9
Pedal Cover — White
385311551 — Unavailable
 Unavailable
9
Pedal Cover — Bone
385311552 — Unavailable
 Unavailable
10
Water Valve Kit
385314349
 Shop →
11
Spring Cartridge Kit
385236096
 Shop →
12
Pedal/Lever & Cartridge Kit (Includes Item 11)
385311553 — Unavailable
 Unavailable
13
Bowl Water Supply Hose — White
385340177 — Listed on-site as Bone
 Shop →
13
Bowl Water Supply Hose — Bone
385345377 — Unavailable
 Unavailable
14
1/2" Sealing Grommet
385311164
 Shop →
15
Vacuum Breaker Kit w/ Hand Spray
385230335
 Shop →
15
Vacuum Breaker Kit (Includes Item 14)
385316906
 Shop →
16
Vacuum Breaker Cover — White
385310795 — Unavailable
 Unavailable
16
Vacuum Breaker Cover — Bone
385310796 — Unavailable
 Unavailable
17
Hand Spray Kit w/ Vac Breaker — White (Includes Items 14, 15, 18)
385319054* — Optional accessory
 Shop →
18
Hand Sprayer — White (Includes Item 19)
385311124* — Optional accessory
 Shop →
19
Hand Spray Bracket w/ Screw — White
385230319* — Optional accessory — Unavailable
 Unavailable
20
111 Base Kit — White (Includes Items 3–12)
385311559
 Shop →
20
111 Base Kit — Bone (Includes Items 3–12)
385311560
 Shop →
21
Floor Flange — 3" MPT
385345889** — Sold separately
 Shop →
21
Floor Flange — 3" Socket
385345892** — Sold separately
 Shop →
21
Floor Flange — 3" Spigot
385343765** — Sold separately
 Shop →
21
Floor Flange — 45° Swivel (Must Be Used With Seal Included)
385310961** — Sold separately — Unavailable
 Unavailable

Need help identifying a part? Call 248-993-0724 or email us.

!
