Dometic® (Sealand) Traveler Lite® and Traveler® RV Toilet Parts Diagrams
Dometic’s Traveler Lite® and Traveler® RV toilets are known for their dependable performance, efficient water usage, and durable design—but like any RV toilet system, they rely on a precise combination of seals, cartridges, springs, valves, and mechanical components to function properly. When flushing becomes weak, seals begin to leak, or hardware wears down, identifying the correct replacement part can feel overwhelming—especially when diagrams are hard to find.
That’s why we created this comprehensive guide to Dometic Traveler Lite and Traveler toilet parts diagrams. In this post, you’ll find clear, easy-to-read breakdowns of the most common Traveler models—including 110, 111, 210, 510H, 511H, 510PS, 511PS, and more—along with labeled charts and direct links to OEM replacement parts available right here at rvtoiletparts.com. Whether you're replacing a spring cartridge, installing a new pedal kit, fixing a leak, or refreshing seals for better performance, this guide helps you identify the right part quickly and confidently.
Consider this your go-to resource for keeping your Traveler® or Traveler Lite® toilet flushing strong and performing like new—on every trip.

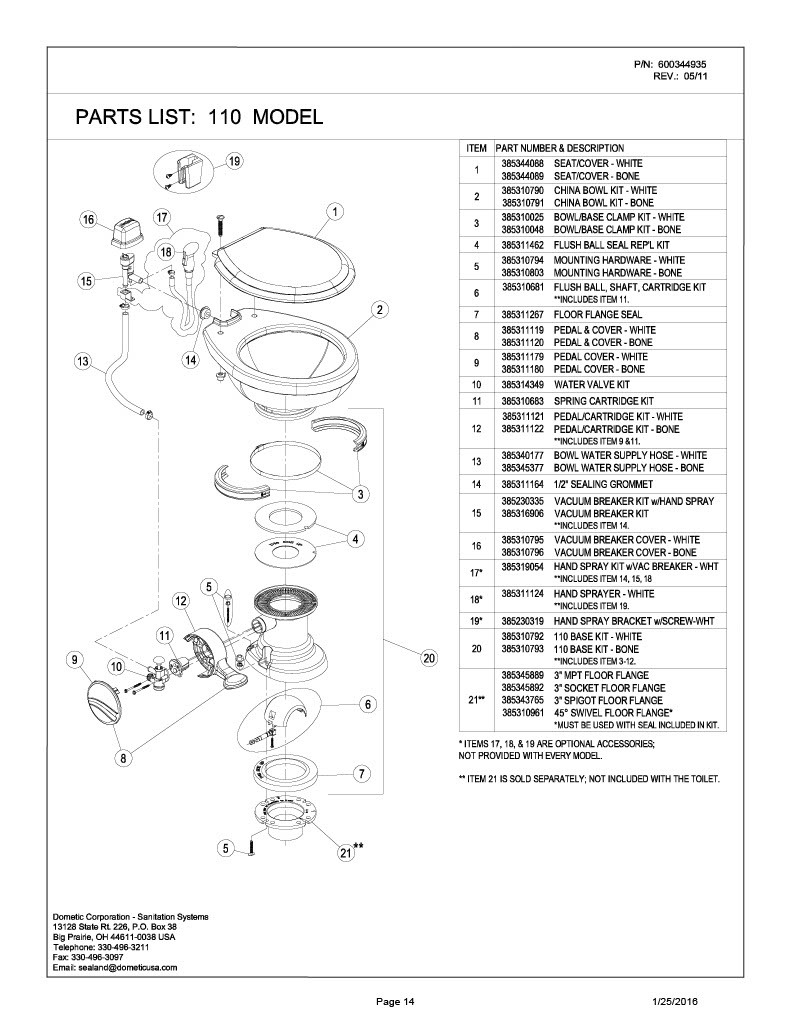

110 Toilet Series
111 Toilet Series

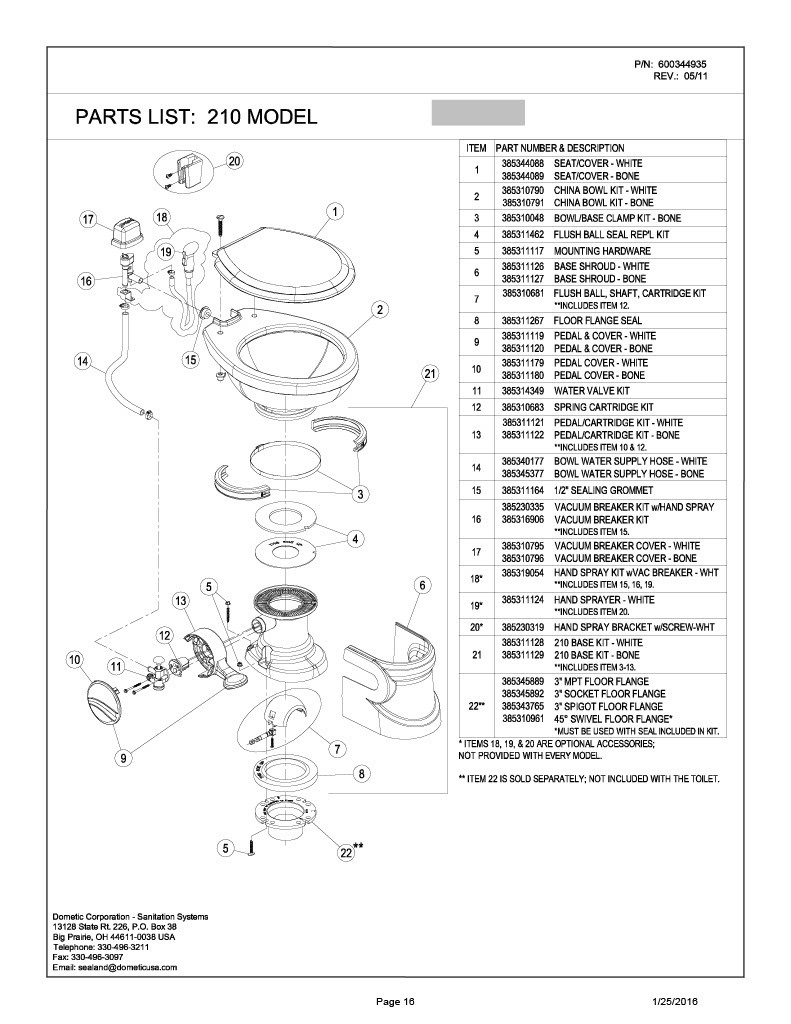

200 Toilet Series
500 Toilet Series

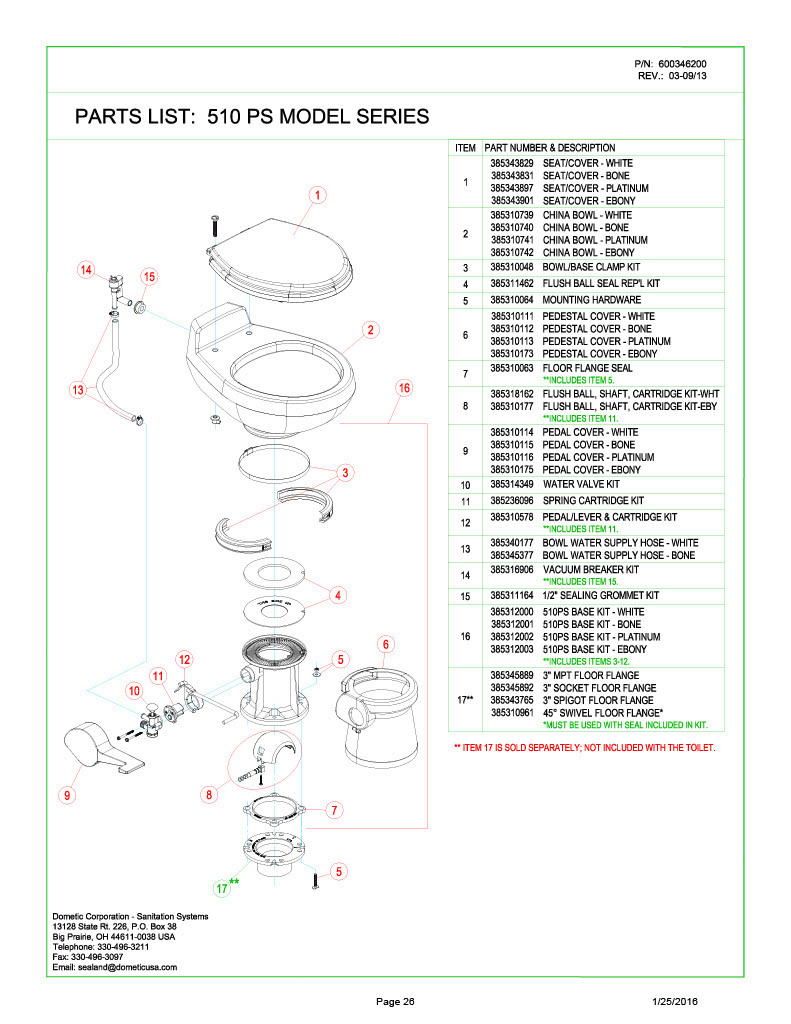

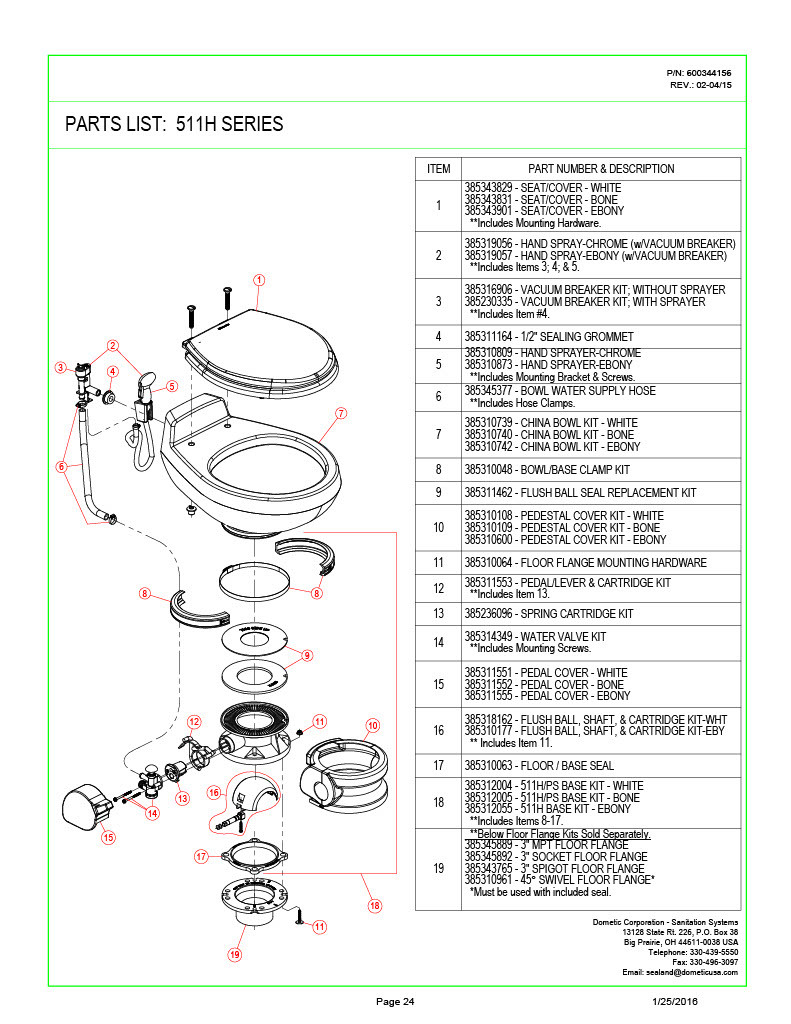

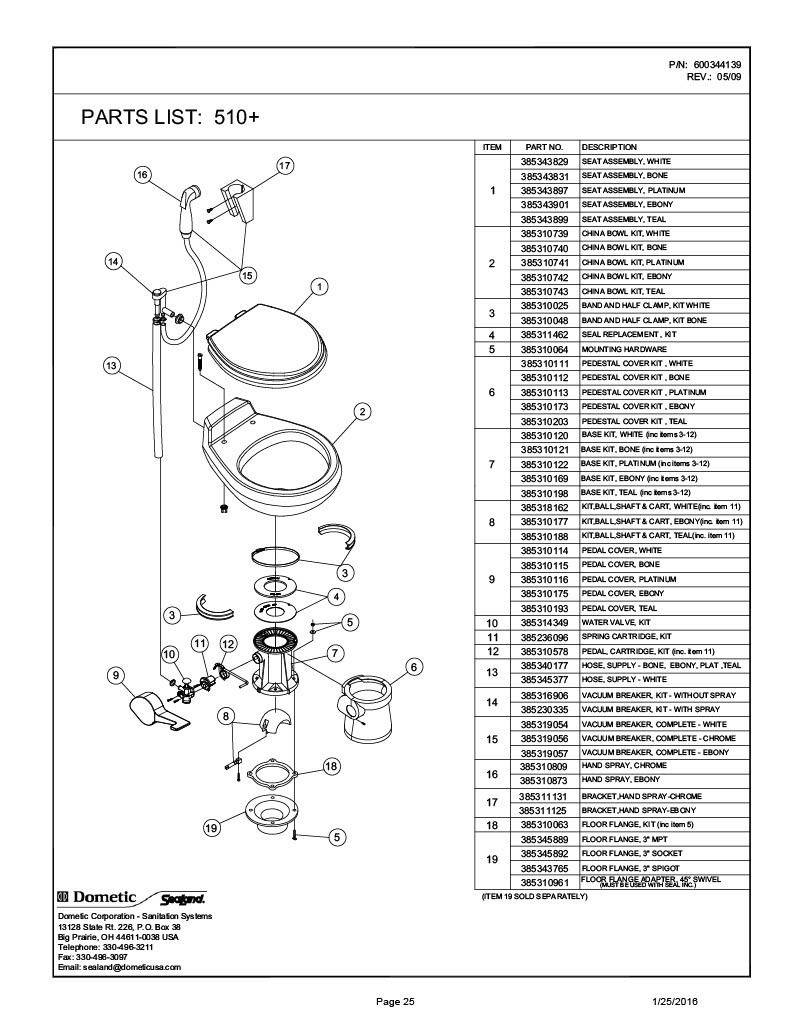

Include: 511H, 510+, 510PS, 511PS

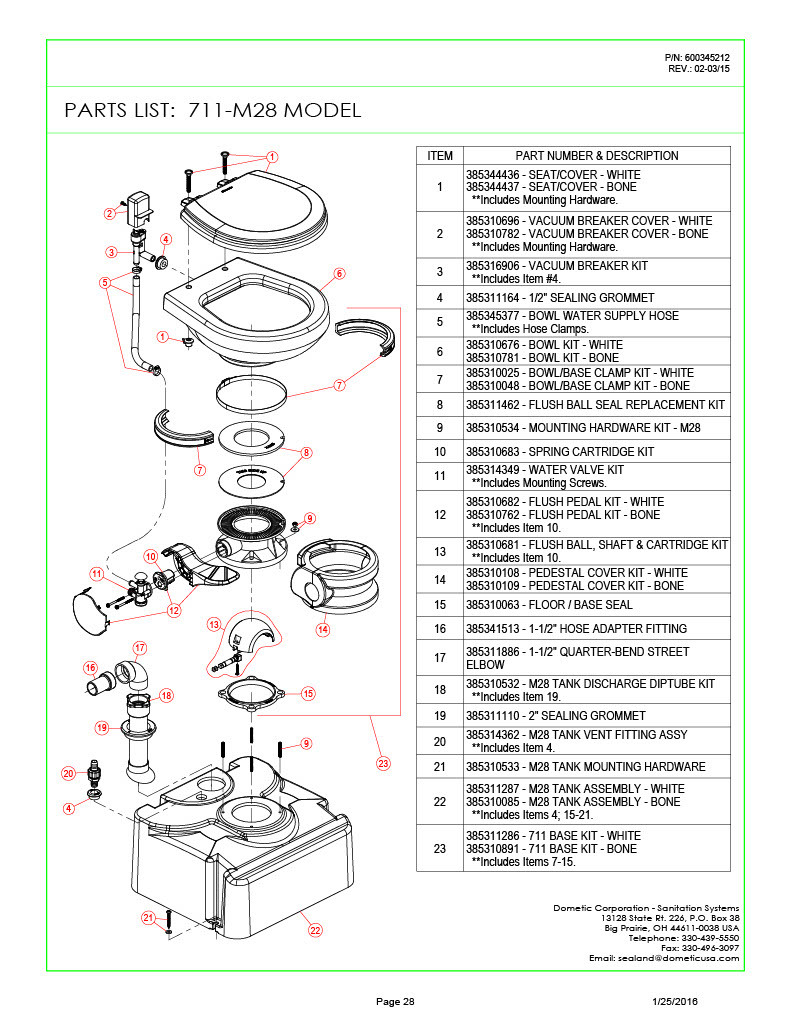

700 Toilet Series
2000 Toilet Series

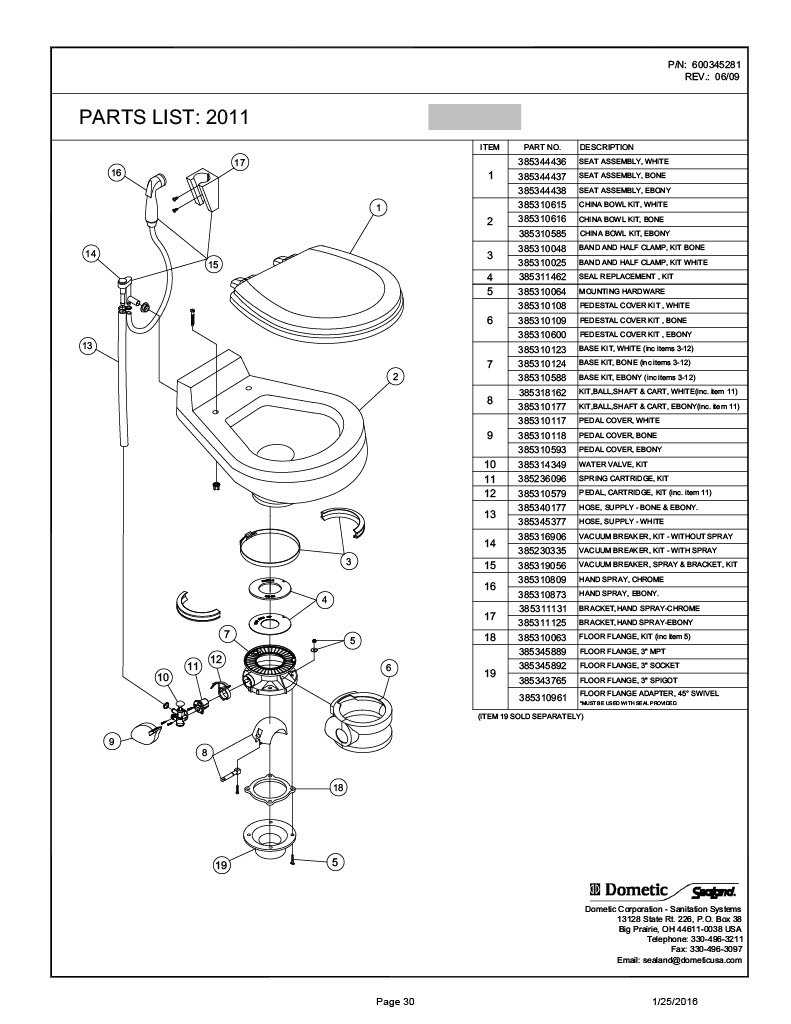

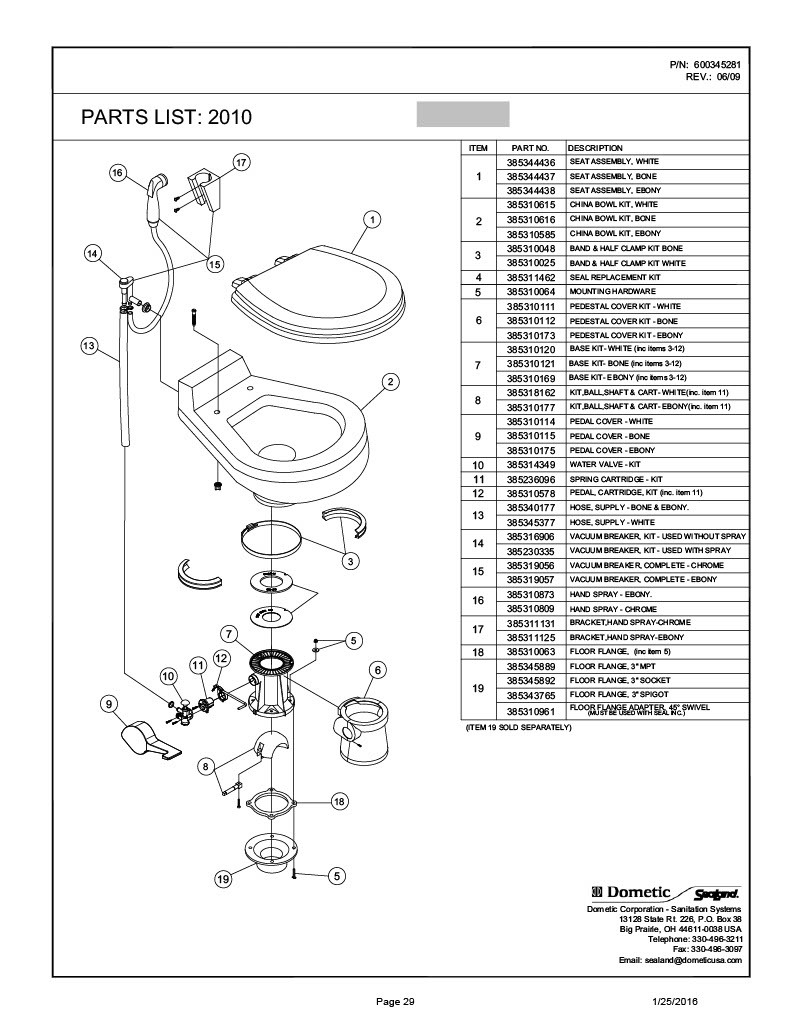

Include: 2010, 2011
Maintaining your Dometic® Traveler Lite® or Traveler® toilet system doesn’t have to be difficult—especially when you have clear diagrams and OEM parts to guide each repair. Whether you're troubleshooting a weak flush, replacing worn seals, or installing new pedal or cartridge components, understanding how each part fits into the system makes all the difference. If you're ready to order genuine replacement parts or need help identifying the right component, explore our full Traveler Lite® and Traveler® parts selection at rvtoiletparts.com. With the right resources and the right parts, your RV toilet will stay reliable, efficient, and road-ready for many adventures ahead.
