Dometic® (SeaLand) VacuFlush® and EcoVac® Toilet Parts Diagrams

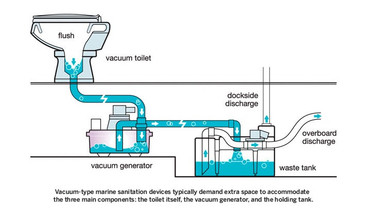

If you own an RV or boat equipped with a Dometic VacuFlush toilet, you already know these systems are powerful, efficient, and incredibly dependable—as long as every seal, hose, valve, and pump component is working exactly as it should. But when something breaks, leaks, or loses vacuum pressure, tracking down the correct replacement part can feel overwhelming. That’s why we created this complete guide to Dometic VacuFlush parts diagrams for every major model in this series.
In this post, we break down each VacuFlush system—and provide easy-to-read diagrams, part labels, and direct links to OEM replacement components available right here at rvtoiletparts.com. Whether you're trying to replace a flush ball seal, rebuild a vacuum pump, or troubleshoot loss of suction, this guide helps you locate the exact part you need—fast and confidently.
Consider this your go-to visual reference for keeping your VacuFlush system performing like new.
100 Series

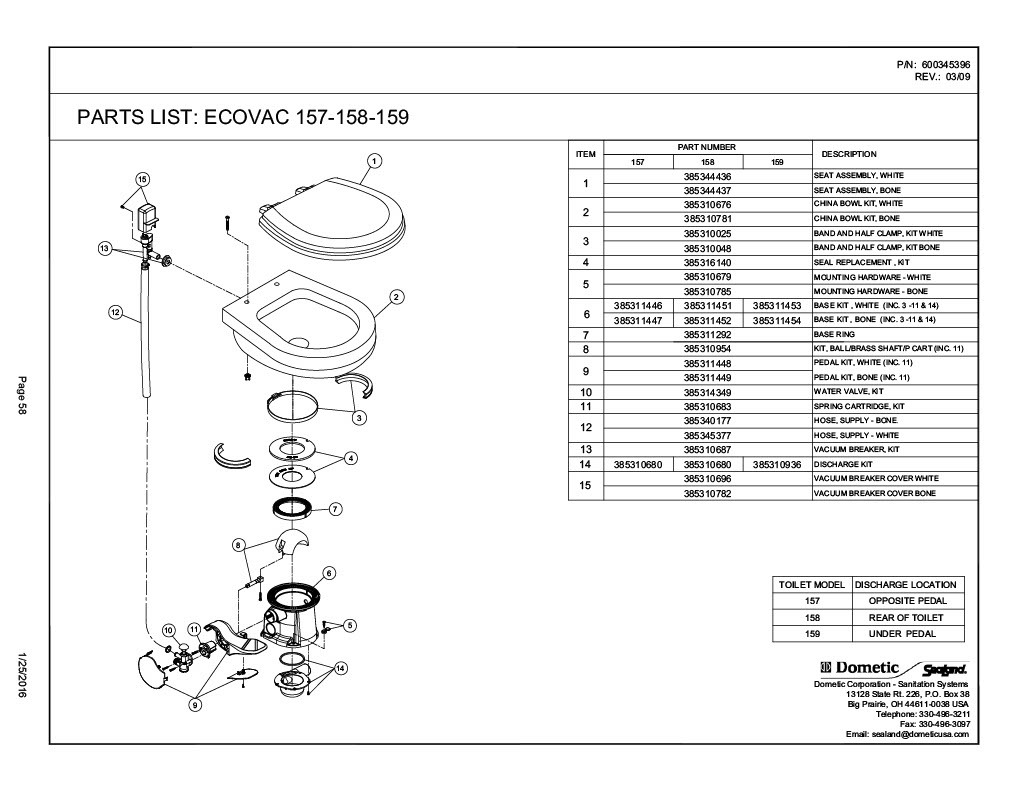

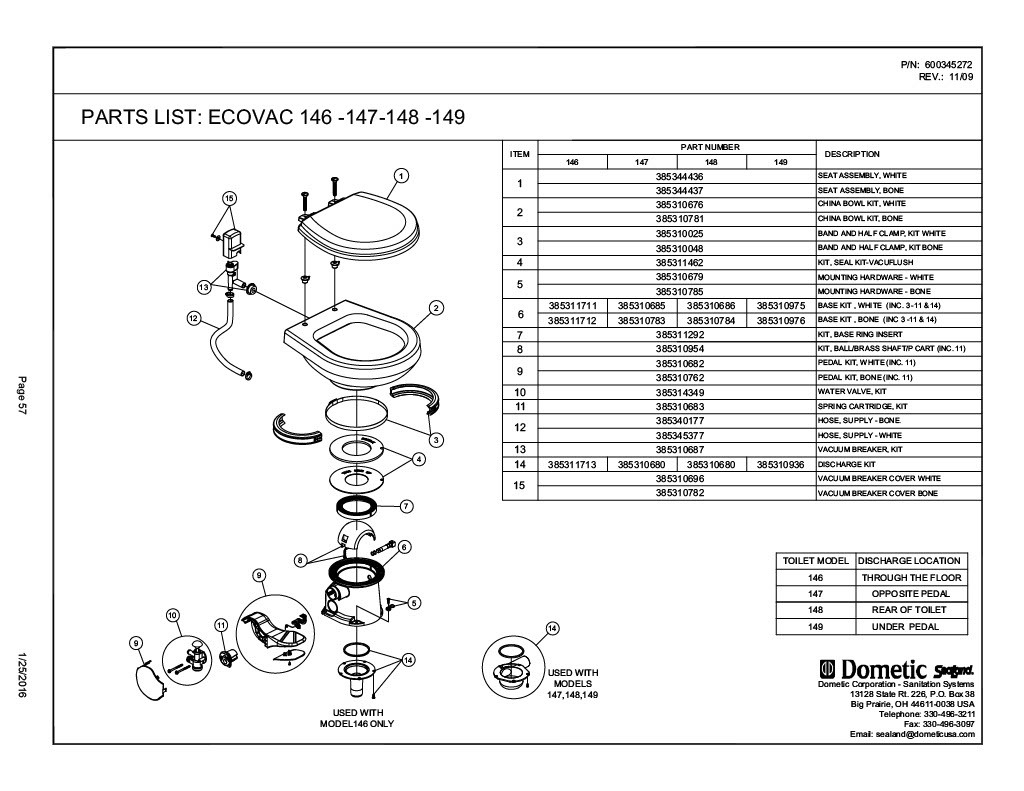

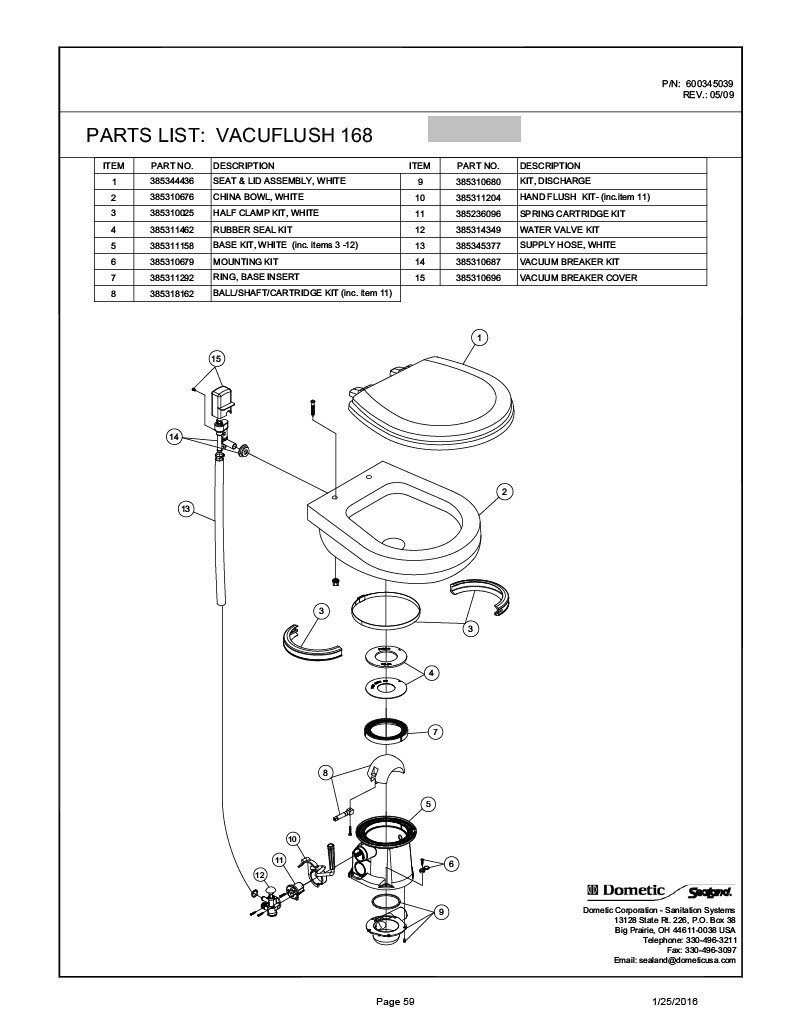

Includes EcoVac 146, 147, 148, 149, 157, 158, 159, and 168
500 Toilet Series

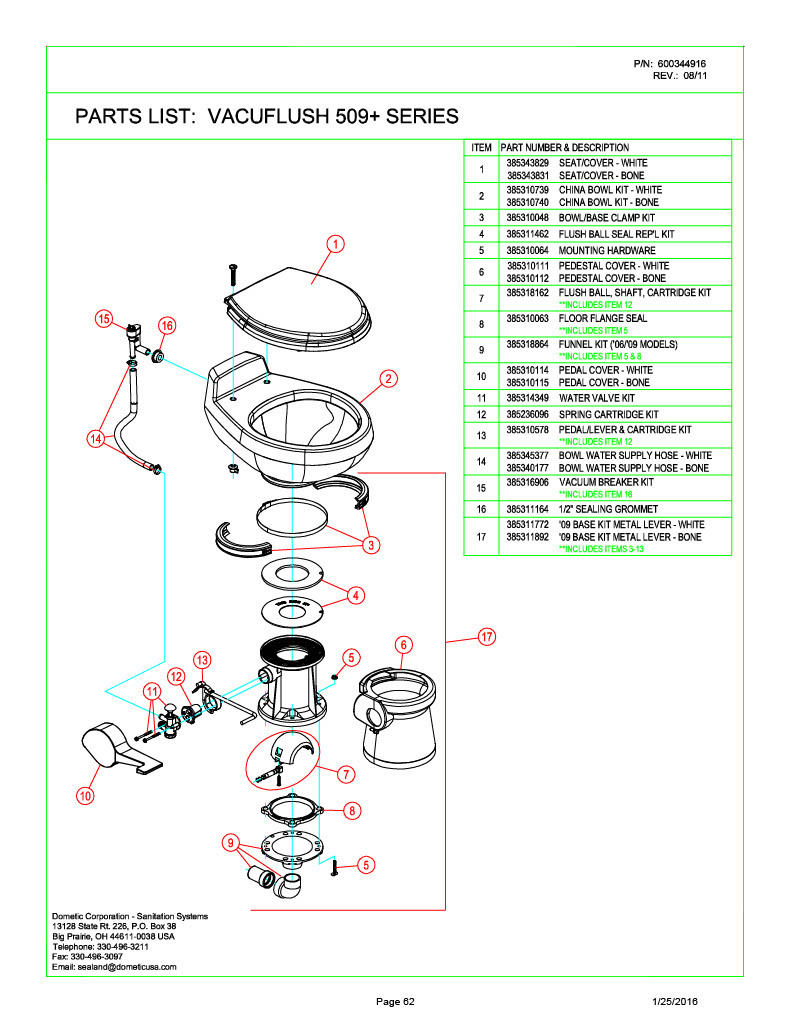

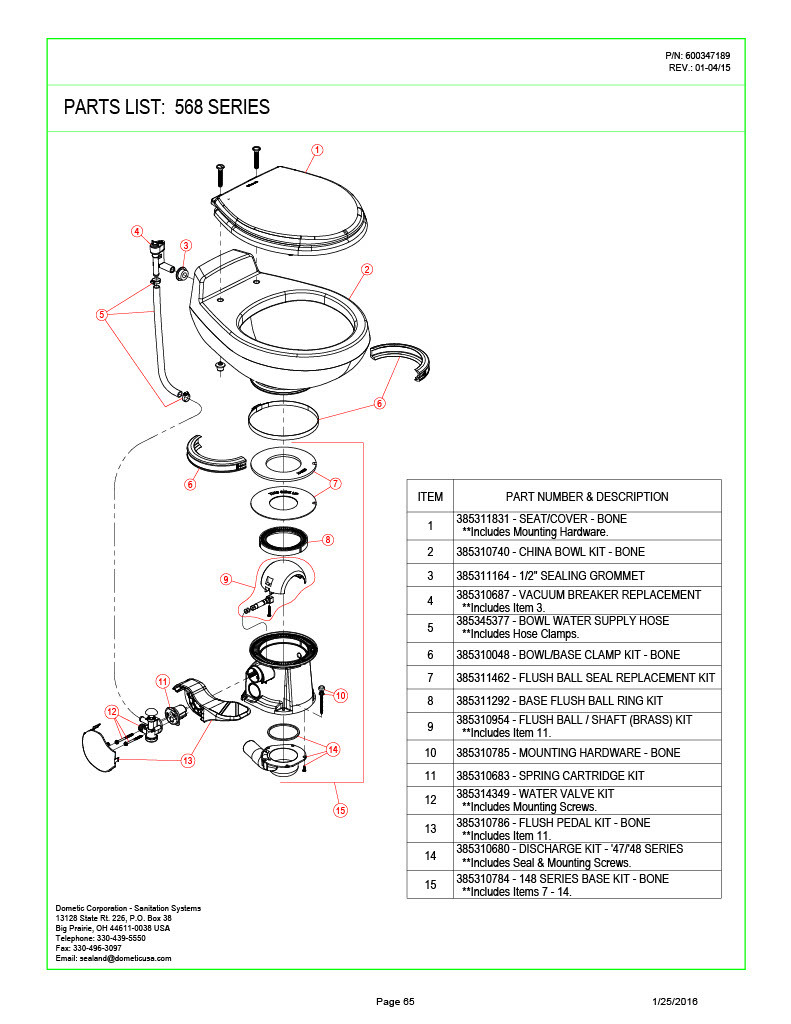

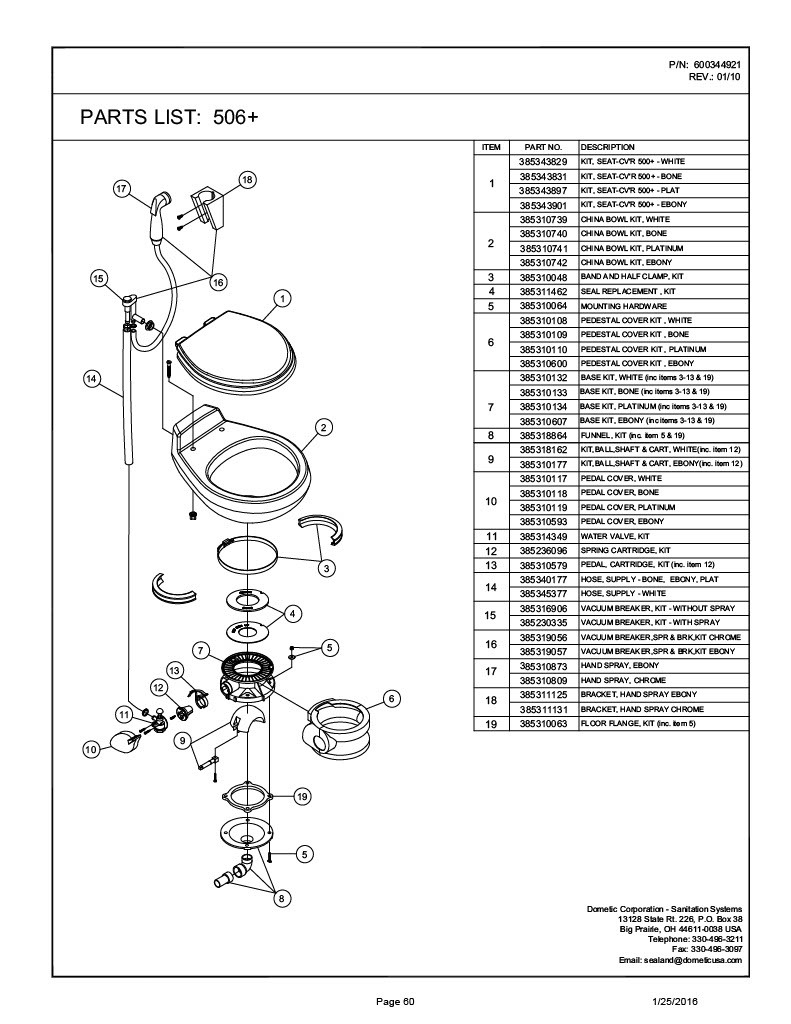

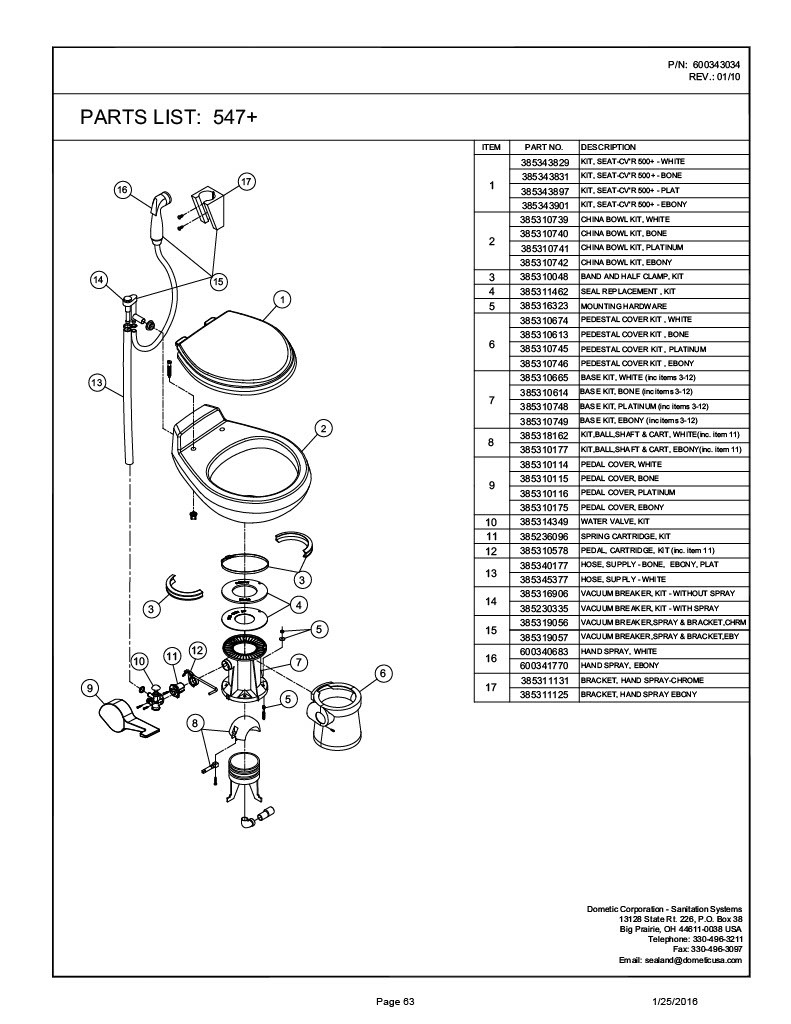

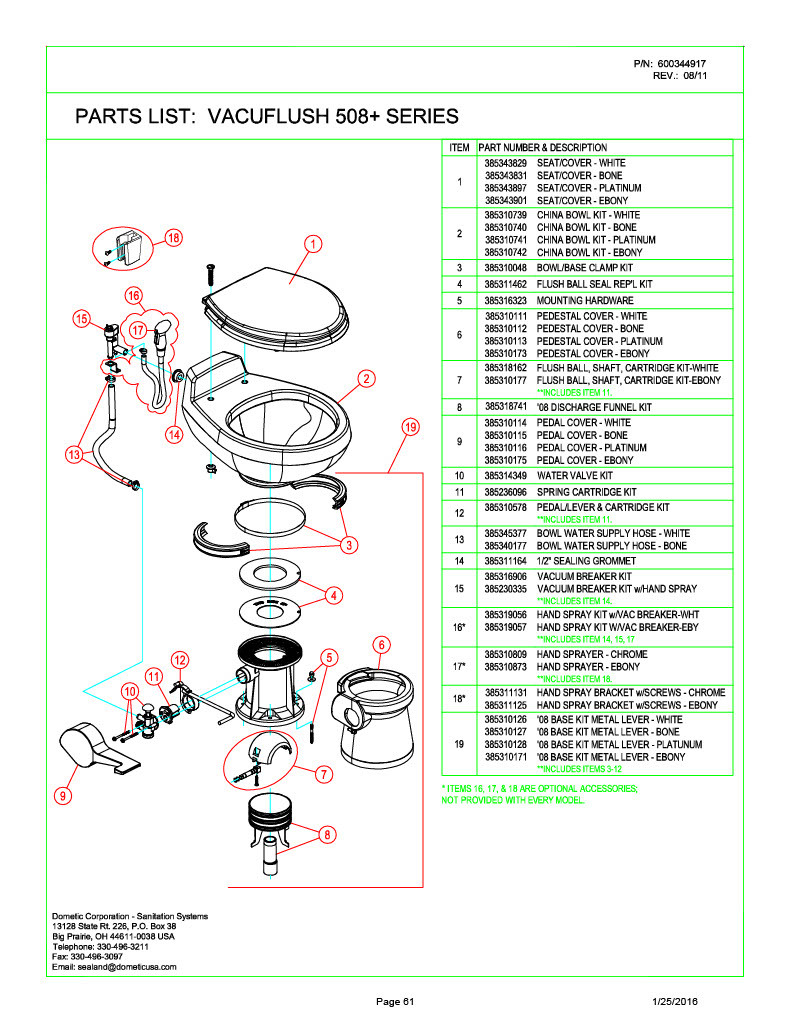

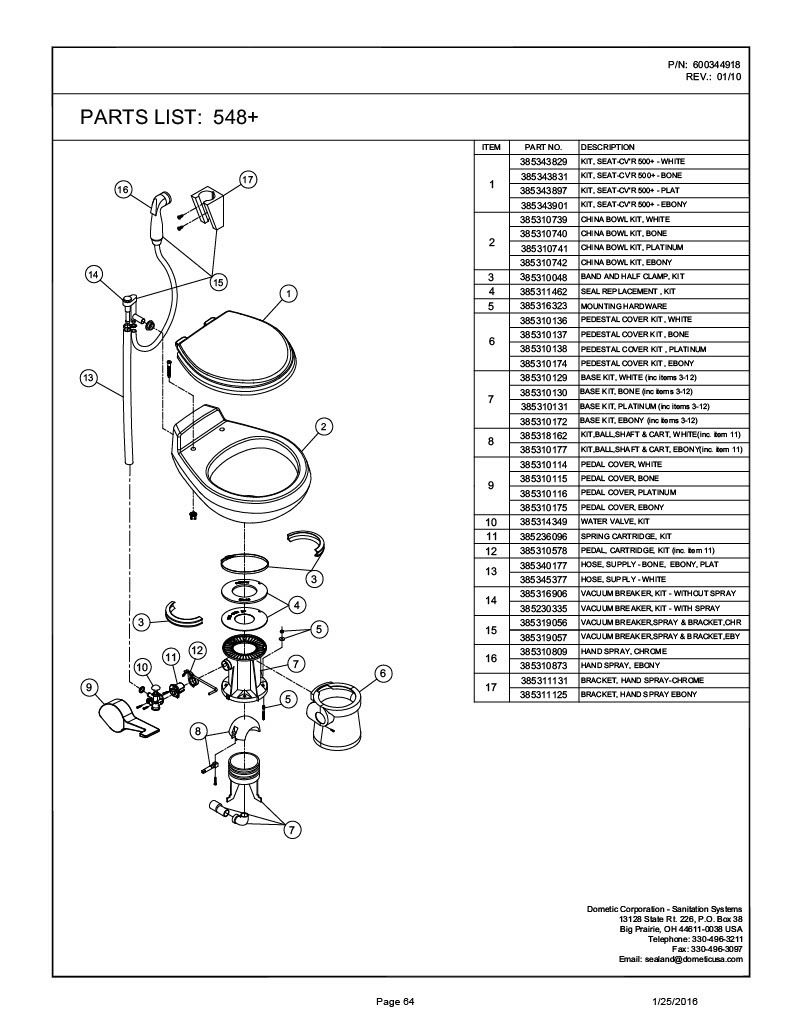

Includes: 506+, 508+, 509+, 547+, 548+ and 568
600 Toilet Series
Includes: 606, 647, 648
700 Toilet Series

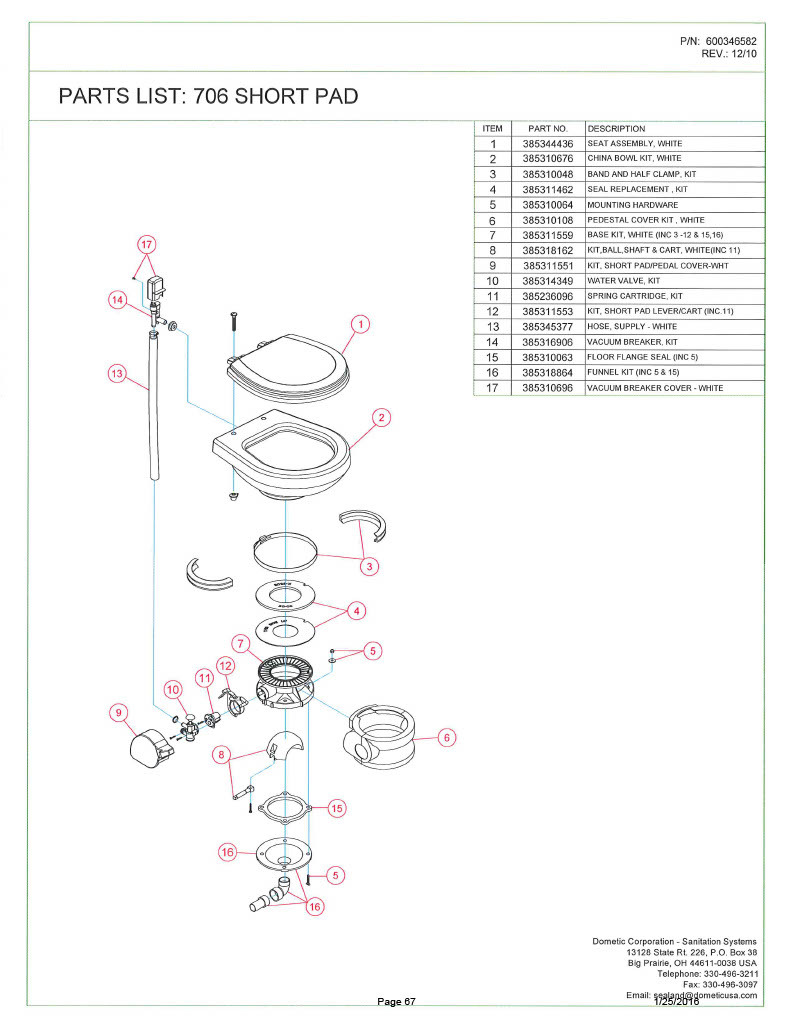

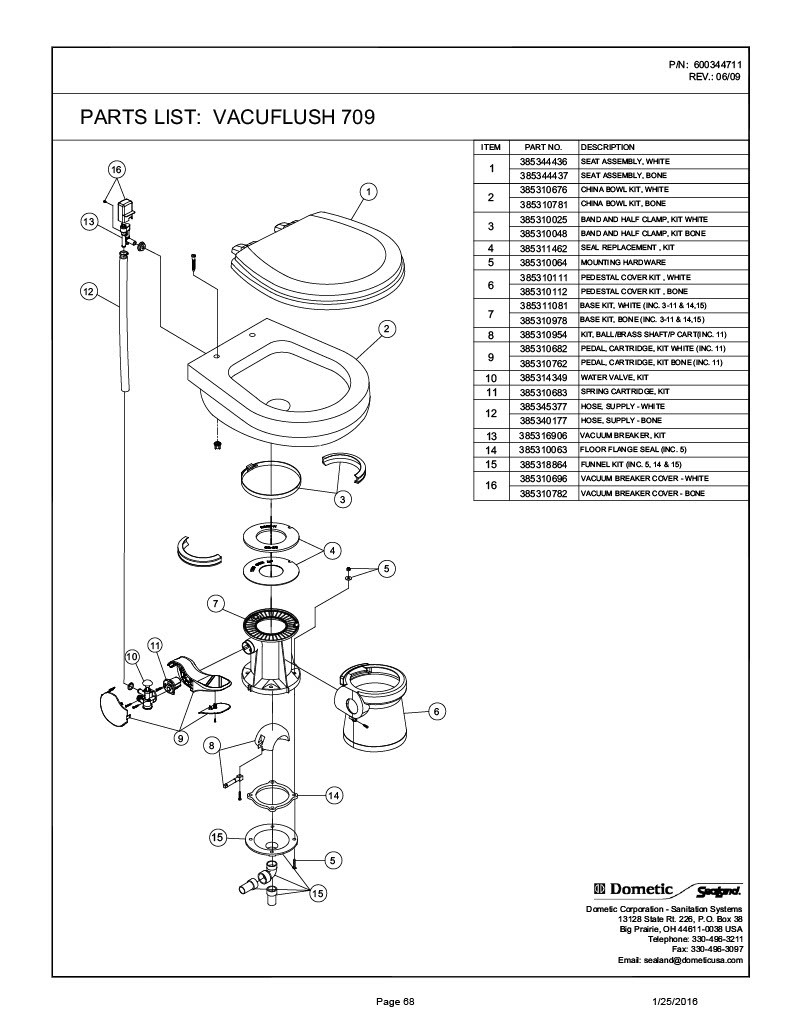

Includes: 706, 709, 748, 749

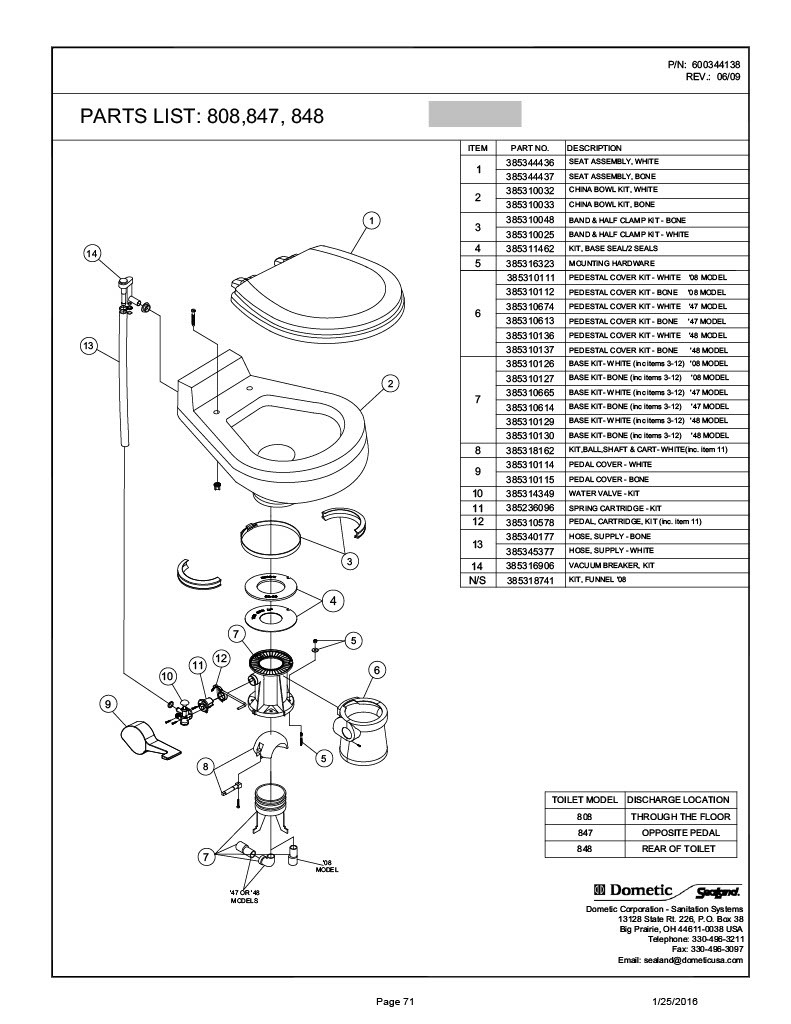

800 Toilet Series

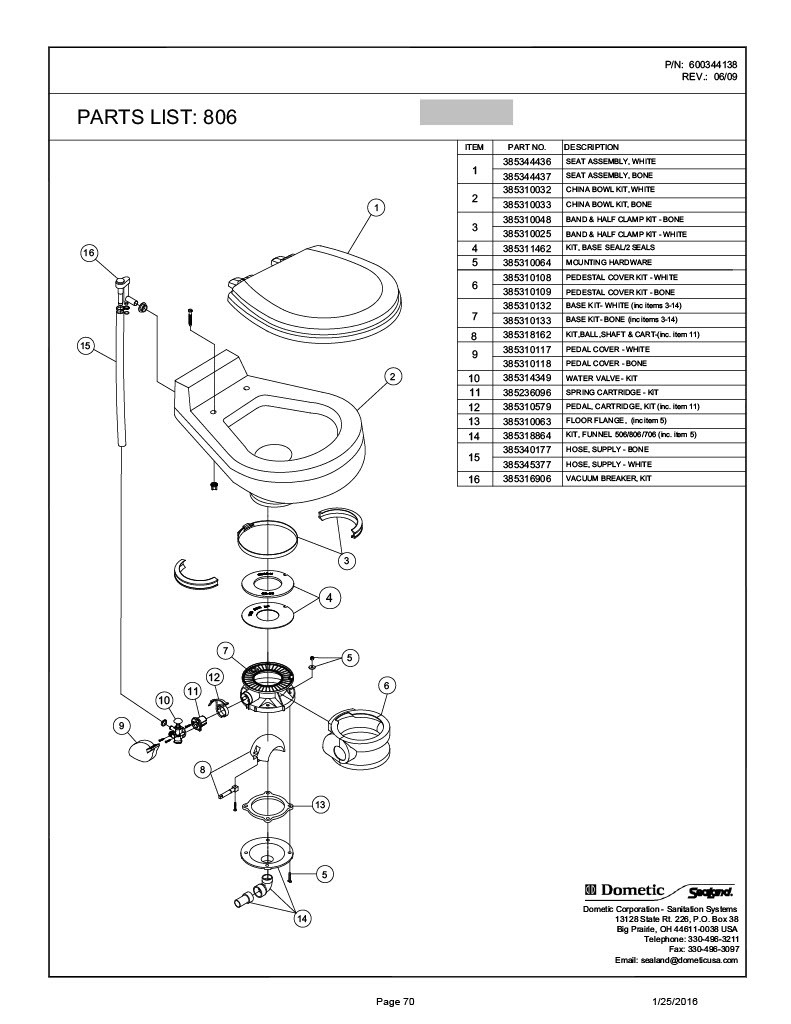

Includes: 806, 808, 847, 848
1000 Toilet Series

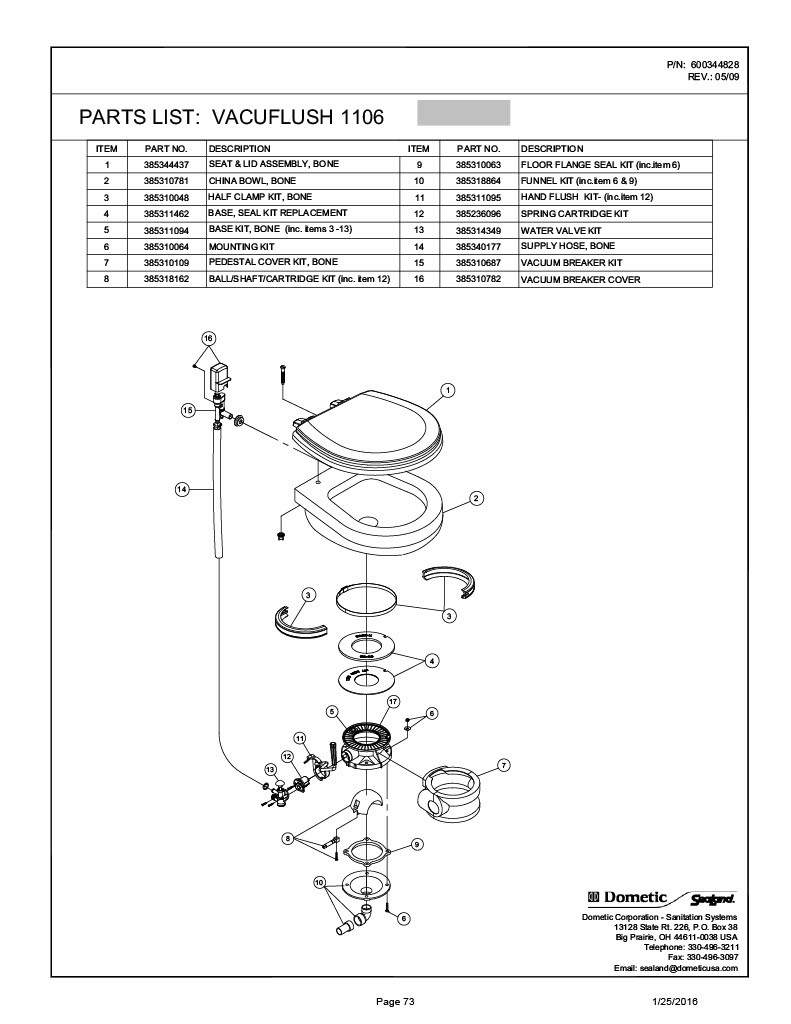

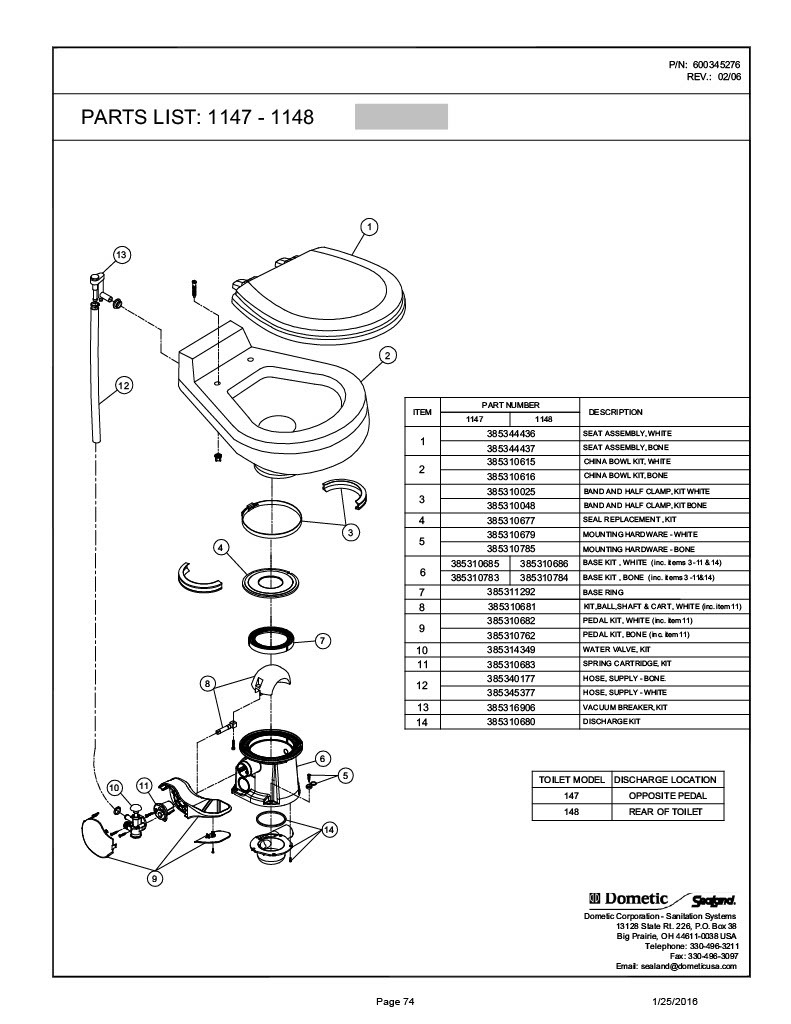

Includes: 1006, 1008, 1047, 1048, 1049, 1106, 1148
1548 Toilet Series

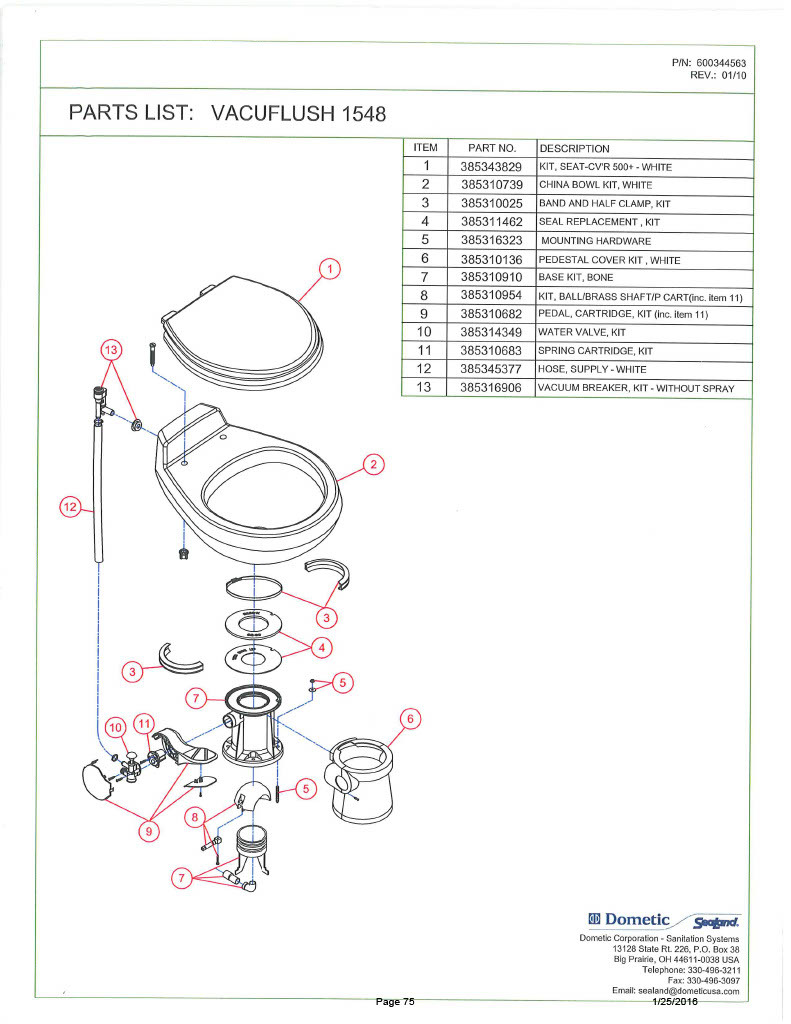

Includes: 1548
Keeping your Dometic VacuFlush system performing at its best doesn’t have to be complicated—especially when you have clear diagrams and OEM parts right at your fingertips. Whether you're tackling a simple seal replacement or a full vacuum pump rebuild, understanding each component is the key to reliable, odor-free operation. If you’re ready to order parts, need help identifying a component, or want expert guidance on maintaining your RV or marine sanitation system, explore our full VacuFlush parts selection at rvtoiletparts.com. With the right parts and the right information, your VacuFlush system will stay strong, efficient, and road-ready for years to come.
