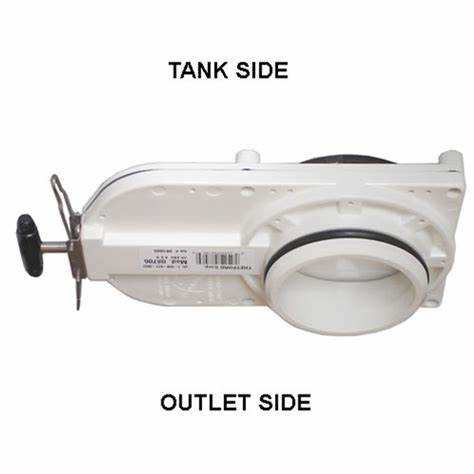

Thetford Slide-EZ Toilet Waste Valve – Part #08706

Thetford Slide-EZ Toilet Waste Valve – Part #08706

(Toilet Basic Slide Valve | Flat-Top Mount | With Handle & O-Ring)

The Thetford Slide-EZ Waste Valve (Part #08706) is an OEM-correct manual slide valve designed for use on select Thetford RV and marine toilet and waste connections, including legacy installations such as the Electra Magic® Model 80. This valve is identified by Thetford as Model 01447 (Version 08706) and is commonly used as a direct replacement where a flat-top, O-ring sealed slide valve is required. Part 08706 identical to #08707 except for the handle style, making it a dependable replacement when your original valve sticks, leaks, or won’t seal.

Built with durable ABS construction, this valve restores smooth slide operation, proper sealing, and leak-free waste control when the original valve becomes stiff, cracked, or fails to close fully.

Key Features & Benefits

• OEM-Correct Thetford Replacement – Identified as Thetford Model 01447 (08706)
• Manual Slide Valve Design – Reliable, mechanical waste control
• Flat-Top Direct Mount – Designed for straightforward replacement installations
• Bottom O-Ring Outlet – Provides a secure, leak-resistant seal
• Compatible With Bayonet Fittings – Works with Thetford bayonet-style drain hardware
• Durable ABS Construction – Corrosion-resistant for RV and marine use

Fittings & Connection Compatibility

• Bayonet Ring Compatible: Thetford 1639
• Drain Accessories Compatibility: Commonly paired with Thetford 1664, 1665, and 2593
• Outlet Style: Bottom O-ring connection, typically fitting into a 3-inch hub

Fits / Compatible With

• Thetford Electra Magic® Model 80 Recirculating RV Toilets
• Select Thetford toilet and holding-tank waste connections using flat-top slide valves

Always verify your original valve style and dimensions before ordering.

What’s Included

• (1) Thetford Slide-EZ Waste Valve – Part #08706
• Integrated Handle
• O-Ring Seal
• Mounting Screws

Specifications

• Thetford Reference: Model 01447
• Part Number: 08706
• Valve Type: Manual slide waste valve
• Mounting Style: Flat-top direct mount
• Outlet: O-ring sealed bottom outlet
• Material: ABS plastic
• Color: White
• Brand: Thetford

Common Issues This Part Solves

• Waste valve leaking at the outlet
• Slide valve sticking or difficult to operate
• Incomplete sealing allowing odor escape
• Cracked or warped original valve housing
• Aging components on discontinued toilet systems

Installation Overview

1. Turn off water and power to the toilet
2. Remove existing slide valve from the waste outlet
3. Clean the mounting surface and inspect the flange
4. Install new Slide-EZ valve using included O-ring and screws
5. Test slide action and verify leak-free operation

Basic hand tools required. DIY-friendly installation.

Frequently Asked Questions (FAQ)

Is this an OEM Thetford part?

Yes. This is an OEM-spec Thetford slide valve identified as Model 01447 (08706).

What is the difference between 08706 and 08707?

These valves are functionally identical; the difference is handle style only.

Will this fit standard RV bayonet fittings?

Yes. It is designed to work with Thetford bayonet rings and drain accessories listed above.

Is this for electric or manual flush toilets?

This is a manual slide valve, used as a lower waste control component.

Can this help stop leaks and odors?

Yes. A properly installed valve with an intact O-ring restores leak-free sealing and odor containment.
