Description

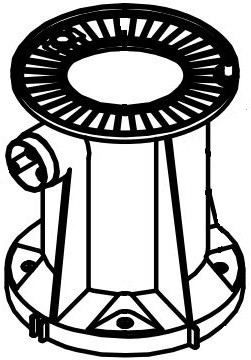

Genuine Dometic Complete Base Kit for 210 & 510H Series Toilets
Stop chasing individual seal, valve, and spring failures — this genuine Dometic complete base kit gives you a full, brand-new base assembly for your toilet in one package. Includes everything needed for a total base rebuild: band/half clamp, base shroud, flush ball seal, flush ball, pedestal cover kit, pedal, water valve, spring cartridge, floor flange seal, and mounting hardware. If your toilet has developed a persistent leak, a failing water valve, a weakening return spring, or several wear-related issues at once, replacing the entire base is often more reliable and cost-effective than repeatedly repairing individual components one at a time.
Compatible With:
- Dometic 510H & 510H-PS Tall Gravity Toilet
- Dometic 210 Traveler Lite (Wood Seat)
- Dometic 110 Model (cross-referenced by some distributors — confirm your exact model before ordering)
What's Included:
- Band / Half Clamp
- Base Shroud
- Flush Ball Seal
- Flush Ball
- Pedestal Cover Kit
- Pedal
- Water Valve
- Spring Cartridge
- Floor Flange Seal
- Mounting Hardware
Key Features:
- Genuine Dometic OEM complete base assembly
- Bone finish to match bone-colored 210/510H toilets
- All-in-one kit — no need to separately source seals, springs, valve, clamp, or pedal components
- Straightforward installation: disconnect water line, remove 4 mounting bolts, swap the base, reconnect
- Reported install time of approximately 1 hour from teardown to completion
How to Confirm This Is the Right Base for You
This base kit is designed for Dometic 210 and 510H (including 510H-PS) toilets in bone. If your toilet is white, you'll want part #385311128 instead. Check your toilet's data plate to confirm your exact model number before ordering, or contact us to verify fitment.
Frequently Asked Questions
Why replace the whole base instead of individual parts?
If you've already replaced seals, valve components, or springs separately and are still experiencing issues, a full base replacement addresses every wear point at once — many customers find this more reliable and ultimately more cost-effective than repeated individual part replacements over time.
What's included in this kit?
This is a complete base assembly including the band/half clamp, base shroud, flush ball seal, flush ball, pedestal cover kit, pedal, water valve, spring cartridge, floor flange seal, and mounting hardware — everything needed for a full rebuild in one purchase.
How difficult is this to install?
Reported install time is about one hour: loosen the band clamp to remove the bowl, disconnect the water line, remove the four mounting bolts holding the old base to the floor, then reverse the process to install the new base.
What's the difference between this and part #385311128?
385311129 is the bone version of this base kit; 385311128 is the identical kit in white. Choose whichever matches your toilet's finish.
Why is this a special order item?
Complete base kits are larger, less commonly-stocked components that Dometic supplies directly upon order rather than keeping in standard retail inventory.
You May Also Need
- White Complete Base Kit, 210/510H (part #385311128)
- Dometic Mounting Bolt Hardware Kit
- Dometic Pedal Cover, Bone (part #385311180)
Special Order Item
Please note: This is a special order item.
- Lead times may vary based on Dometic manufacturing and availability — contact us for current estimated timing
- Special order items are non-cancelable and non-returnable once the order has been placed with the manufacturer, except in the case of a warranty issue or shipping damage
- Orders containing both in-stock and special-order items may ship separately or be held until all items are available
