Dometic® Traveler Lite 210 Model

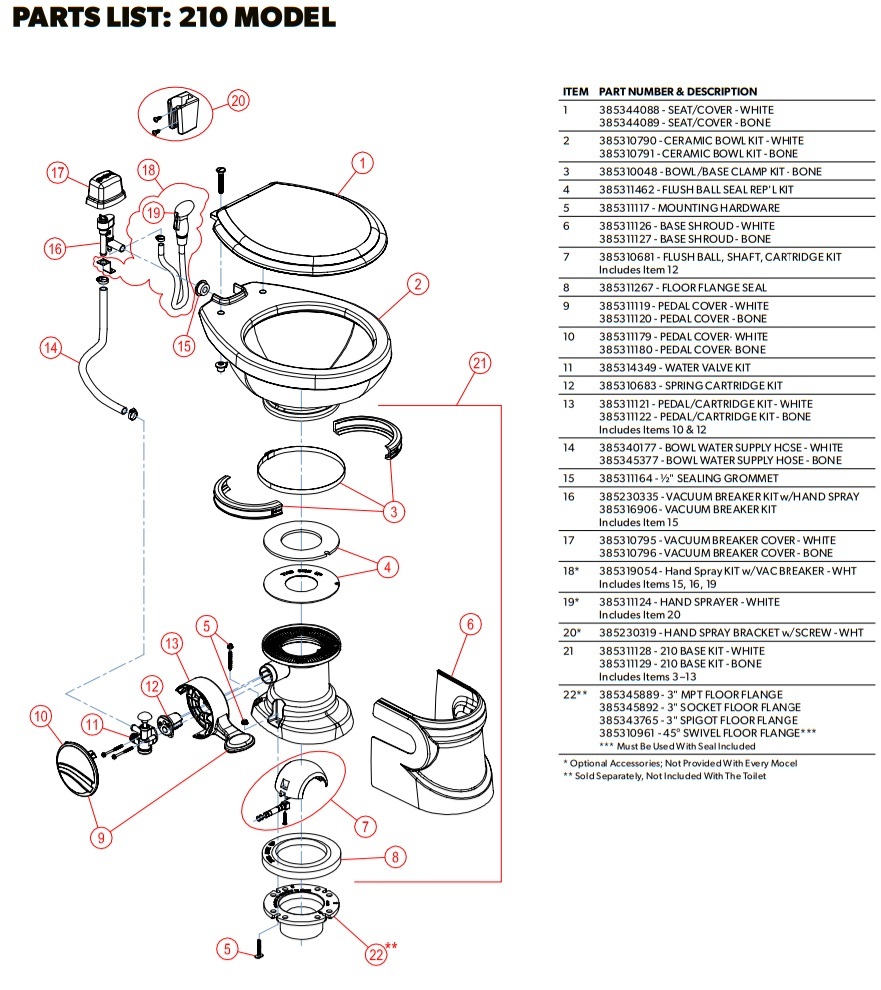

Find your part on the diagram

Click any numbered point on the diagram to jump straight to that part. On a phone, tap "View full-size diagram" to zoom in for a closer look.

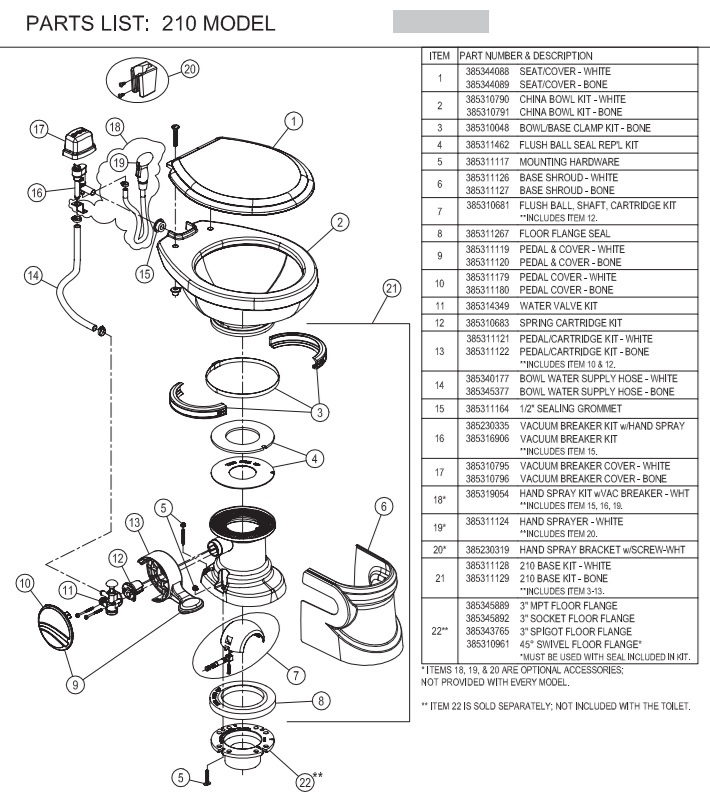

Dometic Traveler Lite 210 exploded parts diagram
Shop this part Unavailable
Item No. reference
Matches the table printed on the diagram. Items 18–20 are optional accessories, not provided with every model. Item 22 variants are sold separately, not included with the toilet.
1
Seat/Cover — White
385344088 (supplied as 385312113)
 Shop →
1
Seat/Cover — Bone
385344089 (supplied as 385312114)
 Shop →
2
Ceramic Bowl Kit — White
385310790 — Unavailable
 Unavailable
2
Ceramic Bowl Kit — Bone
385310791 — Unavailable
 Unavailable
3
Bowl/Base Clamp Kit — Bone
385310048
 Shop →
4
Flush Ball Seal Rep'l Kit
385311462
 Shop →
5
Mounting Hardware
385311117 — Unavailable
 Unavailable
6
Base Shroud — White
385311126 — Unavailable
 Unavailable
6
Base Shroud — Bone
385311127 — Unavailable
 Unavailable
7
Flush Ball, Shaft, Cartridge Kit (Includes Item 12)
385310681
 Shop →
8
Floor Flange Seal
385311267
 Shop →
9
Pedal Cover — White
385311119
 Shop →
9
Pedal Cover — Bone
385311120
 Shop →
10
Pedal Cover — White
385311179
 Shop →
10
Pedal Cover — Bone
385311180
 Shop →
11
Water Valve Kit
385314349
 Shop →
12
Spring Cartridge Kit
385310683
 Shop →
13
Pedal/Cartridge Kit — White (Includes Items 10 & 12)
385311121
 Shop →
13
Pedal/Cartridge Kit — Bone (Includes Items 10 & 12)
385311122
 Shop →
14
Bowl Water Supply Hose — White
385340177 — Listed on-site as Bone
 Shop →
14
Bowl Water Supply Hose — Bone
385345377 — Unavailable
 Unavailable
15
1/2" Sealing Grommet
385311164
 Shop →
16
Vacuum Breaker Kit w/ Hand Spray
385230335
 Shop →
16
Vacuum Breaker Kit (Includes Item 15)
385316906
 Shop →
17
Vacuum Breaker Cover — White
385310795 — Unavailable
 Unavailable
17
Vacuum Breaker Cover — Bone
385310796 — Unavailable
 Unavailable
18
Hand Spray Kit w/ Vac Breaker — White (Includes Items 15, 16, 19)
385319054* — Optional accessory
 Shop →
19
Hand Sprayer — White (Includes Item 20)
385311124* — Optional accessory
 Shop →
20
Hand Spray Bracket w/ Screw — White
385230319* — Optional accessory — Unavailable
 Unavailable
21
210 Base Kit — White (Includes Items 3–13)
385311128
 Shop →
21
210 Base Kit — Bone (Includes Items 3–13)
385311129
 Shop →
22
Floor Flange — 3" MPT
385345889** — Sold separately
 Shop →
22
Floor Flange — 3" Socket
385345892** — Sold separately
 Shop →
22
Floor Flange — 3" Spigot
385343765** — Sold separately
 Shop →
22
Floor Flange — 45° Swivel (Must Be Used With Seal Included)
385310961** — Sold separately — Unavailable
 Unavailable
