Thetford RV Toilet Parts Diagrams (Current Models): Interactive Aqua-Magic & Bravura Diagrams

New: Interactive Parts Diagrams

Pick your toilet. Click the part. Order it.

Choose your Thetford model below to open its interactive exploded diagram, or jump straight to its most-replaced parts.

Thetford Aqua-Magic Residence RV toilet
Residence

Home-style height and comfort
Diagram Parts
Thetford Aqua-Magic Style II RV toilet
Style II

Ceramic bowl, shares most parts with the Residence
Diagram Parts
Thetford Aqua-Magic Style Plus RV toilet
Style Plus

Cable-operated pedal, 100% bowl-coverage flush
Diagram Parts
Thetford Aqua-Magic VI RV toilet
VI

Lightweight all-plastic, cable-driven flush
Diagram Parts
Thetford Bravura RV toilet
Bravura

Many service kits now limited availability
Diagram Parts

Because guessing plumbing parts is how horror movies begin…

If you own an RV, there’s a solid chance your porcelain throne was crowned by the undisputed monarch of mobile sanitation: Thetford.

From campground classics to high-rise ceramic royalty, Thetford toilets dominate RV bathrooms across North America. And when one starts leaking, sticking, squeaking, or committing full-on mutiny—you need the right parts diagram, not crossed fingers and a YouTube rabbit hole.

Having trouble finding the part for your Thetford RV toilet? Find your model (see "how to find your model" blog here), and then check the exploded diagrams sorted by model below:

Only have an item number from the sticker? Look up your model by item number in seconds.

Not Sure What Broke? Start With the Symptom

Find what you’re seeing, then grab the part for your model.

Symptom Usual culprit Part # by model
Bowl won’t hold water Waste ball / blade seal Residence & Style II: 42141
Style Plus: 34120
VI: 31708
Bravura: 31112
Water on the floor behind the toilet, or the bowl slowly fills on its own Water valve Residence & Style II: 42049
Style Plus: 34100
VI: 31705
Bravura: 31113
Leak from the top rear only while flushing Vacuum breaker Residence, Style II & Style Plus: 34122
Pedal goes down but the waste ball won’t open, or the pedal feels limp Drive arm, pedal cable or pedal Residence & Style II: 42209
Style Plus: 34106
VI: 31711
Bravura: 33372 (white) / 33386 (parchment)
Ball opens but no water enters the bowl Water module link VI: 36528
Pedal won’t spring back Water valve return spring Style Plus: 34110
Weak rinse or dry spots in the bowl Flush nozzle Residence & Style II: 34124 (white) / 34125 (bone)
Style Plus: 34127
VI: 31857
Sewer smell or seepage at the floor Closet flange seal All models: 33239
Seal + bolt kits: Residence & Style II 42115, Style Plus & VI 28971 / 28972, Bravura 31115

Own a Residence or Style II? They share the same waste ball seal (42141), water valve (42049), drive arm kit (42209), vacuum breaker (34122), nozzles, pedals, seats and closet bolt kit (42115). One parts order covers both.


Thetford Aqua-Magic Residence Parts

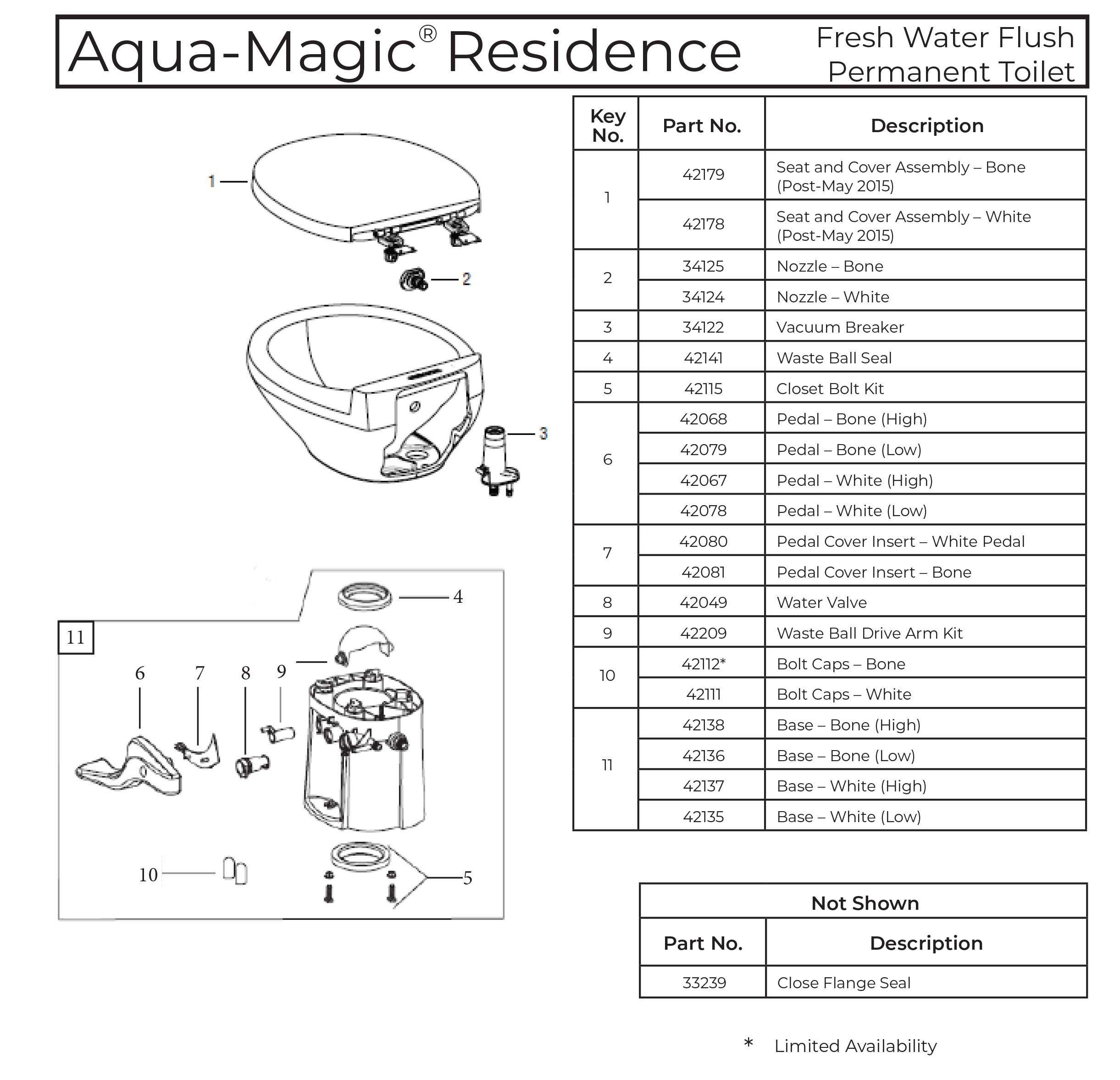

Thetford Aqua-Magic Residence exploded parts diagram

The Thetford Aqua Magic Residence RV Toilet brings home-style height and comfort into your RV. It’s the unofficial champion of “I forgot I was camping.”

Open Interactive Diagram Shop All Residence Parts

Most-Replaced Residence Parts

Thetford 42141 Waste Ball Seal
Waste Ball Seal

#42141
Fixes: Bowl won’t hold water
Shop
Thetford 42049 Water Valve Kit
Water Valve Kit

#42049
Fixes: Leaks behind toilet, ghost filling
Shop
Thetford 34122 Vacuum Breaker
Vacuum Breaker

#34122
Fixes: Leak at top rear when flushing
Shop
Thetford 42115 Closet Bolt Package w/ Flange Seal
Closet Bolt Package w/ Flange Seal

#42115
Fixes: Sewer smell, leak at floor
Shop
Repair notes: common Residence problems and fixes

Waste Ball Seal (Blade Seal) Part #42141

This is the number one replacement part. It is the rubber ring that sits at the bottom of the bowl.

  • The Issue: Over time, the seal dries out or accumulates mineral deposits, causing the bowl to stop holding water.

  • Maintenance Tip: Before replacing it, try cleaning it with a soft brush and applying a seal conditioner. If it still leaks, it's time for a new one

Water Valve Assembly Part #42049

The water valve controls the flow of water into the bowl when you press the pedal.

  • The Issue: These are prone to cracking if the RV isn't winterized properly (residual water freezes and expands) or can leak from the internal diaphragm after a few years.

  • Symptom: You'll see water pooling on the floor behind the toilet or notice the toilet "ghost flushing" (slowly filling on its own).

Vacuum Breaker Part #34122

Located at the back of the toilet, this part prevents backflow into your fresh water system.

  • The Issue: It can develop a hairline crack or the internal check valve can fail.

  • Symptom: Water leaking from the top-rear of the toilet specifically during or immediately after a flush.

Closet Bolt Package with Flange Seal (Part #42115)

This is the thick foam or rubber gasket between the toilet base and the RV floor.

Just need the foam floor seal? The standalone Closet Flange Seal (Part #33239) fits the Residence, Style II, Style Plus, VI and Bravura.

  • The Issue: If the toilet mounting bolts loosen over time, the toilet "rocks," which eventually crushes or shifts the seal.

  • Symptom: Water or odors escaping from the very base of the toilet where it meets the floor.

Cracked bowl? Replace the whole toilet: High white | High bone | Low white | Bone


Thetford Aqua-Magic Style II Parts

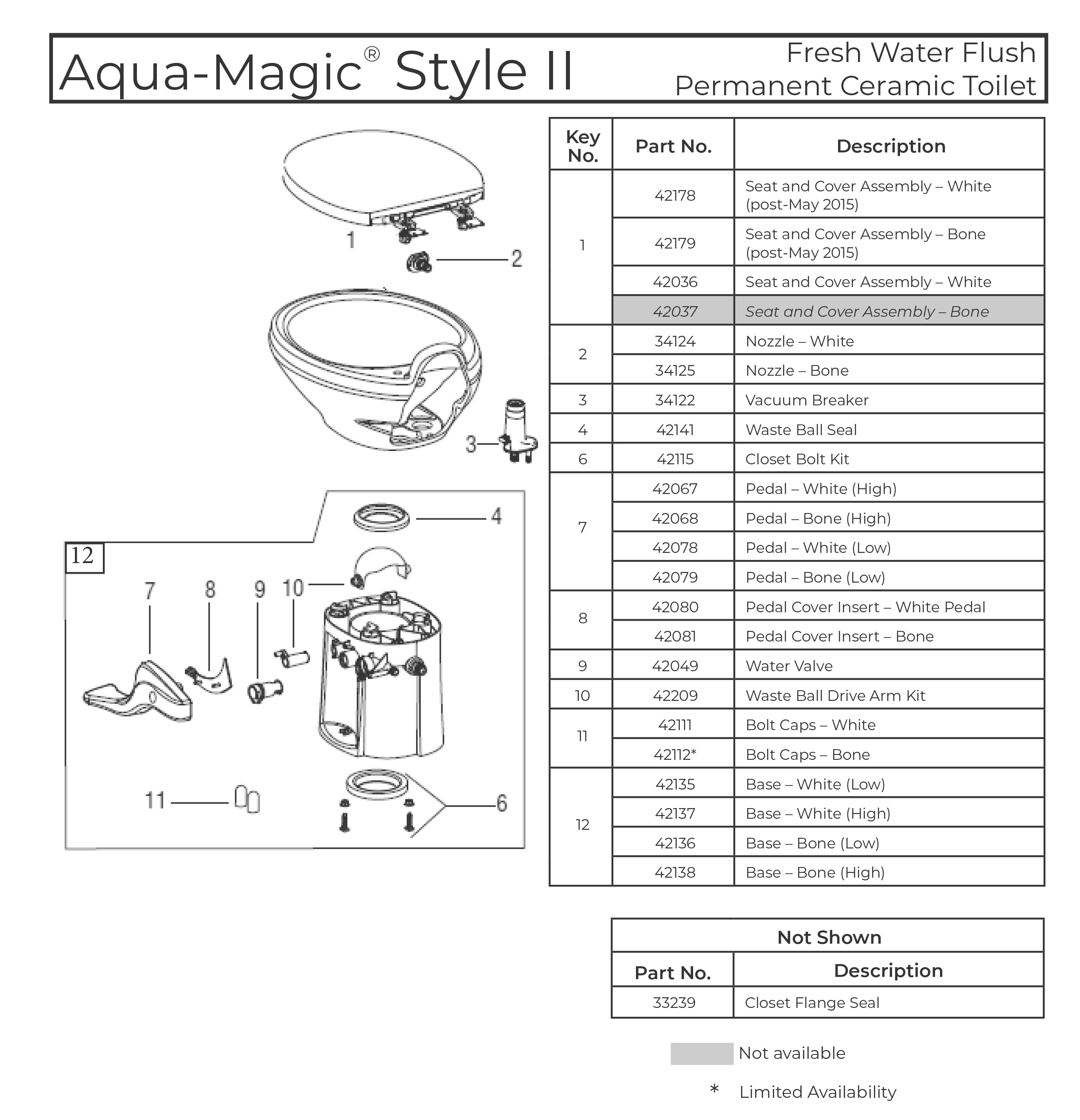

Thetford Aqua-Magic Style II exploded parts diagram

The Thetford Aqua Magic Style II RV Toilet is one of the most widely installed RV toilets ever manufactured. Simple. Tough. And endlessly repairable.

Open Interactive Diagram Shop All Style II Parts

Most-Replaced Style II Parts

Thetford 42049 Water Valve Kit
Water Valve Kit

#42049
Fixes: Leaks behind toilet, won’t shut off
Shop
Thetford 42141 Waste Ball Seal
Waste Ball Seal

#42141
Fixes: Bowl won’t hold water
Shop
Thetford 42209 Waste Ball and Drive Arm Kit
Waste Ball & Drive Arm Kit

#42209
Fixes: Pedal moves, ball won’t open
Shop
Thetford 34122 Vacuum Breaker
Vacuum Breaker

#34122
Fixes: Leak at top rear when flushing
Shop
Repair notes: common Style II problems and fixes

Water Valve Module (Part #42049)

This is the "brain" of the flush. Because the Style II is often used in high-end units, it's frequently subjected to high water pressure, which can wear out the internal seals faster than the bowl itself.

  • The Issue: It is highly susceptible to freeze damage if even a teaspoon of water is left in the valve during winter.

  • Symptom: Water leaking from the back of the toilet or the toilet staying "on" and overfilling the bowl.

Waste Ball Seal (Part #42141)

The Style II seal is specifically designed to mate with the ceramic bowl.

  • The Issue: Mineral buildup on the ceramic rim can "scar" the rubber seal over time.

  • Maintenance Tip: Thetford recommends replacing this seal every 4 to 6 years, but if you live in a hard-water area, it may be closer to 3 years. Keeping it lubricated with silicone grease (not petroleum jelly!) extends its life significantly.

Waste Ball & Drive Arm Kit (Part #42209)

The Style II uses a drive arm to rotate the waste ball.

  • The Issue: If the waste ball seal gets too dry, it creates friction. This puts stress on the plastic drive arm, which can eventually snap or strip the "teeth" that connect to the foot pedal.

  • Symptom: You press the pedal, but the ball doesn't move, or it only opens halfway.

Vacuum Breaker (Part #34122)

This is the anti-siphon valve located at the top rear.

  • The Issue: Small cracks in the plastic housing.

  • Symptom: You'll notice a small puddle forming on the "ledge" behind the seat after a flush.

Cracked bowl? Replace the whole toilet: High white | High bone | Low white | Low bone


Thetford Aqua-Magic Style Plus Parts

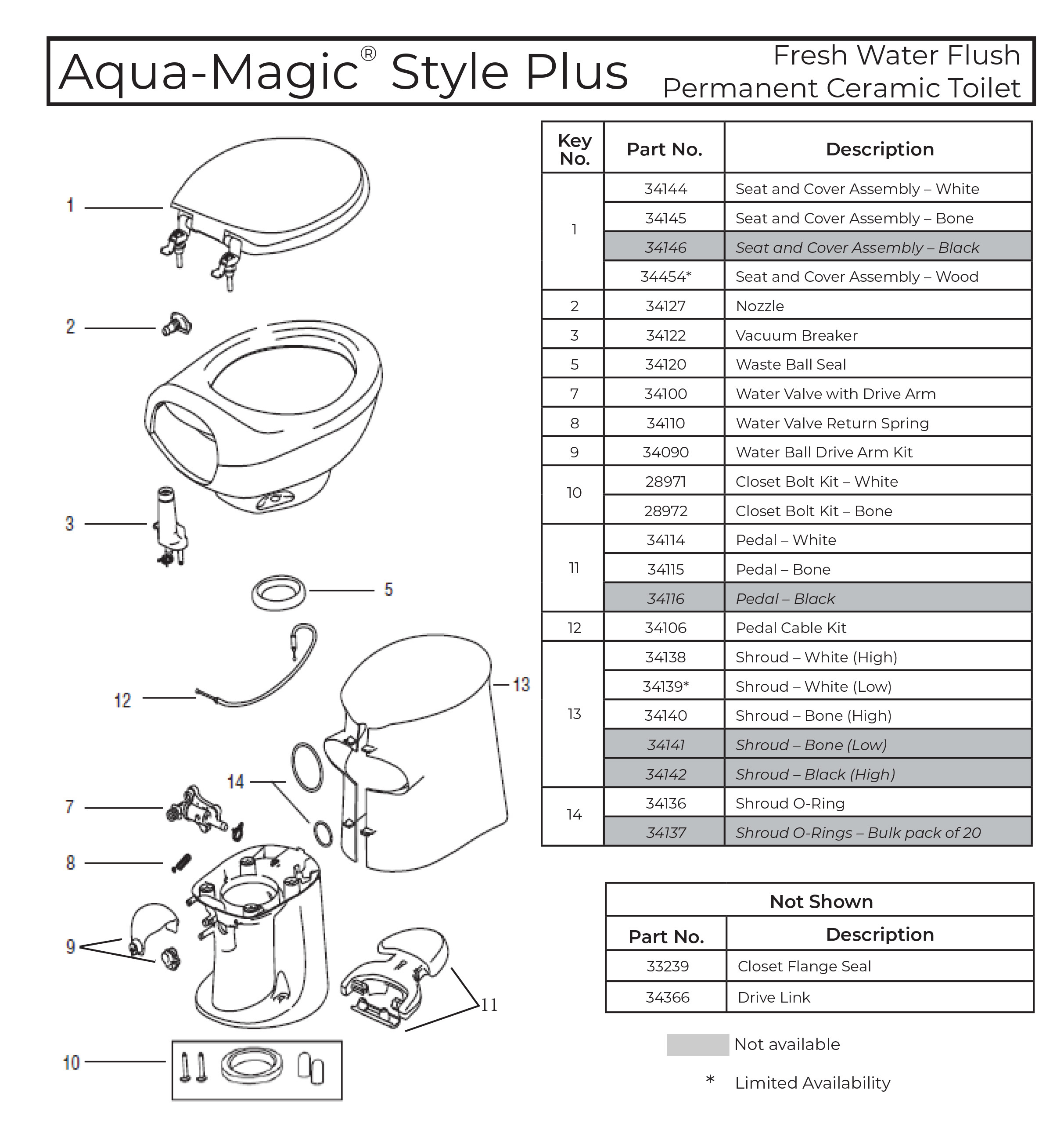

Thetford Aqua-Magic Style Plus exploded parts diagram

The Thetford Aqua Magic Style Plus RV Toilet adds pressurized flush performance to the Aqua Magic lineup. Translation: it flushes like it means business.

The Thetford Aqua-Magic Style Plus is the "luxury hybrid" of the lineup, featuring a ceramic bowl and a plastic base. Its internal mechanism is more complex than the Style II because it utilizes a cable-pull system rather than a direct drive arm, which introduces a few unique failure points.

Open Interactive Diagram Shop All Style Plus Parts

Most-Replaced Style Plus Parts

Thetford 34100 Water Valve w/ Drive Arm
Water Valve w/ Drive Arm

#34100
Fixes: Leaks, phantom filling
Shop
Thetford 34120 Waste Ball Seal
Waste Ball Seal

#34120
Fixes: Bowl won’t hold water
Shop
Thetford 34106 Flush Pedal Cable Kit
Flush Pedal Cable Kit

#34106
Fixes: Pedal limp or disconnected
Shop
Thetford 34110 Water Valve Return Spring
Water Valve Return Spring

#34110
Fixes: Pedal won’t spring back
Shop
Thetford 34127 Flush Nozzle Kit
Flush Nozzle Kit

#34127
Fixes: Weak rinse, dry spots
Shop
Repair notes: common Style Plus problems and fixes

Water Valve with Drive Arm (Part #34100)

Like the other models, the water valve is the most frequent casualty, especially from freeze damage or high-pressure fatigue.

  • The Difference: On the Style Plus, the valve includes a specific drive arm that connects to the cable system.

  • Symptom: Water leaking from the rear or a "phantom fill" where the bowl slowly fills up while you aren't looking.

Waste Ball Seal (Part #34120)

This is the standard rubber lip seal at the bottom of the bowl.

  • The Issue: Because the Style Plus has a very powerful "100% bowl coverage" flush, the seal can sometimes get displaced or catch debris more easily than the simpler models.

  • Maintenance Tip: If it's not holding water, try the "plunger trick": push the seal down firmly with a round tool to ensure it's fully seated in its groove before buying a replacement.

Flush Pedal Cable Kit (Part #34106)

This is the "Achilles' heel" of the Style Plus. Unlike the Residence or Style II, the pedal isn't directly connected to the waste ball; it uses a steel cable.

  • The Issue: The cable can stretch, fray, or snap over time, or the plastic tensioners can fail.

  • Symptom: The pedal feels "mushy," has no resistance, or you press the pedal and nothing happens inside the bowl.

Water Valve Return Spring (Part #34110)

This spring is responsible for snapping the valve shut after you let go of the pedal.

  • The Issue: It can lose its tension or corrode.

  • Symptom: The water keeps running even after you release the foot pedal, forcing you to manually lift the pedal with your toe to stop the flow.

Flush Nozzle Kit (Part #34127)

The Style Plus uses a specific nozzle to achieve its signature "swirl" flush.

  • The Issue: Hard water scale (calcium) can clog the tiny holes in the nozzle, leading to a weak flush or "dry spots" in the bowl.

  • Symptom: Water only flows out of one side of the nozzle, or the pressure is significantly lower than it used to be.

Pro Tip:
A Style Plus must use the correct high-pressure valve—standard Style II valves will underperform or fail.

Cracked bowl? Replace the whole toilet: High white | High bone | Low white | Low bone


Thetford Aqua-Magic VI Parts

Thetford Aqua-Magic VI exploded parts diagram

The Thetford Aqua Magic VI RV Toilet took everything good about the Style II and leveled it up—taller profile, smoother operation, and better flushing performance.

The Thetford Aqua-Magic VI is a lightweight, all-plastic model often found in newer RVs. While it shares some DNA with the Aqua-Magic V, it introduces a few specific components—notably a cable-driven system—that change its maintenance profile.

Open Interactive Diagram Shop All VI Parts

Most-Replaced VI Parts

Thetford 31705 Water Module Assembly
Water Module Assembly

#31705
Fixes: Leaks, won’t shut off
Shop
Thetford 31708 Blade Seal
Blade Seal

#31708
Fixes: Bowl won’t hold water
Shop
Thetford 31711 Foot Cable Kit
Foot Cable Kit

#31711
Fixes: Pedal limp, ball won’t open
Shop
Thetford 36528 Water Module Link
Water Module Link

#36528
Fixes: Ball opens, no water
Shop
Thetford 33239 Closet Flange Seal
Closet Flange Seal

#33239
Fixes: Sewer smell at floor
Shop
Repair notes: common VI problems and fixes

Water Module Assembly (Part #31705)

This is the most common failure point. The water module on the VI is a compact plastic unit that can easily develop leaks if the RV is exposed to freezing temperatures or if the internal seals fail from sediment.

  • The Issue: Cracking or internal seal failure.

  • Symptom: Water leaking from the back of the toilet or the water not shutting off completely after the pedal is released.

Blade Seal (Part #31708)

This is the flat rubber seal that maintains the water barrier in the bowl.

  • The Issue: Like all gravity-flush toilets, this seal eventually dries out or gets "gunked up," preventing the bowl from holding water.

  • Maintenance Tip: Unlike older models, the VI seal is relatively easy to swap, but you should always use silicone-based lubricant to prevent the new seal from sticking to the plastic blade.

Foot Cable Kit (Part #31711)

The Aqua-Magic VI uses a specific steel cable to connect the foot pedal to the flush mechanism.

  • The Issue: The cable can stretch or snap over time, especially if the waste ball becomes stiff and requires more "muscle" to move.

  • Symptom: The pedal feels completely limp, or you press it and the water flows but the waste ball doesn't open.

Water Module Link (Part #36528)

This is a small but critical linkage that connects the foot pedal movement to the water valve.

  • The Issue: This piece is under constant tension. It can snap if the pedal is "snapped" back or stepped on too hard.

  • Symptom: The waste ball opens (indicating the cable is fine), but no water enters the bowl.

Closet Flange Seal (Part #33239)

Because the Aqua-Magic VI is a very light plastic toilet, it is more prone to shifting if the floor bolts aren't perfectly tight.

  • The Issue: Movement of the base compresses the foam flange seal unevenly.

  • Symptom: Sewer smells in the bathroom or liquid seeping out from under the plastic base on the floor.

Many VI parts look similar to Style II parts—but they’re often not identical. Diagrams save wallets.

Cracked bowl? Replace the whole toilet: High white | High parchment | Low white | Low parchment


Thetford Bravura Parts

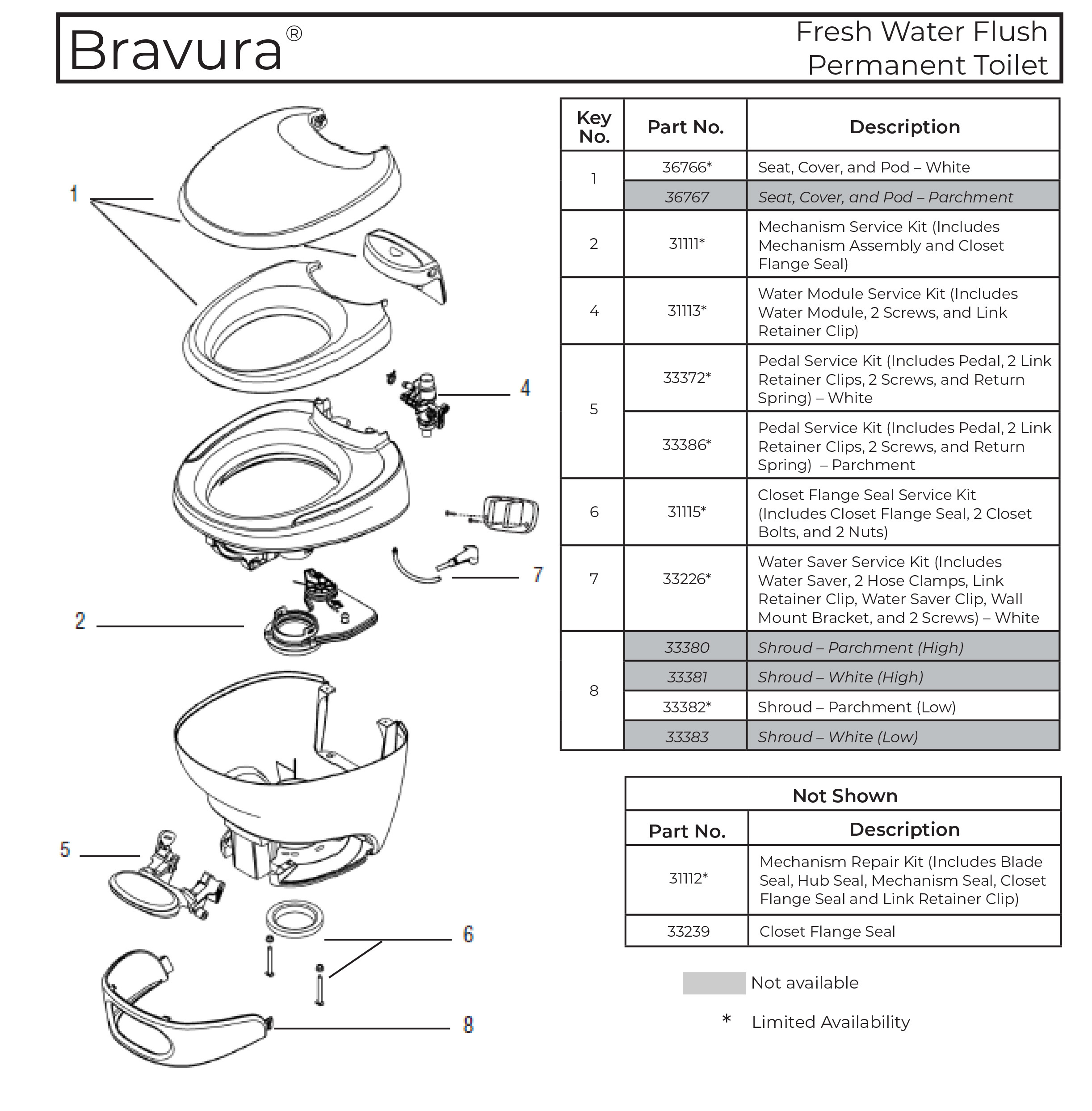

Thetford Bravura exploded parts diagram

The Thetford Bravura RV Toilet is the heavyweight of Thetford’s lineup—full ceramic bowl, high profile, powerful gravity flush.

The Thetford Aqua-Magic Bravura is known for its sleek, "one-piece" appearance, but that aesthetic comes with a unique shroud and pedal design that makes maintenance slightly different from the more open-frame models like the Style II or Residence.

Open Interactive Diagram Shop All Bravura Parts

Heads up, Bravura owners: Thetford now lists most Bravura service kits as limited availability. If a part is on its last legs, order it while it’s still in stock.

Most-Replaced Bravura Parts

Thetford 31113 Water Module Service Kit
Water Module Service Kit

#31113
Fixes: Leaks, won’t shut off
Shop
Thetford 31112 Flush Mechanism Repair Kit
Flush Mechanism Repair Kit

#31112
Fixes: Bowl won’t hold water
Shop
Thetford 31111 Flush Mechanism Service Kit
Flush Mechanism Service Kit

#31111
Fixes: Full mechanism rebuild
Shop
Thetford 33372 Pedal Service Kit (White)
Pedal Service Kit (White)

#33372
Fixes: Broken or limp pedal
Shop
Thetford 31115 Closet Flange Seal Kit
Closet Flange Seal Kit

#31115
Fixes: Sewer smell at floor
Shop
Repair notes: common Bravura problems and fixes

Water Module Assembly (Part #31113)

The Bravura uses a specific "water module" rather than a standard valve.

  • The Issue: This is the most frequently replaced mechanical part. Like the others, it is highly sensitive to frost. If it cracks, it will leak constantly, even when the toilet isn't being flushed.

  • Symptom: Fresh water pooling on the floor behind the shroud or a "trickle" that won't stop entering the bowl.

Blade Seal (Part #31112 / Kit #31111)

The seal on the Bravura is part of a "Mechanism Repair Kit."

  • The Issue: Because the Bravura has a very deep bowl, the seal is under more hydrostatic pressure than in shallower models. It tends to accumulate calcium buildup more quickly.

  • Maintenance Tip: The Bravura is famous for being difficult to clean around the seal because of the shroud. If it stops holding water, try using a specialized seal lubricant before pulling the whole unit apart.

Foot Pedal Assembly (Part #33372 - White / #33386 - Parchment)

The pedal on the Bravura is a large, front-facing lever.

  • The Issue: The Bravura uses a internal spring and linkage system that can become disconnected or "jammed" by debris that falls behind the shroud.

  • Symptom: The pedal feels "loose" or won't spring back up to the top position.

Closet Flange Seal (Part #31115)

The Bravura is a heavy unit compared to the Aqua-Magic VI.

  • The Issue: If the RV floor has any flex, the Bravura's weight can cause the mounting bolts to "wallop" out the flange seal over time.

  • Symptom: Sewer odors that won't go away even after cleaning the black tank and lubricating the bowl seal.

Reality Check:
The Bravura’s valves and seals are larger and higher flow than Aqua Magic models. Using mismatched parts = leaks + weak flush + campground regret.

Cracked bowl? Replace the whole toilet: High white


Fixing More Than One Thing? Do It in One Trip.

If the bowl won’t hold water and water is leaking behind the toilet, replace the seal and the water valve together. Both are wear items that tend to fail around the same age. If the toilet comes off the floor, put in a fresh closet flange seal while you’re there. Orders over $99 ship free.

Putting the rig away for the season? Freeze damage is the top killer of Thetford water valves, so read how to winterize your RV’s sanitation system.

Why Using Thetford Parts Diagrams Saves You Time, Money & Sanity

Ordering blindly leads to:

  • Wrong parts
  • Restocking fees
  • Shipping delays
  • Still broken toilets

Using model-specific Thetford exploded diagrams lets you:

✅ Match the exact OEM part
✅ Avoid incompatible aftermarket replacements
✅ Fix leaks, weak flushes, and pedal failures correctly
✅ Restore your RV bathroom with confidence


Find Thetford RV Toilet Parts the Smart Way

At rvtoiletparts.com, we stock:

  • OEM Thetford replacement parts
  • Model-specific Aqua Magic & Bravura components
  • Hard-to-find & discontinued Thetford items
  • Complete kits for seals, valves, pedals, and springs

No guesswork. No knockoffs. No flushing failures.


Frequently Asked Questions

Do the Thetford Residence and Style II use the same parts?

Yes, most of them. The waste ball seal, water valve, drive arm kit, vacuum breaker, nozzles, pedals, seats and closet bolt kit are shared. Compare both on the Residence and Style II interactive diagrams.

Can I use a Style II water valve in a Style Plus?

No. The Style Plus uses its own valve with a drive arm (34100). A Style II valve will underperform or fail.

Why won’t my Thetford toilet hold water?

It’s almost always the waste ball or blade seal. Clean it and condition it first; if it still leaks, replace it with the seal for your model from the chart above.

How do I find my Thetford model?

Check the label on the back of the toilet, or follow our guide to spotting your RV toilet model. Older toilet? See our Thetford parts diagrams for discontinued models.

Need Help Matching a Thetford Part?

Send us your model number and a photo of the problem, and we’ll help you nail it on the first order. No guesswork. No knockoffs. No flushing failures.

Contact Us Call 248-993-0724 All Parts Diagrams
